992267 (Pro-Turn 260) - Gravely Pro-Turn 60" Zero-Turn Mower, Kohler ZT (SN: 062000 - 069999) Transaxle Drive Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kohler ZT

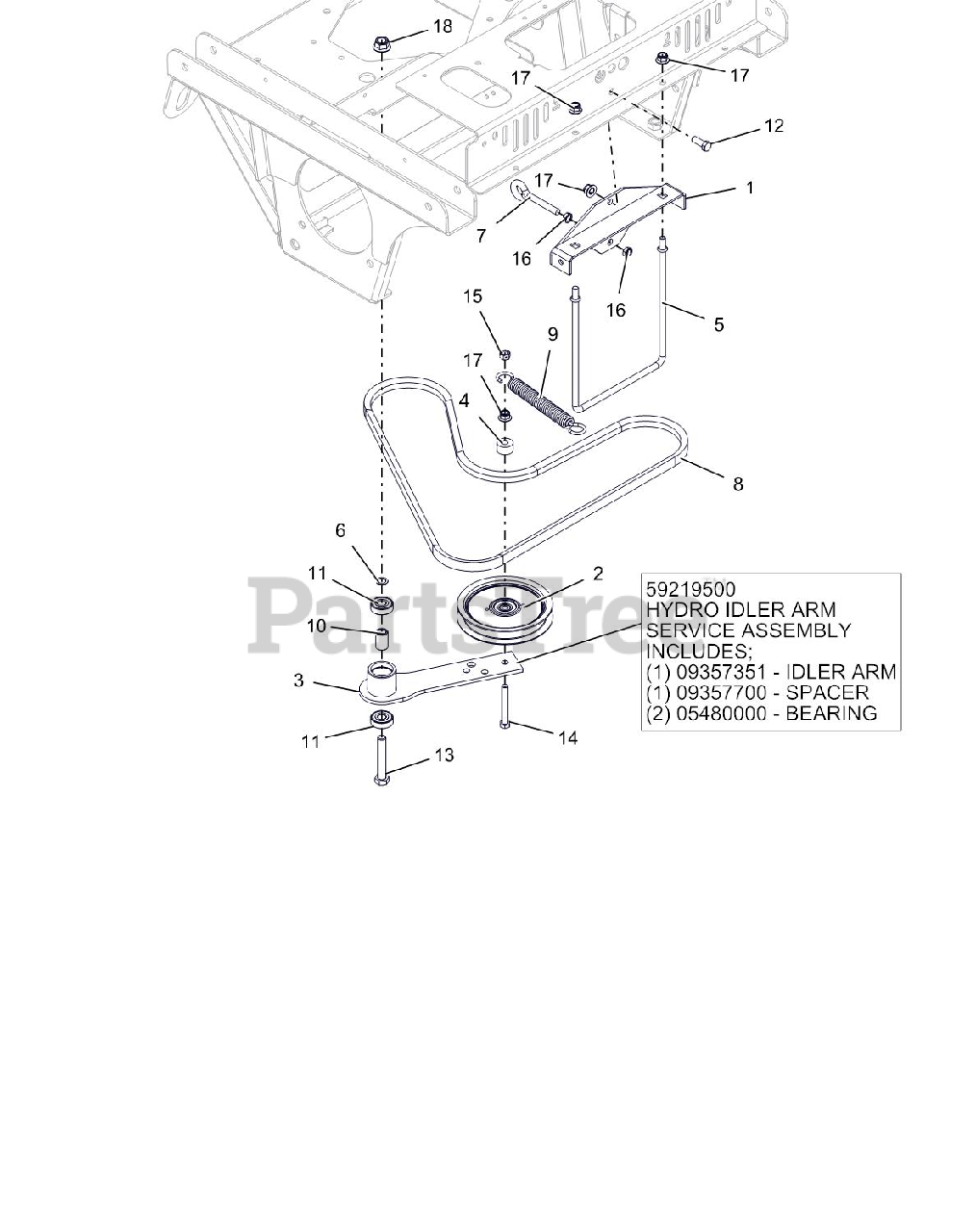

Transaxle Drive Parts Diagram

  • Title

1

Gravely 03898551

SPRING ANCHOR BRKT WMT - BLACK

$22.99

$

Usually ships in 4-12 days

0

2

Gravely 07334500

IDLER, FLAT-5.00X.75

$85.99

$

In Stock, Qty 18

0

3

Gravely 05480000

BRG-BALL .50X1.38X.438 SEALED

Note: SERVICE PART

$15.99

$

In Stock, Qty 20+

0

3

Gravely 09357700

SPACER .510 X .75 X 1.1485

Note: SERVICE PART

$5.49

$

In Stock, Qty 20+

0

3

Gravely 59219500

KIT, HYDRO IDLER ARM PT200/400

Note: SERVICE PART

$111.99

$

Usually ships in 4-12 days

0

3

Gravely 09357351

HYDRO DRIVE IDLER ARM WMT- BLK
(Superseded to 09357300)

$54.99

$

Usually ships in 4-12 days

0

3

Gravely 09357351

HYDRO DRIVE IDLER ARM WMT- BLK
(Superseded to 09357300)

Note: SERVICE PART

$54.99

$

Usually ships in 4-12 days

0

4

Gravely 03035100

SPACER .390X1.000X.562

$9.99

$

In Stock, Qty 20+

0

5

Gravely 03975800

ROD, BRAKE MTG

$24.99

$

Usually ships in 4-12 days

0

6

Gravely 06400015

WASHER, .500X.750X.020 THRUST

$1.49

$

In Stock, Qty 20+

0

7

Gravely 07030000

BLT-EYE .375-16X2.50 YWZC

$8.49

$

In Stock, Qty 10

0

8

Gravely 07200515

V-BELT, COGGED B-RAW EDGE

$59.99

$

In Stock, Qty 12

0

9

Gravely 08300507

SPRING, EXTENSION
(Superseded to 08300728)

$28.99

$

In Stock, Qty 20+

0

10

Gravely 09357700

SPACER .510 X .75 X 1.1485

$5.49

$

In Stock, Qty 20+

0

11

Gravely 05408000

BRG-BALL .500X1.38X.437

$6.99

$

In Stock, Qty 20+

0

12

Gravely 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 05959900

@BLT-HEX .50-13X3.00 GR5 YWZC
(Superseded to 05901737)

$5.49

$

In Stock, Qty 8

0

14

Gravely 05961400

@BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$4.99

$

In Stock, Qty 20+

0

15

Gravely 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

18

Gravely 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0
