992267 (Pro-Turn 260) - Gravely Pro-Turn 60" Zero-Turn Mower, Kohler ZT (SN: 082000 - 089999) Deck Lift - Right Hand Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kohler ZT

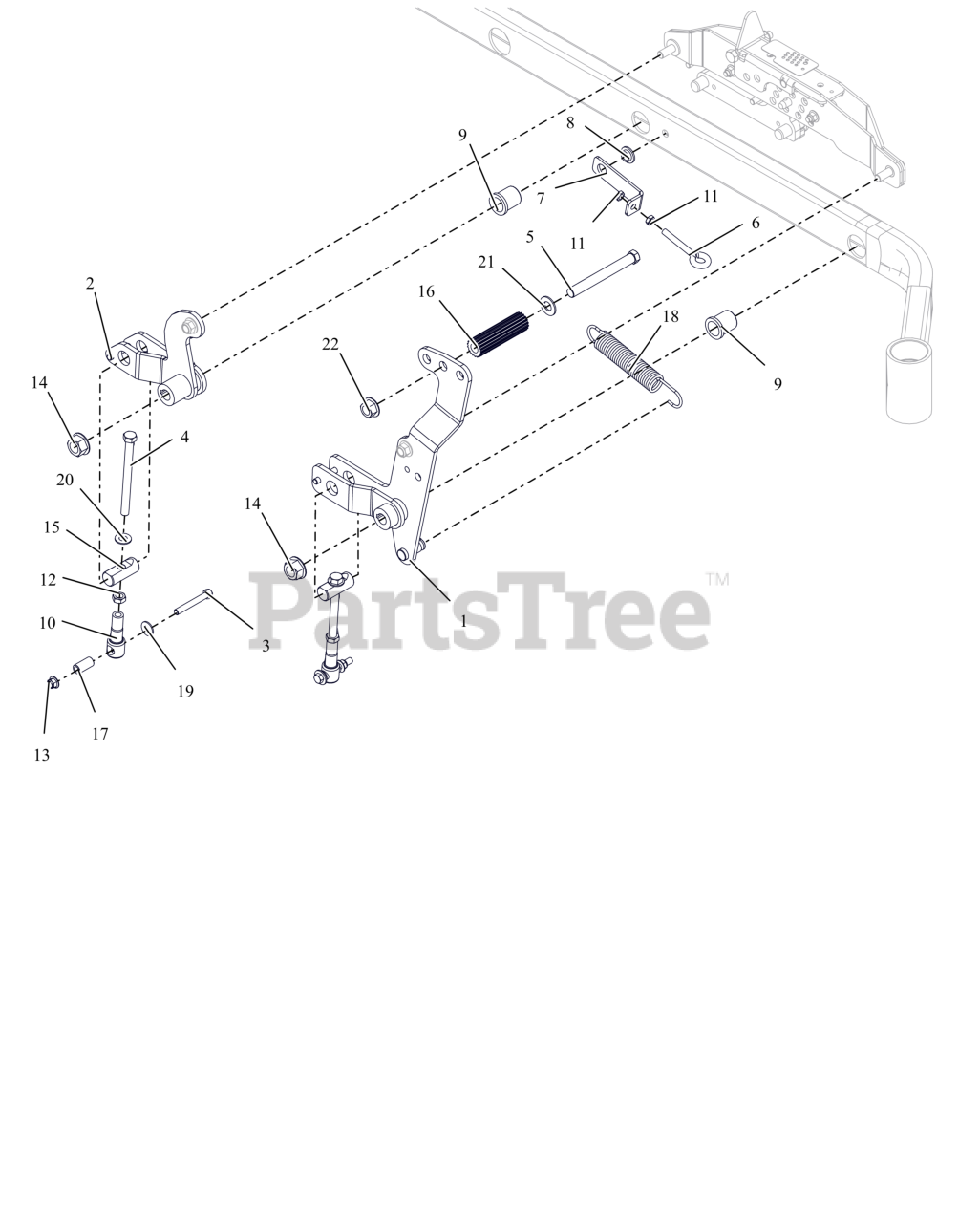

Deck Lift - Right Hand Parts Diagram

  • Title

1

Gravely 04896967

FRT RH DECK LIFT ARM WMT- LF

$158.99

$

Usually ships in 4-12 days

0

2

Gravely 04896767

REAR RH DECK LIFT ARM WMT- LF

$122.99

$

Usually ships in 4-12 days

0

3

Gravely 05901813

BLT, HEX .38-16X2.75 G8 ZCC

$1.99

$

In Stock, Qty 20+

0

4

Gravely 05901924

BLT, HEX .50-13X6.00S G5 ZCC

$7.49

$

Usually ships in 4-12 days

0

5

Gravely 05901730

BLT, HEX .62-11X5.50 G5 FBP

$7.49

$

Usually ships in 4-12 days

0

6

Gravely 07030000

BLT-EYE .375-16X2.50 YWZC

$8.49

$

In Stock, Qty 10

0

7

Gravely 04777353

SPRING ANCHOR BRACKET - RED

$21.99

$

Usually ships in 4-12 days

0

8

Gravely 03989100

BSHG-FLG .515X.750X.310X1.120

$3.99

$

In Stock, Qty 19

0

9

Gravely 05500934

BSHG-FLG 1.00X1.25X1.50X1.50

$7.99

$

In Stock, Qty 20+

0

10

Gravely 05081400

LINK, DECK LIFT FORMED

$16.99

$

In Stock, Qty 5

0

11

Gravely 06500910

NUT-JAM .375-16 G2 ZCC

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06500911

NUT-JAM .500-13 G2 ZCC

$1.99

$

In Stock, Qty 20+

0

13

Gravely 06500726

NUT,NYL-FLG .38-16 GF ZCC

$1.99

$

In Stock, Qty 20+

0

14

Gravely 06500931

NUT,FLG-TOP LK .625-11 FBP

$3.99

$

Usually ships in 4-12 days

0

15

Gravely 05149500

PIN, DECK LIFT

$17.99

$

In Stock, Qty 11

0

16

Gravely 05120951

ROD, FOOT PEDAL (BLACK)

$23.99

$

Usually ships in 4-12 days

0

17

Gravely 04895200

SPACER, DECK LEVELING

$2.99

$

In Stock, Qty 6

0

18

Gravely 08319000

SG-TENS .162X1.25X8.25 WLD 25

$34.99

$

In Stock, Qty 17

0

19

Gravely 06401008

WSHR,FLT .438X1.00X.083 ZCC

$1.99

$

In Stock, Qty 20+

0

20

Gravely 06401116

WSHR, FLT .557X1.040X.102 ZCC

$1.99

$

In Stock, Qty 20+

0

21

Gravely 06401039

WSHRFLT 5/8SAE CARBHARD FBP

$3.99

$

Usually ships in 4-12 days

0

22

Gravely 06500835

NUT,FLG-TOP LK .625-11 FBP

$7.49

$

Usually ships in 4-12 days

0
