992267 (Pro-Turn 260) - Gravely Pro-Turn 60" Zero-Turn Mower, Kohler ZT (SN: 082000 - 089999) Parking Brake Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kohler ZT

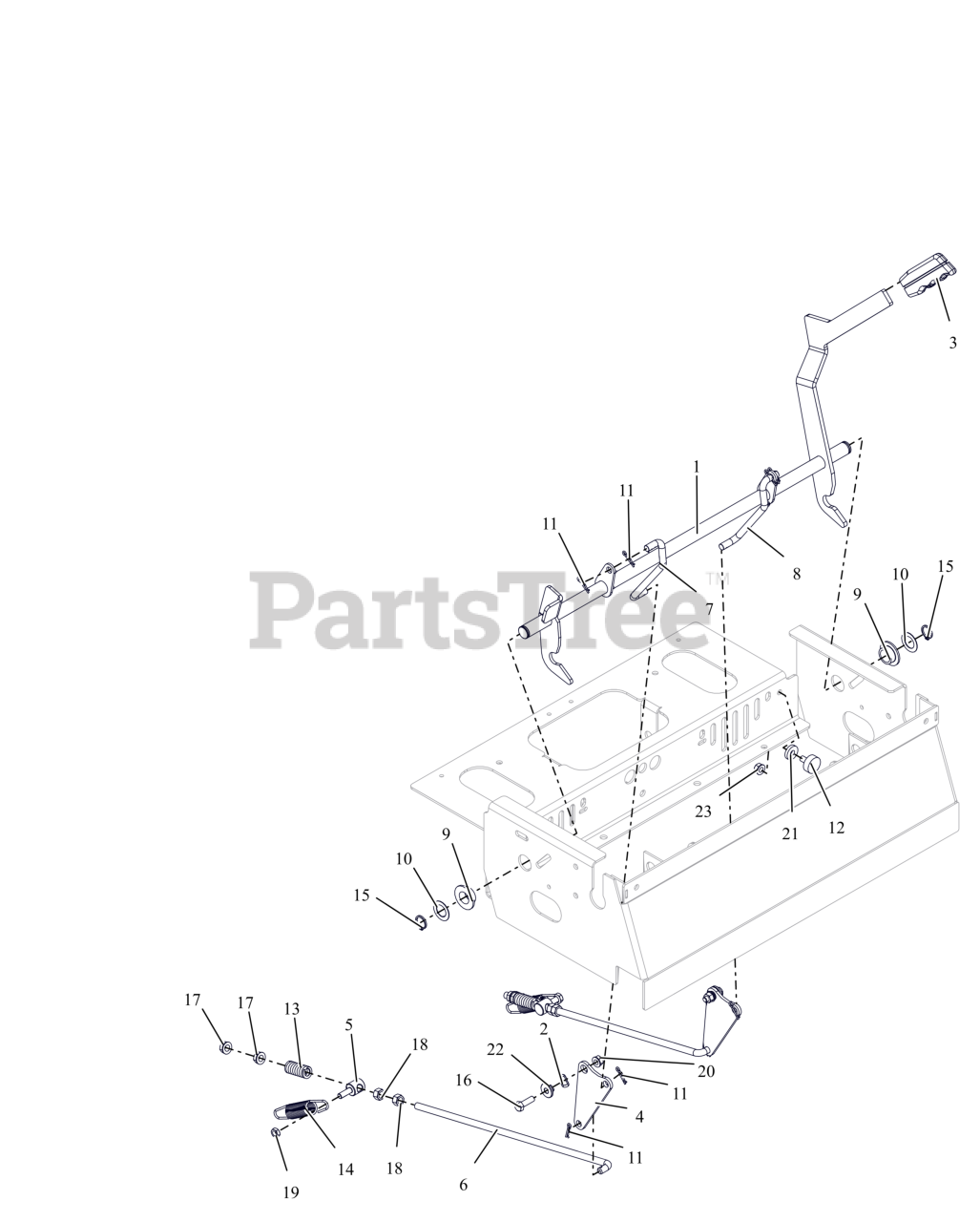

Parking Brake Parts Diagram

  • Title

1

Gravely 05254000

WLDMT, PT200/400 PARK BRAKE

$116.99

$

Usually ships in 4-12 days

0

2

Gravely 00325400

WAVE WASHER .531X.781X.125FH

$1.49

$

In Stock, Qty 20+

0

3

Gravely 03826900

GRIP, PARKING BRAKE (YELLOW)

$4.99

$

In Stock, only 2 left!

0

4

Gravely 03969451

PLATE, BRAKE PIVOT

$13.99

$

Usually ships in 4-12 days

0

5

Gravely 03969600

TRUNNION, .38-16

$18.99

$

Usually ships in 4-12 days

0

6

Gravely 03975700

ROD, BRAKE ADJ.

$29.99

$

Usually ships in 4-12 days

0

7

Gravely 04396700

LINKAGE, RH BRAKE ACTUATING

$13.99

$

Usually ships in 4-12 days

0

8

Gravely 04396800

LINKAGE, LH BRAKE ACTUATING

$13.99

$

Usually ships in 4-12 days

0

9

Gravely 05525200

BSHG-FLG .762X1.48X.44 NYL
(Superseded to 05501517)

$2.99

$

Usually ships in 4-12 days

0

10

Gravely 06413400

WSHR-HDND-THRST .758X1.23X.031

$3.49

$

Usually ships in 4-12 days

0

11

Gravely 06700223

PIN, HAIR #225 .072X1.09

$0.99

$

In Stock, only 4 left!

0

12

Gravely 07533600

BUMPER, RUBBER

$12.99

$

In Stock, only 3 left!

0

13

Gravely 08300027

SG-COMP .142 X .710 X 1.75

$9.99

$

In Stock, Qty 10

0

14

Gravely 08300610

SPRING-TENS .105X.850X.4.880

$10.99

$

Usually ships in 4-12 days

0

15

Gravely 05714600

RG-RTNG-EXT .689X.078

$2.99

$

In Stock, Qty 5

0

16

Gravely 05901701

BLT,HEX .31-18X1.00 G5 ZCC

$1.99

$

In Stock, only 4 left!

0

17

Gravely 06500735

NUT, SPNLK-FLG .38-16 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

18

Gravely 06500917

NUT-STD .375-16 G2 ZCC

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06500913

NUT-LK-CTR-JAM .312-18 GB ZCC

$1.49

$

In Stock, Qty 7

0

20

Gravely 06500904

NUT-LK-TOP-FLG .312-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06401103

WSHR, FLT .328X.870X.179 ZCC

$3.49

$

In Stock, Qty 20+

0

22

Gravely 05514800

BSHG-FLG .32X.500X.344X.880

$2.49

$

In Stock, Qty 20+

0

23

Gravely 06500815

NUT,SPNLK-FLG .31-18 G5 ZCC

$1.99

$

In Stock, Qty 20+

0
