992267 (Pro-Turn 260) - Gravely Pro-Turn 60" Zero-Turn Mower, Kohler ZT (SN: 090000 - 091999) Bumper Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kohler ZT

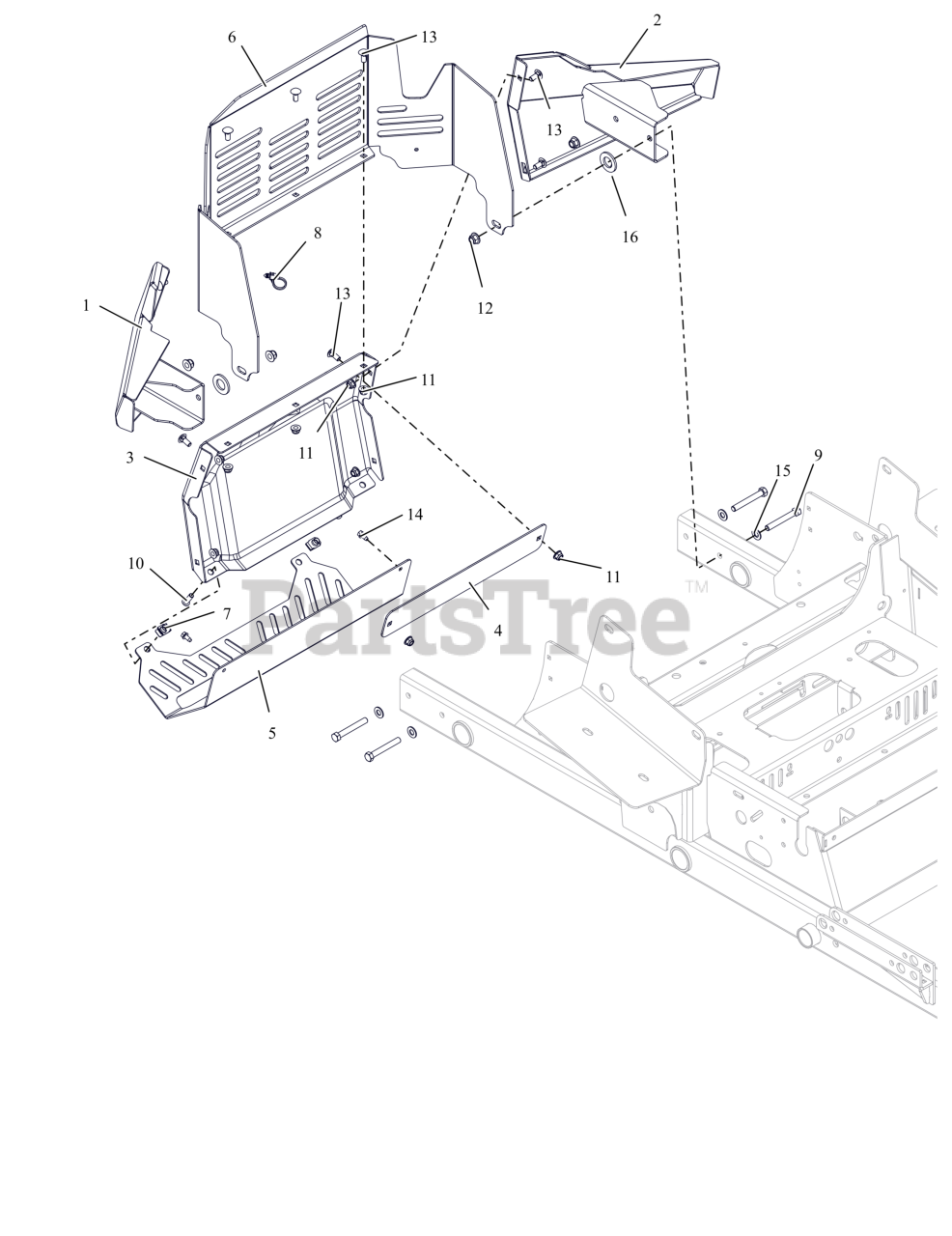

Bumper Parts Diagram

  • Title

1

Gravely 59225100

WMT,RH REAR BMPR WING W/DECAL

$79.99

$

Usually ships in 4-12 days

0

2

Gravely 59225200

WMT,LH REAR BMPR WING W/DECAL

$68.99

$

Usually ships in 4-12 days

0

3

Gravely 04863451

PT200/400 REAR BUMPER - BLACK

$91.99

$

Usually ships in 4-12 days

0

4

Gravely 04894853

BACKER PLATE - RED

$20.99

$

Usually ships in 4-12 days

0

5

Gravely 04895351

PT200/400 MUFFLER GUARD - BLK

$103.99

$

Usually ships in 4-12 days

0

6

Gravely 04962553

PT200 ENGINE GUARD - RED

$142.99

$

Usually ships in 4-12 days

0

7

Gravely 07000829

NUT-CLIP RETAINER 5/16-18X.56

$2.49

$

In Stock, only 3 left!

0

8

Gravely 07500040

CABLE TIE W/ TREE (.25 HOLE)

$3.99

$

In Stock, only 1 left!

0

9

Gravely 05901611

BLT, HEX .38-16X2.75 G5 ZCC

$3.99

$

In Stock, Qty 20+

0

10

Gravely 05901840

BLT,SHCS-BTN .31-18X1.00 ZCC

$2.49

$

In Stock, Qty 20+

0

11

Gravely 06500809

NUT,NYL-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06500726

NUT,NYL-FLG .38-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06200232

BLT,RHSN .31-18X.75 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

14

Gravely 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

15

Gravely 06401013

WSHR,FLT .406X.812X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

16

Gravely 06401140

WSHR-FL-STL 0.812X1.469X0.134 ZCC

$1.49

$

In Stock, Qty 17

0
