992267 (Pro-Turn 260) - Gravely Pro-Turn 60" Zero-Turn Mower, Kohler ZT (SN: 094000 & Above) Casters And Tires - 60" 60" Mach One, And 72" Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kohler ZT

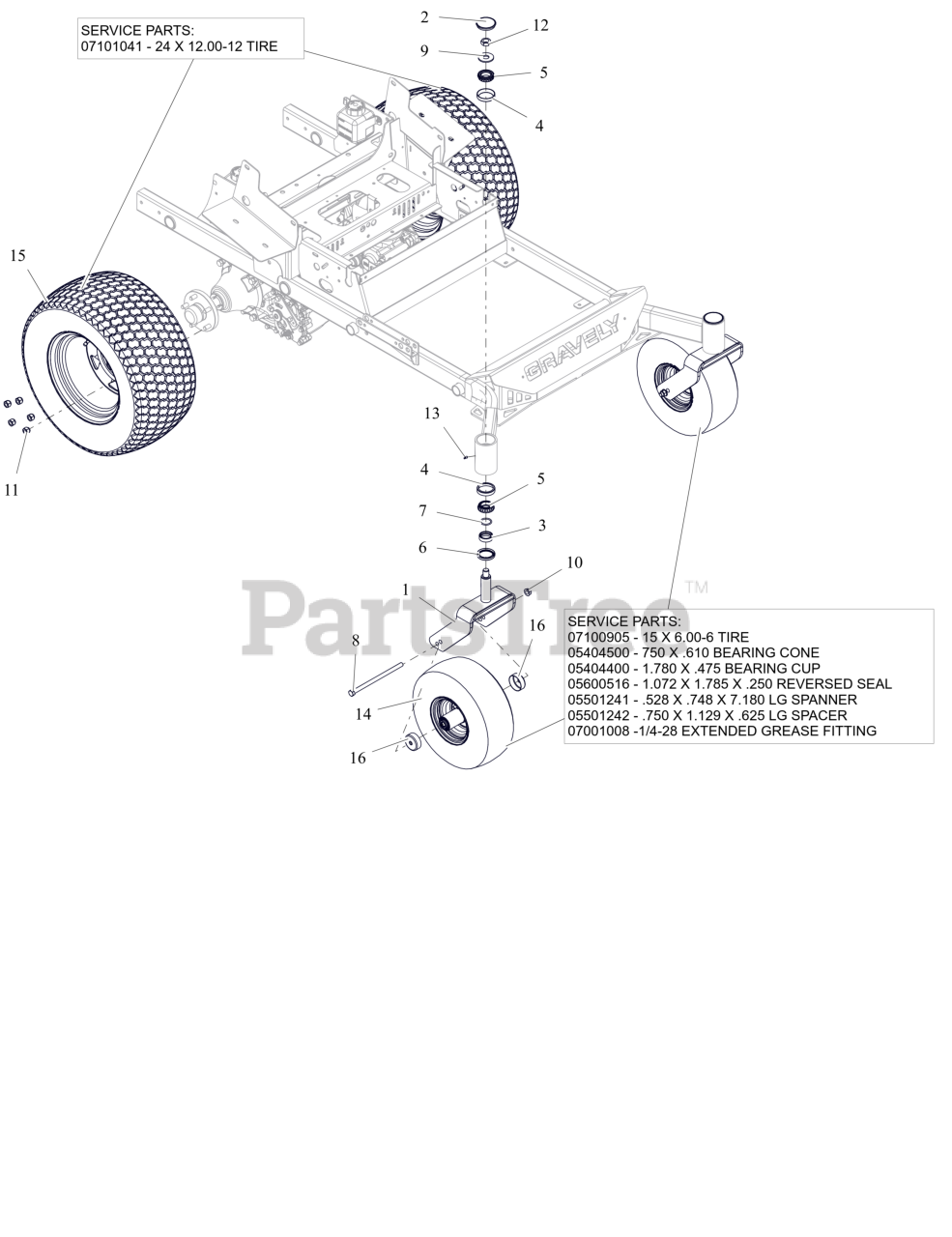

Casters And Tires - 60" 60" Mach One, And 72" Parts Diagram

  • Title

1

Gravely 03924453

CASTER FORK WMT - RED

$184.99

$

In Stock, only 2 left!

0

2

Gravely 03925900

CAP, DUST

$11.99

$

In Stock, only 4 left!

0

3

Gravely 04861500

SPCR, FRONT CASTER FORK

$14.99

$

In Stock, only 4 left!

0

4

Gravely 05404600

BRG-CUP 2.328X.465

$15.99

$

In Stock, Qty 9

0

5

Gravely 05404700

BRG-CONE 1.25X.66

$22.99

$

In Stock, Qty 20+

0

6

Gravely 05600432

SEAL, OIL 1.75 X 2.332 X .312

$12.99

$

In Stock, Qty 5

0

7

Gravely 05600515

O-RING,

$2.99

$

In Stock, Qty 7

0

8

Gravely 05901930

BLT, HEX .50-13X9.00 G5 ZCC

$11.99

$

In Stock, Qty 20+

0

9

Gravely 06401201

WSHR-FL-STL 0.812X2X0.148 ZCC

$4.99

$

In Stock, Qty 12

0

10

Gravely 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06500926

NUT, WHEEL .50-20 ZCC

$1.99

$

In Stock, Qty 20+

0

12

Gravely 06500933

NUT, JAM-TOPLOCK .750-16 ZCC

$4.99

$

In Stock, Qty 11

0

13

Gravely 07001727

FTG, .25-28 FLUSH MNT GREASE

$3.99

$

In Stock, Qty 8

0

14

Gravely 07101109

ASM, WHL/TIRE 15X6.00-6 SMOOTH

$128.99

$

In Stock, Qty 7

0

14

Gravely 07100905

TIRE, 15X6-6 SMOOTH

Note: Component Service Part

$87.99

$

In Stock, only 2 left!

0

14

Gravely 05404500

BRG-CONE .750X.61

Note: Component Service Part

$29.99

$

In Stock, only 3 left!

0

14

Gravely 05404400

BRG-CUP 1.781X.475

Note: Component Service Part

$11.99

$

In Stock, Qty 20+

0

14

Gravely 05600516

SEAL,1.072X1.785X.250 REVERSED

Note: Component Service Part

$25.99

$

In Stock, Qty 6

0

14

Gravely 05501241

SPANNER, .528X.748X7.18 LG

Note: Component Service Part

$33.99

$

In Stock, Qty 5

0

14

Gravely 05501242

SPACER, .750X1.129X.625 LG

Note: Component Service Part

$6.99

$

In Stock, Qty 20+

0

14

Gravely 07001008

GREASE FITTING 1/4-28 EXTENDED

Note: Component Service Part

$14.99

$

In Stock, only 3 left!

0

14

Gravely 07140200

TUBE 15X6-6

Note: Component Service Part

$24.99

$

Usually ships in 4-12 days

0

15

Gravely 07101119

ASM, WHL/TIRE 24X12.00-12 K500

$300.99

$

Usually ships in 4-12 days

0

15

Gravely 07101041

TIRE, 24 X 12.00-12

Note: Component Service Part

$250.99

$

Usually ships in 4-12 days

0

16

Gravely 09357800

SHIELD, WHEEL BEARING

$12.99

$

In Stock, Qty 20+

0
