992269 (Pro-Turn 260) - Gravely Pro-Turn 60" Zero-Turn Mower, Kawasaki FX (SN: 062000 - 069999) Engine - Kawasaki FX850 Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kawasaki FX

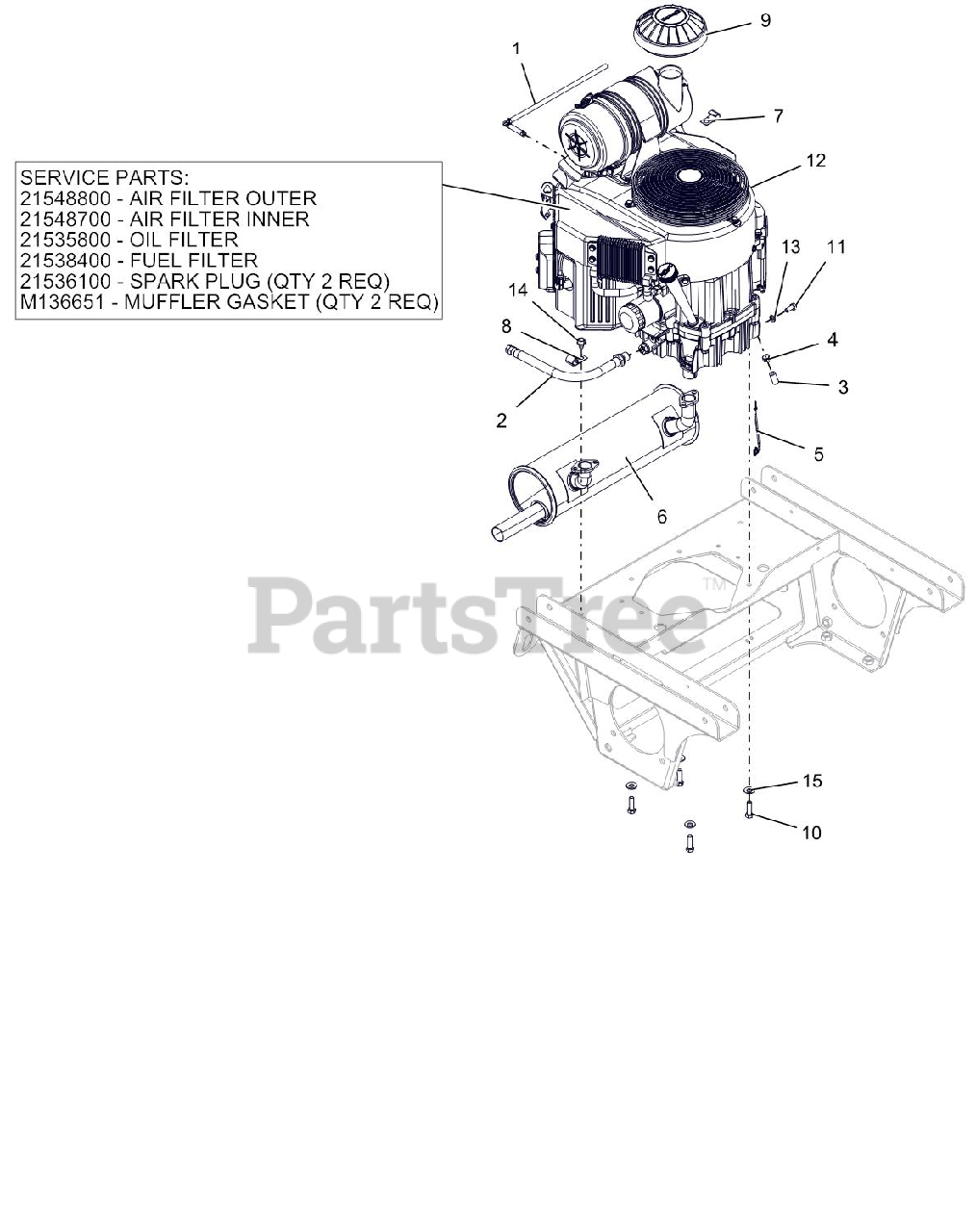

Engine - Kawasaki FX850 Parts Diagram

  • Title

1

Gravely 04981600

ASM, VAPOR LINE

$59.99

$

Usually ships in 4-12 days

0

2

Gravely 07001730

HOSE, OIL DRAIN

$19.99

$

Usually ships in 4-12 days

0

3

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$0.99

$

In Stock, Qty 20+

0

4

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 7

0

5

Gravely 03286700

LEAD - STARTER SOLENOID

$9.49

$

In Stock, only 1 left!

0

6

Gravely 03911000

MUFFLER, 27-31 KAW
(Superseded to 09386000)

$168.99

$

In Stock, only 1 left!

0

7

Gravely 06909400

J-CLAMP

$3.49

$

In Stock, Qty 11

0

8

Gravely 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

9

Gravely 09408700

CAP, AIR CLEANER INTAKE (2")

$56.99

$

In Stock, only 1 left!

0

10

Gravely 05901522

BLT-HEX.38-16X1.25 G5YZ NYTORQ
(Superseded to 05901808)

$1.99

$

In Stock, Qty 5

0

11

Gravely 05973300

@BLT-HEX M8-1.25X20 YWZC
(Superseded to 05901628)

$1.49

$

Usually ships in 4-12 days

0

12

Gravely 21535800

FILTER,OIL - KAW
(Superseded to 49065-0724)

Note: SERVICE PART

$18.99

$

In Stock, Qty 20+

0

12

Gravely 21536100

PLUG, SPARK

Note: SERVICE PART (QTY 2 REQUIRED)

$3.49

$

In Stock, Qty 20+

0

12

Gravely 21548800

FILTER, OUTER

Note: SERVICE PART

$27.99

$

In Stock, Qty 20+

0

12

Gravely 21548700

FILTER, INNER - KAW

Note: SERVICE PART

$27.99

$

In Stock, Qty 20+

0

12

Gravely 08200724

ENGINE, KAWASAKI FX850

$

$

Not available

12

Gravely M136651

GASKET, MUFFLER #
(Superseded to 00191627)

Note: SERVICE PART (QTY 2 REQUIRED)

$7.99

$

In Stock, only 4 left!

0

12

Gravely 21538400

FUEL FILTER - KAWASAKI
(Superseded to 21573800)

Note: SERVICE PART

$12.99

$

In Stock, Qty 16

0

13

Gravely 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, only 4 left!

0

15

Gravely 06400927

WASHER, 3/8" SPRING DISC

$3.49

$

Usually ships in 4-12 days

0
