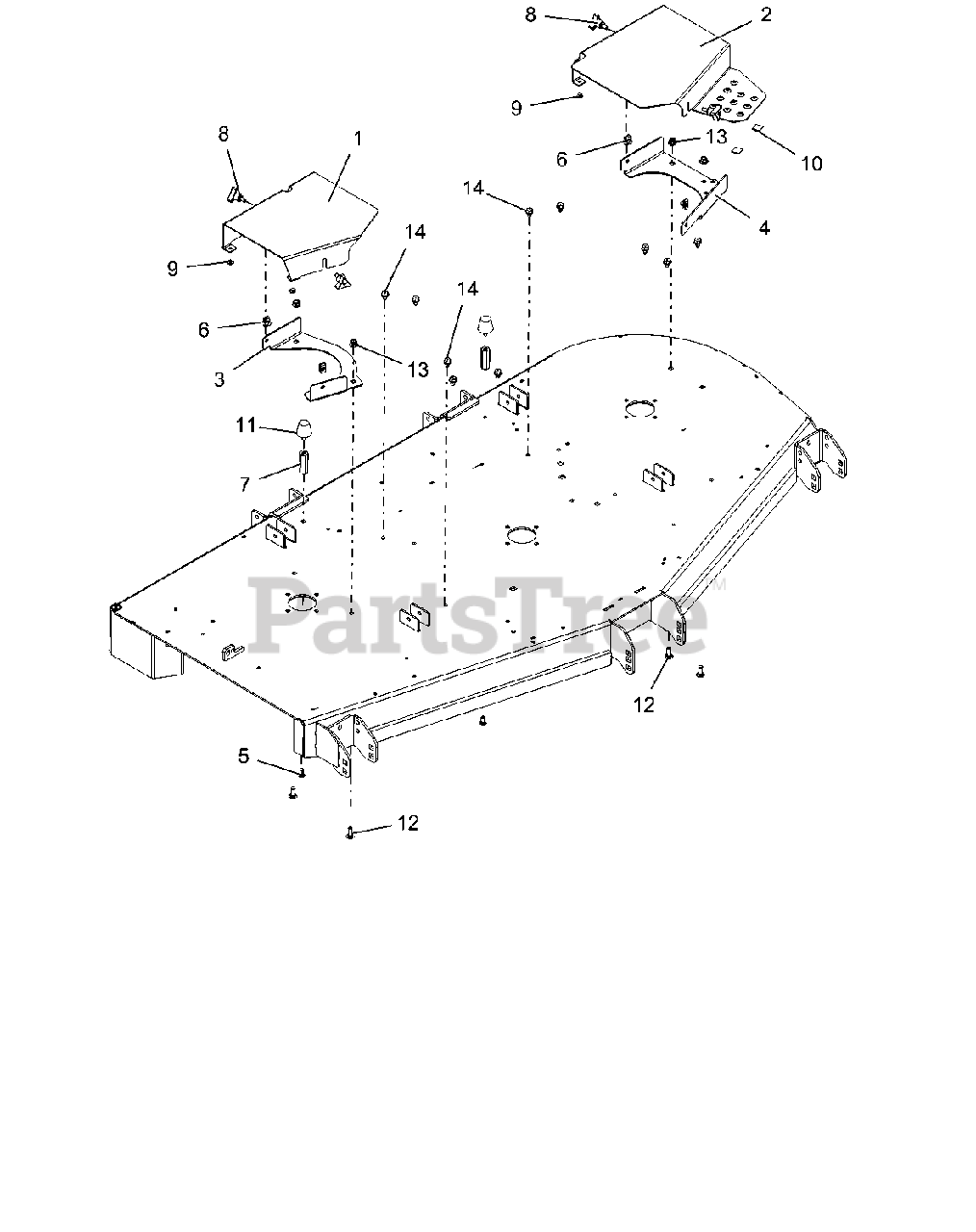

992270 (Pro-Turn 272) - Gravely Pro-Turn 72" Zero-Turn Mower, Kawasaki FX (SN: 050000 - 050999) Belt Covers - 72" Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Kawasaki FX

Belt Covers - 72" Parts Diagram

  • Title

1

Gravely 04899653

GUARD, RH PT 400/200 BELT (RED)

$56.99

$

Usually ships in 4-12 days

0

2

Gravely 04953653

GUARD, LH PT400/200 BELT

$109.99

$

Usually ships in 4-12 days

0

3

Gravely 04969253

BRKT, BELT GUARD RH MOUNTING (RED)

$42.99

$

Usually ships in 4-12 days

0

4

Gravely 04969353

BRKT, BELT GUARD LH (RED)

$43.99

$

In Stock, only 1 left!

0

5

Gravely 06200002

BLT, RDHDSQNK .31-18X.75 LOCTITE
(Superseded to 06200425)

$3.99

$

In Stock, Qty 12

0

6

Gravely 07000829

NUT-CLIP RETAINER 5/16-18X.56

$2.49

$

In Stock, only 1 left!

0

7

Gravely 07001630

NUT, .31-18 X 2.25 LG COUPLING

$32.99

$

Usually ships in 4-12 days

0

8

Gravely 07500008

KNOB, WING STUD .312-18X.75

$5.99

$

In Stock, Qty 9

0

9

Gravely 07503100

BUMPER GROMMET .125 X .25 REV

$3.49

$

In Stock, only 2 left!

0

10

Gravely 07525100

STOP,

$2.49

$

In Stock, only 3 left!

0

11

Gravely 07533000

BUMPER, RUBBER CONE STUD MOUNT

$14.99

$

In Stock, only 2 left!

0

12

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5 YWZC
(Superseded to 06200313)

$2.49

$

In Stock, Qty 19

0

13

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, only 4 left!

0
