992270 (Pro-Turn 272) - Gravely Pro-Turn 72" Zero-Turn Mower, Kawasaki FX (SN: 050000 - 050999) Fuel Tanks Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Kawasaki FX

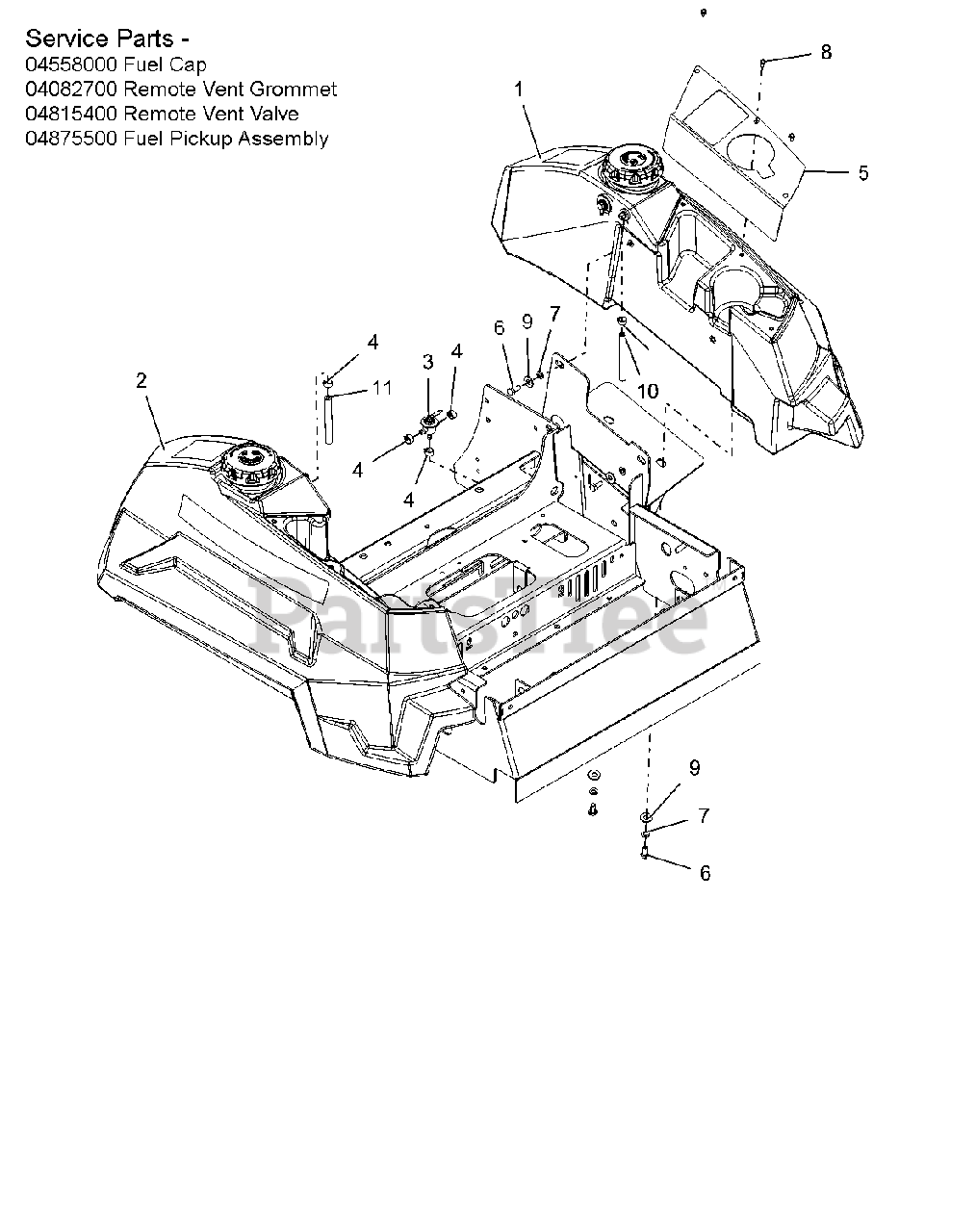

Fuel Tanks Parts Diagram

  • Title

1

Gravely 04893500

ASSY-LH, PT200 FUEL TANK
(Superseded to 59226600)

$568.99

$

Usually ships in 4-12 days

0

1

Gravely 04082700

REMOTE VENT GROMMET

Note: SERVICE PART

$3.99

$

In Stock, Qty 20+

0

1

Gravely 04558000

FUEL CAP
(Superseded to 09190300)

Note: SERVICE PART

$33.99

$

In Stock, only 1 left!

0

1

Gravely 04815400

REMOTE VENT VALVE

Note: SERVICE PART

$19.99

$

In Stock, Qty 5

0

1

Gravely 04875500

FUEL PICKUP ASSEMBLY

Note: SERVICE PART

$14.99

$

In Stock, only 1 left!

0

2

Gravely 04893600

ASSY-RH, PT200, FUEL TANK
(Superseded to 59226700)

$478.99

$

In Stock, only 1 left!

0

2

Gravely 04558000

FUEL CAP
(Superseded to 09190300)

Note: SERVICE PART

$33.99

$

In Stock, only 1 left!

0

2

Gravely 04815400

REMOTE VENT VALVE

Note: SERVICE PART

$19.99

$

In Stock, Qty 5

0

2

Gravely 04875500

FUEL PICKUP ASSEMBLY

Note: SERVICE PART

$14.99

$

In Stock, only 1 left!

0

2

Gravely 04082700

REMOTE VENT GROMMET

Note: SERVICE PART

$3.99

$

In Stock, Qty 20+

0

3

Gravely 09233600

VALVE, FUEL
(Superseded to 09164400)

$53.99

$

In Stock, only 3 left!

0

4

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 7

0

5

Gravely 04895053

PLATE, CUP HOLDER/POCKET (RED)

$43.99

$

Usually ships in 4-12 days

0

6

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 16

0

7

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 06100211

SCR-MCH 10-24X.38 HWHSTAINLESS

$2.99

$

In Stock, Qty 9

0

9

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 14

0

10

Gravely 03278100

.25 LOW-PERM GAS HOSE 19.00" LG - LH TANK TO VALVE

$0.99

$

In Stock, Qty 20+

0

11

Gravely 03278100

.25 LOW-PERM GAS HOSE 32.00" LG - LH TANK TO VALVE

$0.99

$

In Stock, Qty 20+

0
