992270 (Pro-Turn 272) - Gravely Pro-Turn 72" Zero-Turn Mower, Kawasaki FX (SN: 090000 - 091999) Frame - 72 and 60 Mach One Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Kawasaki FX

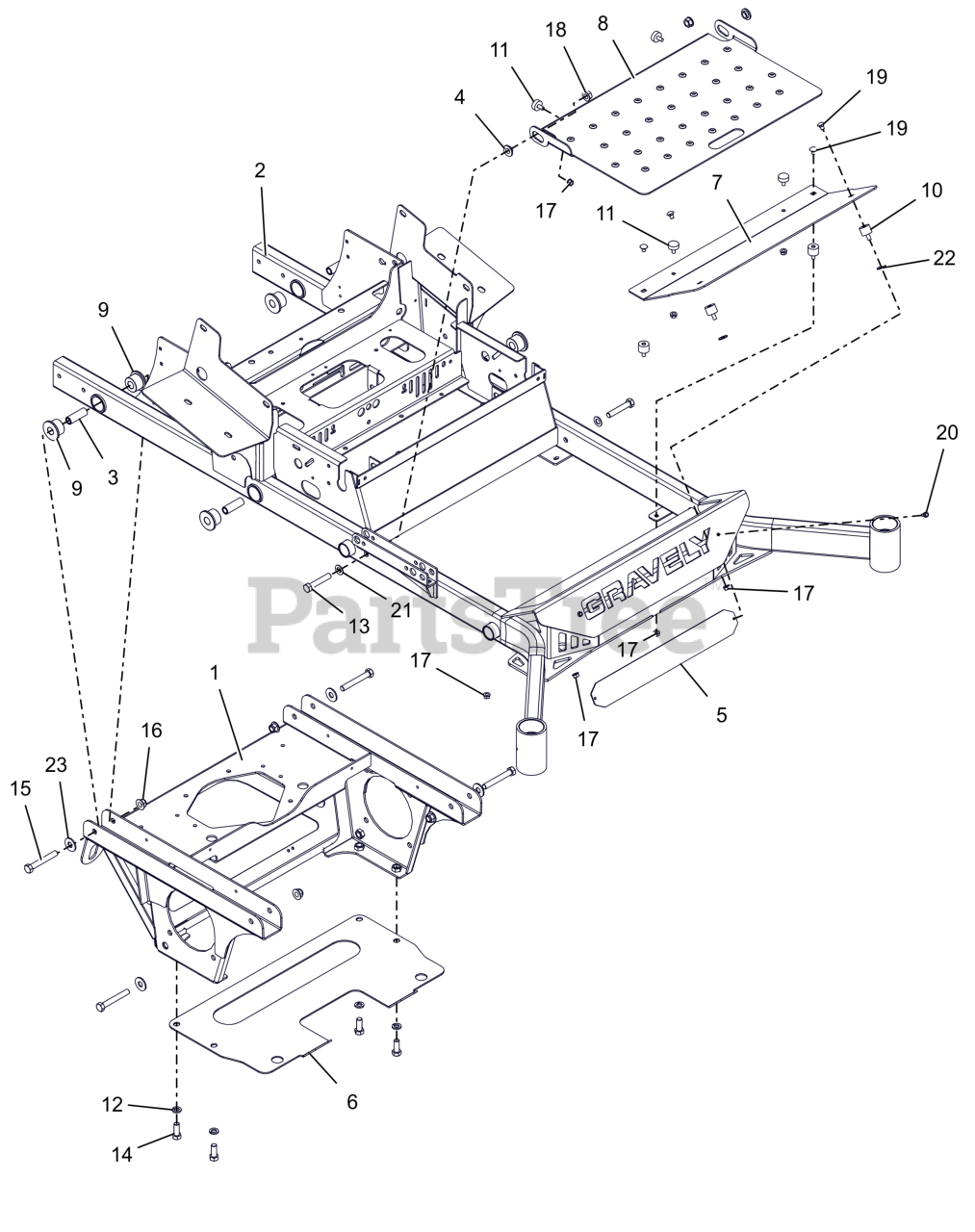

Frame - 72 and 60 Mach One Parts Diagram

  • Title

1

Gravely 03855553

PT200/400 AXLE/ENG FRM WMT-RED

$619.99

$

Usually ships in 4-12 days

0

2

Gravely 59223700

72" PT200/400 FRAME W/DECALS

$1793.99

$

Usually ships in 4-12 days

0

3

Gravely 03985600

BSHG-SLV .50X.75X2.23

$9.99

$

Usually ships in 4-12 days

0

4

Gravely 03989100

BSHG-FLG .515X.750X.310X1.120

$3.99

$

In Stock, Qty 19

0

5

Gravely 04386551

BUMPER LOGO BACKING PLATE -BLK

$10.99

$

Usually ships in 4-12 days

0

6

Gravely 04524553

PLATE-TRANSMISSION SKID

$81.99

$

Usually ships in 4-12 days

0

7

Gravely 05286453

FOOTREST, (RED)

$84.99

$

Usually ships in 4-12 days

0

8

Gravely 59222100

INSPECTION PANEL W/SAFE DECAL

$224.99

$

Usually ships in 4-12 days

0

9

Gravely 05500924

BSHG-FLG .75X1.51X1.13X2.0 URE

$11.99

$

Usually ships in 4-12 days

0

10

Gravely 07500214

BUMPER,STUD MNTD W/FEMALE INSR

$21.99

$

Usually ships in 4-12 days

0

11

Gravely 07533600

BUMPER, RUBBER

$12.99

$

In Stock, only 3 left!

0

12

Gravely 06300115

WSHR,LK-REG .500X.125 ZCC

$1.49

$

In Stock, Qty 10

0

13

Gravely 05901720

BLT,HEX .50-13X2.75 G5 ZCC

$5.49

$

Usually ships in 4-12 days

0

14

Gravely 05901637

BLT,HEX .50-13X1.25 G5 ZCC

$3.49

$

In Stock, Qty 12

0

15

Gravely 05901937

BLT, HEX .50-13X3.50 G5 ZCC

$5.49

$

In Stock, Qty 11

0

16

Gravely 06500810

NUT,NYL-FLG .50-13 GF ZCC

$1.99

$

In Stock, Qty 20+

0

17

Gravely 06500815

NUT,SPNLK-FLG .31-18 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

18

Gravely 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06200406

BTL,RHSN .313-18 X 0.5 G5 ZCC

$3.49

$

In Stock, Qty 15

0

20

Gravely 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

21

Gravely 06401115

WSHR, FLT .531X1.00X.063 ZCC

$0.99

$

In Stock, Qty 12

0

22

Gravely 06401023

WSHR,FLT .375X.875X.083 ZCC

$1.99

$

In Stock, Qty 20+

0

23

Gravely 06401012

WSHR,FLT .563X1.375X.109 ZCC

$2.99

$

In Stock, Qty 20+

0
