992272 (Pro-Turn 260) - Gravely Pro-Turn 60" Zero-Turn Mower, Kohler EFI (SN: 062000 - 069999) Engine - Kohler EFI Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kohler EFI

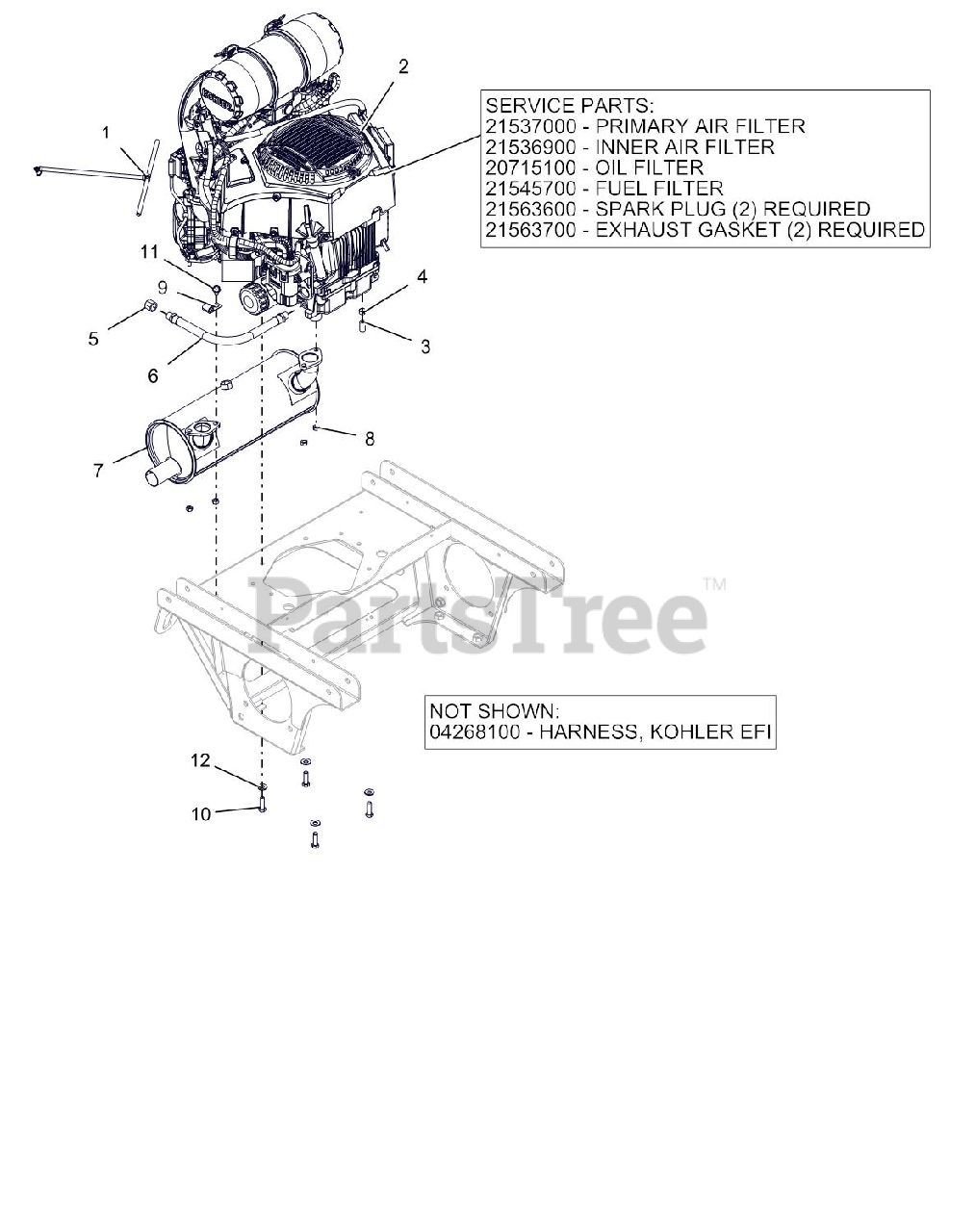

Engine - Kohler EFI Parts Diagram

  • Title

1

Gravely 04981500

ASM, KOHLER EFI VAPOR LINE

$49.99

$

Usually ships in 4-12 days

0

2

Gravely 21536900

ELEMENT, INNER SAFETY

Note: SERVICE PART

$29.99

$

In Stock, only 4 left!

0

2

Gravely 21537000

ELEMENT, OUTER PRIMARY

Note: SERVICE PART

$28.99

$

In Stock, Qty 20+

0

2

Gravely 21536700

REGULATOR, EFI FUEL

Note: SERVICE PART (2 REQUIRED)

$

$

Not available

2

Gravely 08201033

ENGINE, KOHLER EFI

$

$

Not available

2

Gravely 21545700

FILTER-FUEL KOHLER COURAGE PRO
(Superseded to 21539500)

Note: SERVICE PART

$12.99

$

In Stock, Qty 20+

0

2

Gravely 20715100

OIL FILTER KOHLER

Note: SERVICE PART

$21.99

$

In Stock, Qty 20+

0

2

Gravely 21563600

PLUG, SPARK

Note: SERVICE PART (2 REQUIRED)

$14.99

$

Usually ships in 4-12 days

0

3

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

4

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

5

Gravely 03873200

PIPE CAP 3/8 NPT FEMALE

$14.99

$

Usually ships in 4-12 days

0

6

Gravely 04058500

HOSE,HYD .38-14-0K M6N0-M6N0
(Superseded to 05155100)

$21.99

$

Usually ships in 4-12 days

0

7

Gravely 04786000

MUFFLER, KOHLER EFI

$234.99

$

Usually ships in 4-12 days

0

8

Gravely 06500018

NUT-LK-TOP M8-1.25 YWZC
(Superseded to 06500919)

$2.49

$

In Stock, Qty 5

0

9

Gravely 06916000

J-CLAMP

$2.99

$

Usually ships in 4-12 days

0

10

Gravely 05901522

BLT-HEX.38-16X1.25 G5YZ NYTORQ
(Superseded to 05901808)

$2.49

$

Usually ships in 4-12 days

0

11

Gravely 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.99

$

In Stock, Qty 19

0

12

Gravely 06400927

WASHER, 3/8" SPRING DISC

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 04268100

HARNESS, EFI ADAPTER
(Superseded to 05162200)

Note: SERVICE PART (NOT SHOWN)

$92.99

$

Usually ships in 4-12 days

0
