992273 (Pro-Turn 452) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki FX (SN: 080000 - 081999) Idlers And Sheaves - 52" Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki FX

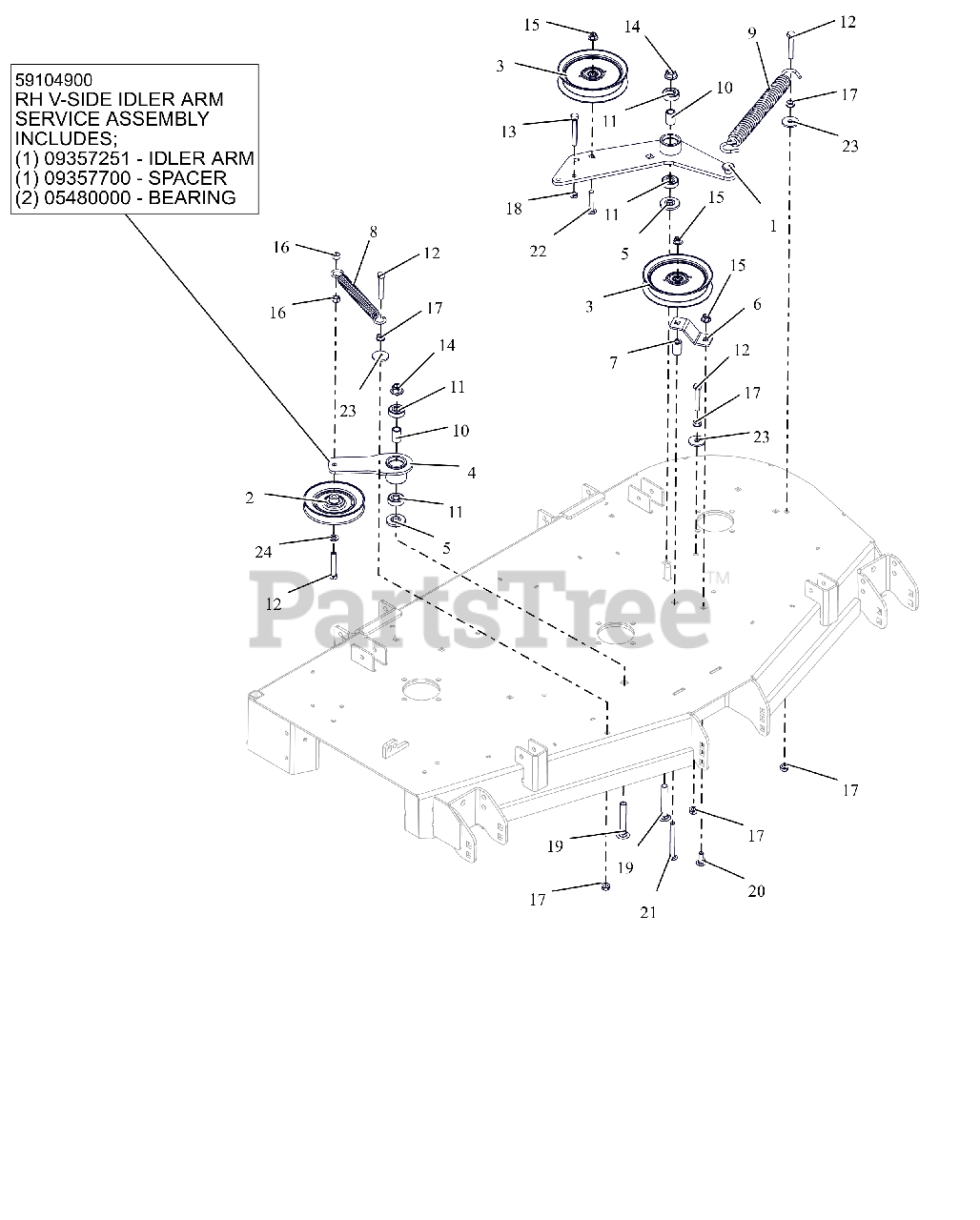

Idlers And Sheaves - 52" Parts Diagram

  • Title

1

Gravely 04985651

DECK PTO IDLER ARM WLDMT - BLK
(Superseded to 04985600)

$77.99

$

Usually ships in 4-12 days

0

2

Gravely 07340100

IDLER, V-5.00"
(Superseded to 07351800)

$30.99

$

Usually ships in 4-12 days

0

3

Gravely 07345600

IDLER, FLAT 5.00"
(Superseded to 07351200)

$39.99

$

In Stock, Qty 20+

0

4

Gravely 09357251

DECK RH IDLER ARM WMT - BLK
(Superseded to 59104900)

$65.99

$

In Stock, only 2 left!

0

Gravely 59104900

RH V-SIDE IDLER ARM ASSEMBLY

Note: SERVICE PART

$65.99

$

In Stock, only 2 left!

0

5

Gravely 04714600

SPACER, IDLER ARM

$4.99

$

In Stock, Qty 20+

0

6

Gravely 04981853

PTO FIXED IDLER MTG BRKT -RED

$8.49

$

In Stock, Qty 9

0

7

Gravely 05501308

BUSHING, SLV .380X.750X1.190

$4.99

$

Usually ships in 4-12 days

0

8

Gravely 08300507

SPRING, EXTENSION
(Superseded to 08300728)

$26.99

$

In Stock, Qty 17

0

9

Gravely 08300708

SPRING, EXTENSION

$18.99

$

In Stock, only 2 left!

0

10

Gravely 09357700

SPACER .510 X .75 X 1.1485

$3.99

$

In Stock, Qty 12

0

11

Gravely 05408000

BRG-BALL .500X1.38X.437

$5.99

$

In Stock, Qty 20+

0

12

Gravely 05901640

BLT,HEX .38-16X2.25 G5 ZCC

$3.99

$

In Stock, Qty 20+

0

13

Gravely 05901611

BLT, HEX .38-16X2.75 G5 ZCC

$3.99

$

In Stock, Qty 20+

0

14

Gravely 06500810

NUT,NYL-FLG .50-13 GF ZCC

$2.49

$

In Stock, Qty 20+

0

15

Gravely 06500726

NUT,NYL-FLG .38-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06500825

NUT-LK-CTR .38-16 ZC120

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06500735

NUT, SPNLK-FLG .38-16 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06500910

NUT-JAM .375-16 G2 ZCC

$0.99

$

In Stock, Qty 12

0

19

Gravely 06200339

BTL,RHSSN .500-13 X 3.25 G5 ZCC

$3.99

$

In Stock, only 3 left!

0

20

Gravely 06200235

BLT,RHSSN .38-16X1.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06200238

BLT,RHSSN .38-16X3.50 G5 ZCC

$3.99

$

In Stock, only 2 left!

0

22

Gravely 06200323

BLT,RHSSN.375-16X2.00 G5 ZCC

$2.99

$

In Stock, Qty 18

0

23

Gravely 06401121

WSHR,FLT .406X1.375X.135 ZCC

$5.99

$

In Stock, Qty 5

0

24

Gravely 06401013

WSHR,FLT .406X.812X.065 ZCC

$0.99

$

In Stock, Qty 20+

0
