992276 (Pro-Turn 472) - Gravely Pro-Turn 72" Zero-Turn Mower, Kawasaki FX (SN: 051000 - 059999) Deck Lift - Right Hand Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Kawasaki FX

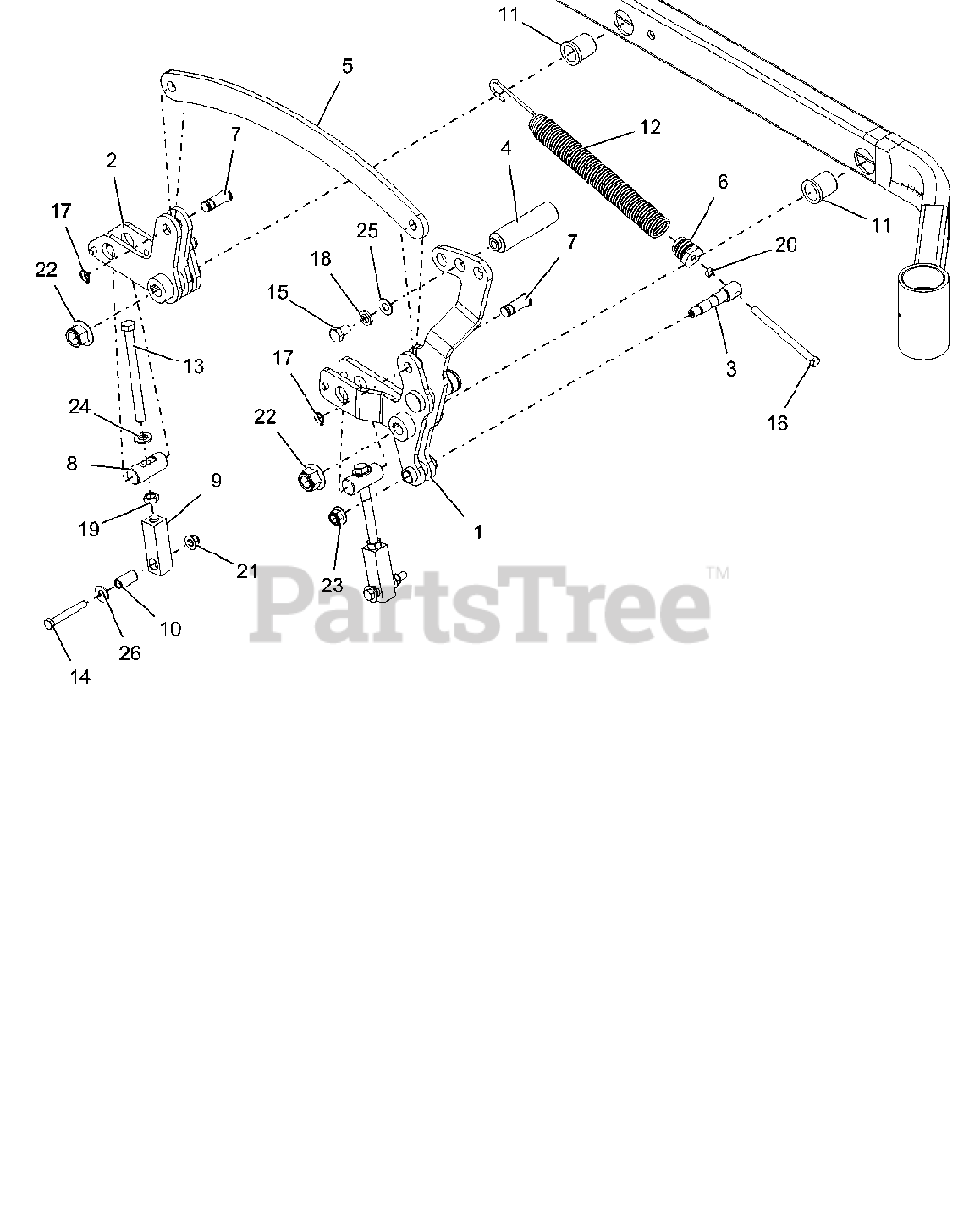

Deck Lift - Right Hand Parts Diagram

  • Title

1

Gravely 04877367

FRONT RH DECK LIFT ARM WMT-LF

$231.99

$

Usually ships in 4-12 days

0

2

Gravely 04877467

REAR RH DECK LIFT ARM WLDMT-LF

$116.99

$

Usually ships in 4-12 days

0

3

Gravely 04373200

TRUNION, DECK LIFT SPRING

$137.99

$

Usually ships in 4-12 days

0

4

Gravely 04373300

FOOT PEG, DECK LIFT

$40.99

$

Usually ships in 4-12 days

0

5

Gravely 04373451

LINK, CONNECTING

$60.99

$

Usually ships in 4-12 days

0

6

Gravely 04374200

PLUG, SPRING

$91.99

$

In Stock, only 1 left!

0

7

Gravely 04414200

PIN, CLEVIS .625 SNAP RING

$12.99

$

Usually ships in 4-12 days

0

8

Gravely 04877700

PIN, DECK LIFT
(Superseded to 05149500)

$18.99

$

In Stock, Qty 20+

0

9

Gravely 04877800

LINK, DECK LIFT
(Superseded to 05081400)

$17.99

$

In Stock, Qty 11

0

10

Gravely 04895200

SPACER, DECK LEVELING

$3.49

$

In Stock, Qty 20+

0

11

Gravely 05500934

BSHG-FLG 1.00X1.25X1.50X1.50

$8.49

$

In Stock, Qty 20+

0

12

Gravely 08300624

SPRING, DECK LIFT

$14.99

$

In Stock, only 2 left!

0

13

Gravely 05901605

BOLT,.50-13X6.00-2.50 LG THD
(Superseded to 05901924)

$7.99

$

Usually ships in 4-12 days

0

14

Gravely 05963000

BLT-HEX .38-16X2.75 GR8 YWZC
(Superseded to 05901813)

$2.49

$

In Stock, Qty 20+

0

15

Gravely 05971800

@BLT-HEX .50-13X.75 GR5 YWZC

$3.49

$

Usually ships in 4-12 days

0

16

Gravely 05901506

BLT-HEX .38-16X5.00 GR5 FTH YZ
(Superseded to 05901923)

$5.99

$

Usually ships in 4-12 days

0

17

Gravely 05709200

RG-RTNG-EXT .625X.050

$3.49

$

Usually ships in 4-12 days

0

18

Gravely 06307300

@WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.99

$

In Stock, Qty 20+

0

19

Gravely 06529300

NUT-JAM .50-13 YWZC
(Superseded to 06500911)

$2.49

$

In Stock, Qty 20+

0

20

Gravely 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$1.99

$

In Stock, Qty 20+

0

21

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$2.49

$

In Stock, Qty 20+

0

22

Gravely 06500717

@NUT-LK-NYL-FLG .75-10 YWZC
(Superseded to 06500931)

$4.99

$

Usually ships in 4-12 days

0

23

Gravely 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$2.99

$

In Stock, Qty 20+

0

24

Gravely 06400418

FLATWASHER 1/2 SAE HARD 15906
(Superseded to 06401116)

$2.49

$

In Stock, Qty 20+

0

25

Gravely 06439200

WSHR-FL-STL .505X1.00X.062YWZC
(Superseded to 06401112)

$1.99

$

In Stock, Qty 20+

0

26

Gravely 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$2.99

$

In Stock, Qty 20+

0
