992276 (Pro-Turn 472) - Gravely Pro-Turn 72" Zero-Turn Mower, Kawasaki FX (SN: 051000 - 059999) Drive Controls Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Kawasaki FX

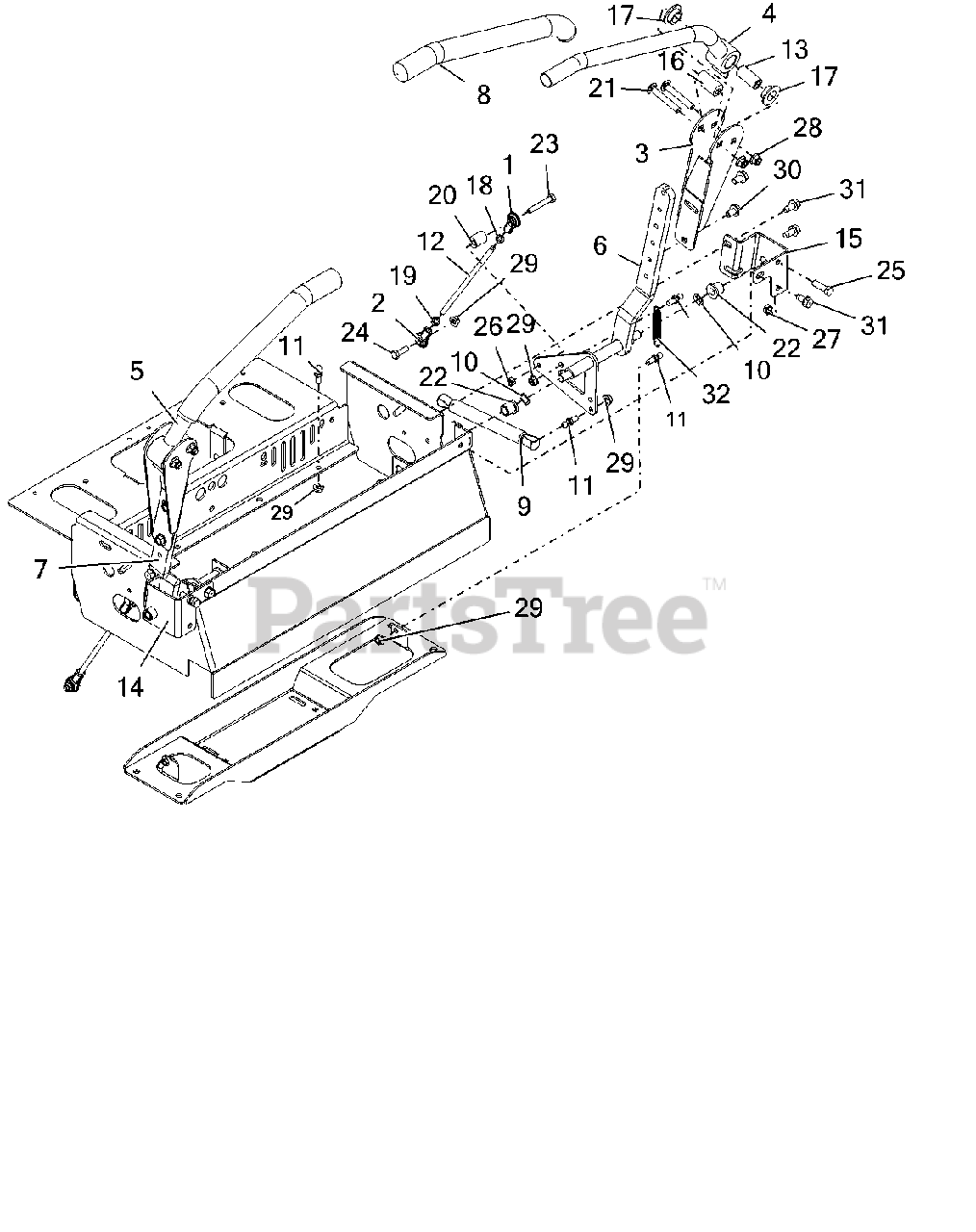

Drive Controls Parts Diagram

  • Title

1

Gravely 03787100

ALIGNABALL, 5/16 RH THREAD

$19.99

$

In Stock, only 3 left!

0

2

Gravely 03787200

ALIGNABALL, 5/16 LH THREAD
(Superseded to 05298700)

$18.99

$

In Stock, only 2 left!

0

3

Gravely 04776951

UPPER ADJ CNTRL ARM WLDMT- BLK

$40.99

$

Usually ships in 4-12 days

0

4

Gravely 04777100

WLDMT, LH DRIVE CONTROL HANDLE
(Superseded to 59226200)

$248.99

$

Usually ships in 4-12 days

0

5

Gravely 04777200

WLDMT, RH DRIVE CONTROL HANDLE
(Superseded to 59226200)

$248.99

$

Usually ships in 4-12 days

0

6

Gravely 04890700

WLDMT, LH LOWER CONTROL ARM

$72.99

$

Usually ships in 4-12 days

0

7

Gravely 04890800

WLDMT, RH LOWER CONTROL ARM

$72.99

$

Usually ships in 4-12 days

0

8

Gravely 04383600

GRIP, HANDLEBAR

$38.99

$

In Stock, only 1 left!

0

9

Gravely 03769800

DAMPER
(Superseded to 09689700)

$68.99

$

In Stock, Qty 20+

0

10

Gravely 00325400

WAVE WASHER .531X.781X.125FH

$1.99

$

In Stock, Qty 15

0

11

Gravely 03652200

STUD- BALL

$4.99

$

In Stock, Qty 18

0

12

Gravely 03938500

ROD, STEERING

$11.99

$

In Stock, only 2 left!

0

13

Gravely 04413600

SPACER, STEERING ARM

$7.49

$

In Stock, only 2 left!

0

14

Gravely 04890553

PT200/400 RH CNTRL STP BRK-RED

$55.99

$

Usually ships in 4-12 days

0

15

Gravely 04890653

PT200/400 LH CNTRL STP BRK-RED

$62.99

$

Usually ships in 4-12 days

0

16

Gravely 05501223

BSHG, ECCENTRIC.406X.875X1.625

$5.99

$

In Stock, only 2 left!

0

17

Gravely 05525200

BSHG-FLG .762X1.48X.44 NYL
(Superseded to 05501517)

$3.49

$

In Stock, Qty 12

0

18

Gravely 06536700

NUT-JAM .31-24 YWZC
(Superseded to 06500923)

$1.99

$

In Stock, Qty 5

0

19

Gravely 06544300

NUT-JAM LH .31-24 YWZC
(Superseded to 06501002)

$4.99

$

Usually ships in 4-12 days

0

20

Gravely 09235700

ECCENTRIC

$5.99

$

In Stock, only 3 left!

0

21

Gravely 06200213

BLT-RDHDSQSHK, 38-16X2.50 G5YZ
(Superseded to 06200315)

$4.99

$

In Stock, Qty 12

0

22

Gravely 05501001

BHSG-FLG .500X.750X.750X.125

$5.99

$

In Stock, Qty 20+

0

23

Gravely 05957200

@BLT-HEX .31-18X2.00 GR5 YWZC
(Superseded to 05901805)

$2.49

$

In Stock, Qty 17

0

24

Gravely 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$2.49

$

In Stock, Qty 20+

0

25

Gravely 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$2.49

$

In Stock, Qty 20+

0

26

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$2.49

$

In Stock, Qty 20+

0

27

Gravely 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$1.99

$

In Stock, Qty 20+

0

28

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$2.49

$

In Stock, Qty 20+

0

29

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.99

$

In Stock, Qty 20+

0

30

Gravely 07001707

BLT, SCRHFWH .375-16X.625 YWZC
(Superseded to 07001716)

$2.99

$

Usually ships in 4-12 days

0

31

Gravely 07415400

@SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$2.49

$

In Stock, Qty 20+

0

32

Gravely 08300516

SPRING,EXT,.061X.50X3.0

$15.99

$

In Stock, only 2 left!

0
