992276 (Pro-Turn 472) - Gravely Pro-Turn 72" Zero-Turn Mower, Kawasaki FX (SN: 062000 - 069999) Idlers And Sheaves - 72" Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Kawasaki FX

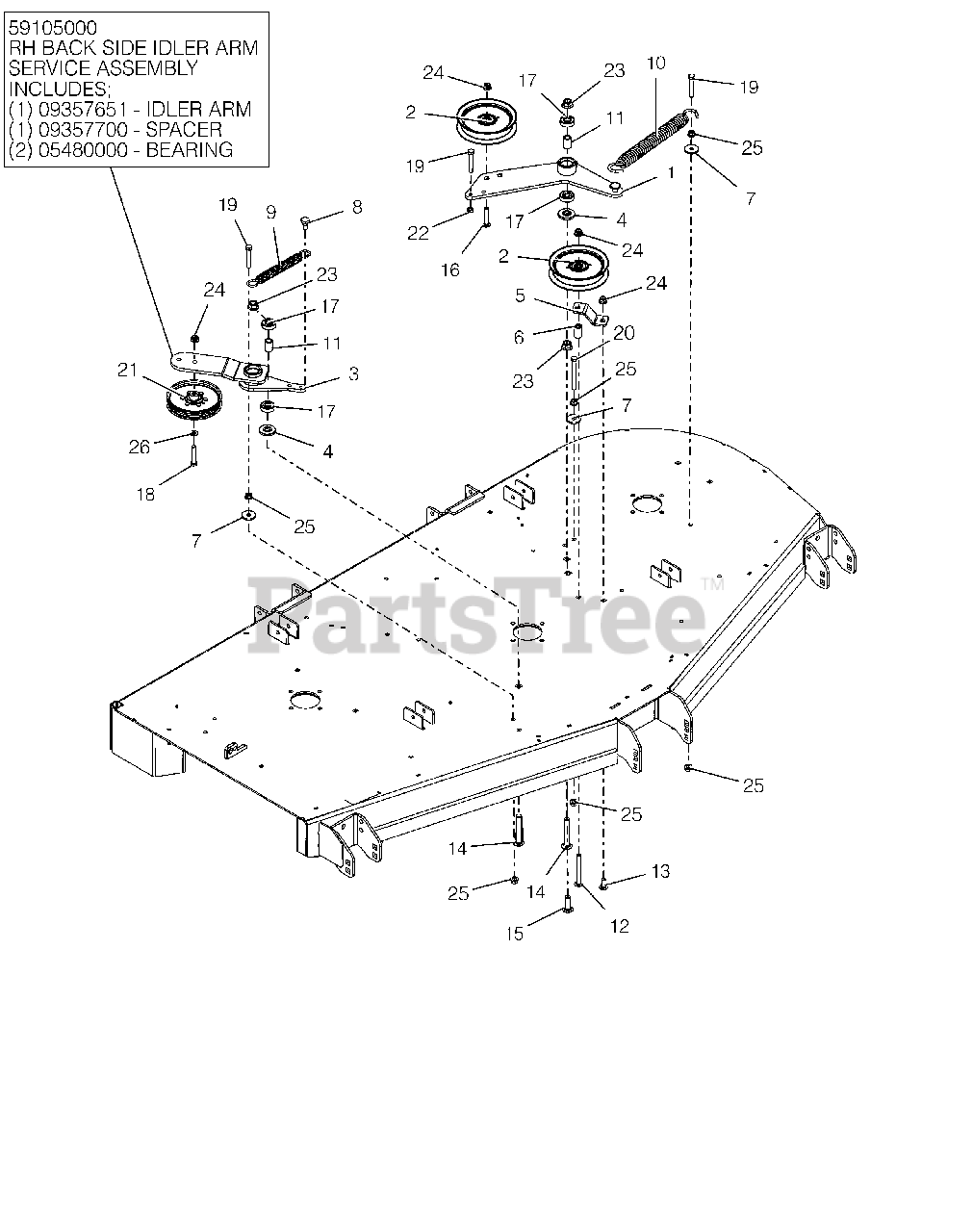

Idlers And Sheaves - 72" Parts Diagram

  • Title

1

Gravely 04985651

DECK PTO IDLER ARM WLDMT - BLK
(Superseded to 04985600)

$79.99

$

In Stock, Qty 5

0

2

Gravely 07345600

IDLER, FLAT 5.00"
(Superseded to 07351200)

$42.99

$

In Stock, Qty 20+

0

3

Gravely 09357651

DECK RH IDLER ARM WMT - BLK
(Superseded to 09357600)

$89.99

$

In Stock, only 2 left!

0

3

Gravely 59105000

RH BACKSIDE IDLER ARM ASSEMBLY

Note: SERVICE PART

$91.99

$

In Stock, Qty 6

0

3

Gravely 09357651

DECK RH IDLER ARM WMT - BLK
(Superseded to 09357600)

Note: SERVICE PART

$89.99

$

In Stock, only 2 left!

0

3

Gravely 09357700

SPACER .510 X .75 X 1.1485

Note: SERVICE PART

$5.49

$

In Stock, Qty 20+

0

3

Gravely 05480000

BRG-BALL .50X1.38X.438 SEALED

Note: SERVICE PART

$15.99

$

In Stock, Qty 20+

0

4

Gravely 04714600

SPACER, IDLER ARM

$6.99

$

In Stock, Qty 17

0

5

Gravely 04981853

PTO FIXED IDLER MTG BRKT -RED

$9.99

$

In Stock, Qty 7

0

6

Gravely 05501308

BUSHING, SLV .380X.750X1.190

$5.49

$

In Stock, Qty 6

0

7

Gravely 06442400

WSHR-FL-STL .406X1.375X.135 YZ
(Superseded to 06401121)

$6.49

$

In Stock, Qty 9

0

8

Gravely 07000034

BLT,SHLDR EP .38-16X.30 HEX YZ

$3.99

$

In Stock, Qty 10

0

9

Gravely 08300507

SPRING, EXTENSION
(Superseded to 08300728)

$28.99

$

In Stock, Qty 20+

0

10

Gravely 08300708

SPRING, EXTENSION

$21.99

$

In Stock, Qty 13

0

11

Gravely 09357700

SPACER .510 X .75 X 1.1485

$5.49

$

In Stock, Qty 20+

0

12

Gravely 06200125

@BLT-RHDSSQNK .38-16X3.50 G5YZ
(Superseded to 06200238)

$3.99

$

In Stock, Qty 20+

0

13

Gravely 06212000

@BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.99

$

Usually ships in 4-12 days

0

14

Gravely 06200216

BLT,RDHDSQSHNK.50-13X3.25 G5YZ
(Superseded to 06200339)

$3.99

$

In Stock, Qty 20+

0

15

Gravely 06200006

BLT-RDHDSHSQNKFT.50-13X1.50 G5

$6.49

$

In Stock, Qty 10

0

16

Gravely 06203200

BLT-RDHDSQNK .38-16X2.00 SHTYW
(Superseded to 06200323)

$2.99

$

In Stock, Qty 18

0

17

Gravely 05408000

BRG-BALL .500X1.38X.437

$6.99

$

In Stock, Qty 20+

0

18

Gravely 05963300

@BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$3.49

$

In Stock, Qty 20+

0

19

Gravely 05962900

@BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

20

Gravely 05960900

@BLT-HEX .38-16X3.50 GR5 YWZC
(Superseded to 05901818)

$4.99

$

In Stock, Qty 20+

0

21

Gravely D28050

PULLEY, FLAT IDLER
(Superseded to 07352400)

$40.99

$

In Stock, Qty 20+

0

22

Gravely 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

24

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

25

Gravely 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.99

$

In Stock, Qty 20+

0

26

Gravely 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0
