992276 (Pro-Turn 472) - Gravely Pro-Turn 72" Zero-Turn Mower, Kawasaki FX (SN: 062000 - 069999) Stabilizer Arms And Baffles - 72" Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Kawasaki FX

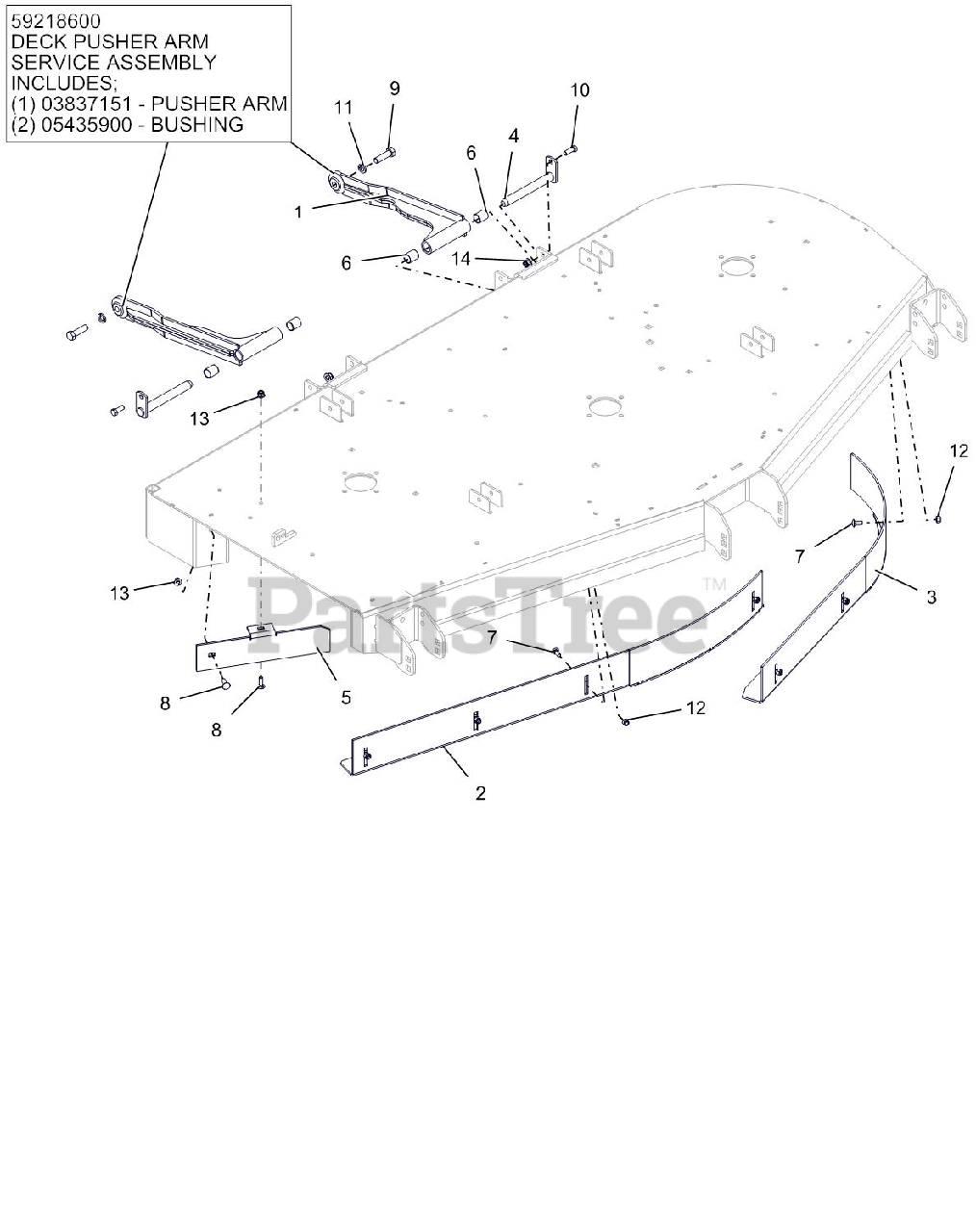

Stabilizer Arms And Baffles - 72" Parts Diagram

  • Title

1

Gravely 05435900

BRG, .750 X .875 X 1.000

Note: SERVICE PART

$6.99

$

In Stock, Qty 20+

0

1

Gravely 59218600

DECK STABILIZER ARM W/BUSHINGS

Note: SERVICE PART

$139.99

$

Usually ships in 4-12 days

0

1

Gravely 03837151

DECK STABILIZER ARM - BLACK
(Superseded to 05253251)

Note: SERVICE PART

$151.99

$

Usually ships in 4-12 days

0

1

Gravely 03837151

DECK STABILIZER ARM - BLACK
(Superseded to 05253251)

$151.99

$

Usually ships in 4-12 days

0

2

Gravely 04770851

72" RH VACUUM BAFFLE WLDMT-BLK

$145.99

$

Usually ships in 4-12 days

0

3

Gravely 04770951

72" LH VACCUM BAFFLE WLDMT-BLK

$171.99

$

Usually ships in 4-12 days

0

4

Gravely 09238900

WELDMENT, MOWER MTG. PIN

$63.99

$

In Stock, Qty 6

0

5

Gravely 04962253

72" DISCHARGE BAFFLE - RED

$32.99

$

Usually ships in 4-12 days

0

6

Gravely 05435900

BRG, .750 X .875 X 1.000

$6.99

$

In Stock, Qty 20+

0

7

Gravely 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

8

Gravely 06216100

@BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 05901436

BLT-HEX .50-13X1.75 GR5EP80 YZ
(Superseded to 05901922)

$4.99

$

In Stock, Qty 14

0

10

Gravely 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 06307300

@WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 10

0

12

Gravely 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0
