992277 (Pro-Turn 452) - Gravely Pro-Turn 52" Zero-Turn Mower, Kohler EFI (SN: 051000 & Above) Transaxle - Left Side Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kohler EFI

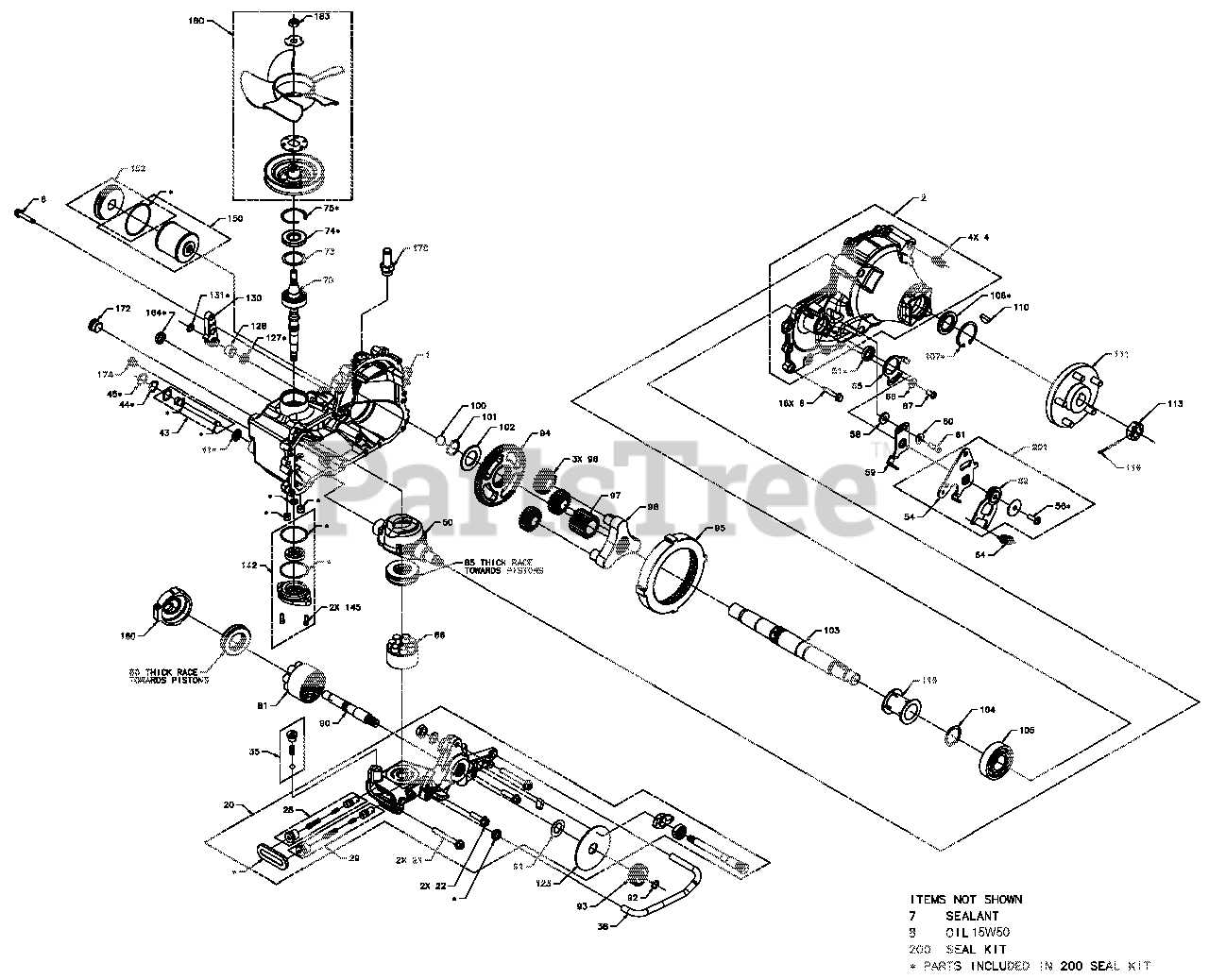

Transaxle - Left Side Parts Diagram

  • Title

1

Kit, Housing, Main, LH

Kit, Housing, Main, LH

Note: Hydro-Gear p/n 71946

$

$

Not available

2

Kit, Housing, Side, LH

Kit, Housing, Side, LH

Note: Hydro-Gear p/n 71948

$

$

Not available

4

Insert, 1/2-13UNC x 1.5

Insert, 1/2-13UNC x 1.5

Note: Hydro-Gear p/n 52973

$

$

Not available

6

Screw Hex Flange, 5/16-18 x 1.50

Screw Hex Flange, 5/16-18 x 1.50

Note: Hydro-Gear p/n 52974

$

$

Not available

7

Gravely 21543771

Tube, Sealant

Note: Hydro-Gear p/n 50928

$116.99

$

In Stock, only 1 left!

0

8

Gravely 00057100

Synthetic Oil, 15W50

Note: Hydro-Gear p/n 50006

$14.99

$

In Stock, Qty 7

0

20

Gravely 21549000

Kit, Center Section LH

Note: Hydro-Gear p/n 71995

$421.99

$

Usually ships in 4-12 days

0

21

Bolt, Hex Flange 3/8-16 x 3.00

Bolt, Hex Flange 3/8-16 x 3.00

Note: Hydro-Gear p/n 52977

$

$

Not available

22

Screw Hex Flange, 3/8-16 x 1.50

Screw Hex Flange, 3/8-16 x 1.50

Note: Hydro-Gear p/n 52137

$

$

Not available

28

Gravely 21549100

Kit, Shock Valve

Note: Hydro-Gear p/n 71952

$44.99

$

Usually ships in 4-12 days

0

29

Gravely 21549100

Kit, Shock Valve

Note: Hydro-Gear p/n 71952

$44.99

$

Usually ships in 4-12 days

0

35

Gravely 21549200

Kit, Charge Relief

Note: Hydro-Gear p/n 71999

$11.99

$

Usually ships in 4-12 days

0

38

Tube, Filter LH

Tube, Filter LH

Note: Hydro-Gear p/n 52984

$

$

Not available

41

Seal, Lip 12 x 24 x 5 TC

Seal, Lip 12 x 24 x 5 TC

Note: Hydro-Gear p/n 53197

$

$

Not available

43

Kit, Bypass Actuator

Kit, Bypass Actuator

Note: Hydro-Gear p/n 71940

$

$

Not available

44

Spring, Wave

Spring, Wave

Note: Hydro-Gear p/n 53321

$

$

Not available

45

Ring, Retaining, HO-100

Ring, Retaining, HO-100

Note: Hydro-Gear p/n 53322

$

$

Not available

50

Swash Plate, 16CC Machined

Swash Plate, 16CC Machined

Note: Hydro-Gear p/n 52972

$

$

Not available

51

Seal, Lip 22 x 32 x 7

Seal, Lip 22 x 32 x 7

Note: Hydro-Gear p/n 52989

$

$

Not available

54

Arm, Control LH

Arm, Control LH

Note: Hydro-Gear p/n 53222

$

$

Not available

56

Gravely 21543854

TWHCS, 5/16-24 x .875

Note: (Patch) Hydro-Gear p/n 51812

$2.99

$

Usually ships in 4-12 days

0

58

Gravely 21543870

Spacer, .320 x 1.005 x .179

Note: Hydro-Gear p/n 52527

$

$

Not available

59

Gravely 21543866

Arm, Neutral LH

Note: Hydro-Gear p/n 51946

$11.99

$

Usually ships in 4-12 days

0

60

Gravely 08611200

Washer, .34 x .88 x .06

Note: Hydro-Gear p/n 44130

$3.99

$

Usually ships in 4-12 days

0

61

Gravely 21543843

SHCS 5/16-24 x .875

Note: (Patch) Hydro-Gear p/n 51616

$

$

Not available

62

Assembly, RTN Uni-Directional

Assembly, RTN Uni-Directional

Note: (CCW) Hydro-Gear p/n 52433

$

$

Not available

64

Gravely 21544041

RTN SPRING HG 51605

Note: Hydro-Gear p/n 51605

$6.99

$

Usually ships in 4-12 days

0

65

Plate, Stop, LH

Plate, Stop, LH

Note: Hydro-Gear p/n 53190

$

$

Not available

66

Gravely 08611200

Washer, .34 x .88 x .06

Note: Hydro-Gear p/n 44130

$3.99

$

Usually ships in 4-12 days

0

67

HBHCS 5/16-19 x .75

HBHCS 5/16-19 x .75

Note: Hydro-Gear p/n 53519

$

$

Not available

70

Gravely 21544040

Input Shaft, HG 71941

Note: Hydro-Gear p/n 71941

$81.99

$

Usually ships in 4-12 days

0

73

Spacer, .320 x 1.005 x .179

Spacer, .320 x 1.005 x .179

Note: Hydro-Gear p/n 51279

$

$

Not available

74

Seal, Lip 25 x 52 x 7 TC

Seal, Lip 25 x 52 x 7 TC

Note: Hydro-Gear p/n 51280

$

$

Not available

75

Ring, Retaining, Internal

Ring, Retaining, Internal

Note: Hydro-Gear p/n 52650

$

$

Not available

80

Bearing, Thrust 42 x 68 x 16

Bearing, Thrust 42 x 68 x 16

Note: Hydro-Gear p/n 53341

$

$

Not available

81

Gravely 21543879

Kit, Cylinder Block 21cc

Note: Hydro-Gear p/n 70082

$101.99

$

Usually ships in 4-12 days

0

85

Bearing, Thrust 35 x 70 x 22

Bearing, Thrust 35 x 70 x 22

Note: Hydro-Gear p/n 52991

$

$

Not available

86

Kit, Cylinder Block 16cc

Kit, Cylinder Block 16cc

Note: Hydro-Gear p/n 70735

$

$

Not available

90

Shaft, Motor

Shaft, Motor

Note: Hydro-Gear p/n 52992

$

$

Not available

91

Washer, .89 x 1.50 x .04

Washer, .89 x 1.50 x .04

Note: Hydro-Gear p/n 52993

$

$

Not available

92

Gravely 21543704

Ring, Retaining

Note: Hydro-Gear p/n 44145

$1.99

$

Usually ships in 4-12 days

0

93

Gear, 19T

Gear, 19T

Note: Hydro-Gear p/n 52994

$

$

Not available

94

Gear, 65T

Gear, 65T

Note: Hydro-Gear p/n 52996

$

$

Not available

95

Gear, Ring, 68T

Gear, Ring, 68T

Note: Hydro-Gear p/n 52998

$

$

Not available

96

Gear, Planet, 23T

Gear, Planet, 23T

Note: Hydro-Gear p/n 52999

$

$

Not available

97

Gear, Sun, 22T

Gear, Sun, 22T

Note: Hydro-Gear p/n 53000

$

$

Not available

98

Carrier

Carrier

Note: Hydro-Gear p/n 53001

$

$

Not available

100

Gravely 21544048

Ball, Thrust, .75

Note: Hydro-Gear p/n 53002

$1.99

$

Usually ships in 4-12 days

0

101

Ring, Retaining, .75

Ring, Retaining, .75

Note: Hydro-Gear p/n 53003

$

$

Not available

102

Spacer, Thrust Axle

Spacer, Thrust Axle

Note: Hydro-Gear p/n 53004

$

$

Not available

103

Gravely 21544050

Shaft, Axle

Note: Hydro-Gear p/n 53160

$149.99

$

Usually ships in 4-12 days

0

104

Washer, 1.40 x 2.22

Washer, 1.40 x 2.22

Note: Hydro-Gear p/n 53006

$

$

Not available

105

Gravely 21544049

Bearing, Ball 35 x 80 x 21

Note: (6307) Hydro-Gear p/n 53007

$29.99

$

Usually ships in 4-12 days

0

106

Gravely 21549300

Seal, LIP 1.375 x 2.062 x 0.250

Note: Hydro-Gear p/n 53008

$14.99

$

Usually ships in 4-12 days

0

107

Gravely 08616500

Ring, Retaining Internal

Note: Hydro-Gear p/n 50859

$9.49

$

Usually ships in 4-12 days

0

110

Gravely 21544044

Key, Shaft Axle

Note: Hydro-Gear p/n 51796

$11.99

$

Usually ships in 4-12 days

0

111

Gravely 21549400

Kit, Hub 5-Bolt

Note: Hydro-Gear p/n 71028

$155.99

$

Usually ships in 4-12 days

0

113

Gravely 21549500

Nut, Hex 1-20 Slotted

Note: Hydro-Gear p/n 51821

$25.99

$

Usually ships in 4-12 days

0

115

Tube, Axle 1.40 x 2.22

Tube, Axle 1.40 x 2.22

Note: Hydro-Gear p/n 53367

$

$

Not available

116

Gravely 21544045

Pin, Cotter, 9/64 x 2 Extended Prong

Note: Hydro-Gear p/n 51822

$2.49

$

Usually ships in 4-12 days

0

123

Rotor, Brake

Rotor, Brake

Note: Hydro-Gear p/n 53012

$

$

Not available

127

Seal, .56 x .88 x .53

Seal, .56 x .88 x .53

Note: Hydro-Gear p/n 53015

$

$

Not available

128

Spacer, .57 x .86 x .53

Spacer, .57 x .86 x .53

Note: Hydro-Gear p/n 53356

$

$

Not available

130

Gravely 21544038

Brake Arm, HG 53018

Note: Hydro-Gear p/n 53018

$8.99

$

Usually ships in 4-12 days

0

131

Ring, Retaining

Ring, Retaining

Note: Hydro-Gear p/n 53019

$

$

Not available

142

Gravely 21549600

Kit, Charge Cover

Note: Hydro-Gear p/n 71942

$88.99

$

Usually ships in 4-12 days

0

145

Screw, 1/4-20 x .625

Screw, 1/4-20 x .625

Note: Hydro-Gear p/n 9007300-2510

$

$

Not available

150

Gravely 21548300

Filter, Hydraulic Oil w/O-Ring

Note: Hydro-Gear p/n 71943

$34.99

$

Usually ships in 4-12 days

0

152

Gravely 21549700

Kit, Filter Plug

Note: Hydro-Gear p/n 71944

$51.99

$

Usually ships in 4-12 days

0

160

Plate, Motor Swash

Plate, Motor Swash

Note: Hydro-Gear p/n 53026

$

$

Not available

164

Seal, Plug

Seal, Plug

Note: Hydro-Gear p/n 53031

$

$

Not available

170

Fitting, 7/8-14 SAE .625 Beaded

Fitting, 7/8-14 SAE .625 Beaded

Note: Hydro-Gear p/n 53037

$

$

Not available

172

Plug, 7/8-14 Metal

Plug, 7/8-14 Metal

Note: Hydro-Gear p/n 9005110-8700

$

$

Not available

174

Plug, 9/16-18, Metal

Plug, 9/16-18, Metal

Note: Hydro-Gear p/n 9005110-5600

$

$

Not available

180

Gravely 21544035

Kit, Pulley/Fan HG 71906

Note: Hydro-Gear p/n 71906

$155.99

$

Usually ships in 4-12 days

0

183

Gravely 21543903

Nut, Hex 1/2-20 w/Patch

Note: Hydro-Gear p/n 44133

$135.99

$

Usually ships in 4-12 days

0

200

Gravely 21544036

Kit, Seal HG 71945

Note: Hydro-Gear p/n 71945

$86.99

$

Usually ships in 4-12 days

0

201

Kit, RTN, Bi-Directional LH

Kit, RTN, Bi-Directional LH

Note: Hydro-Gear p/n 72002

$

$

Not available
