992279 (Pro-Turn 472) - Gravely Pro-Turn 72" Zero-Turn Mower, Kohler EFI (SN: 051000 - 051999) Transaxle - Left Side Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Kohler EFI

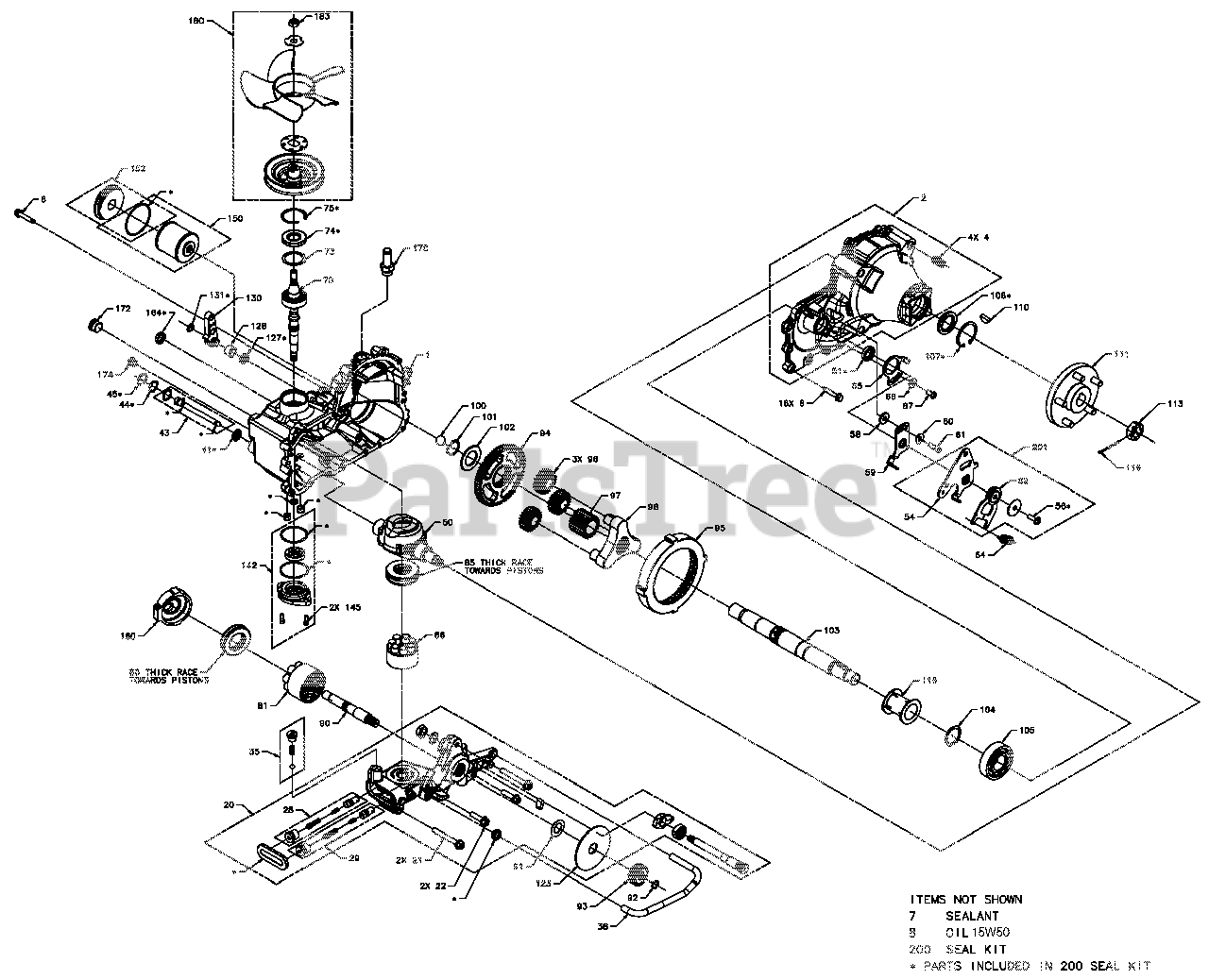

Transaxle - Left Side Parts Diagram

  • Title

1

Kit, Housing, Main, LH

Note: Hydro-Gear p/n 71946

$

$

Not available

2

Kit, Housing, Side, LH

Note: Hydro-Gear p/n 71948

$

$

Not available

4

Insert, 1/2-13UNC x 1.5

Note: Hydro-Gear p/n 52973

$

$

Not available

6

Screw Hex Flange, 5/16-18 x 1.50

Note: Hydro-Gear p/n 52974

$

$

Not available

7

Gravely 21543771

SEALANT TUBE 10.1OZ.

Note: Hydro-Gear p/n 50928

$171.99

$

In Stock, only 1 left!

0

8

Gravely 00057100

FLUID, HYDRO 15W50 QT

Note: Hydro-Gear p/n 50006

$14.99

$

In Stock, Qty 20+

0

20

Gravely 21549000

CENTER SECTION L(03935300)

Note: Hydro-Gear p/n 71995

$429.99

$

Usually ships in 4-12 days

0

21

Bolt, Hex Flange 3/8-16 x 3.00

Note: Hydro-Gear p/n 52977

$

$

Not available

22

Screw Hex Flange, 3/8-16 x 1.50

Note: Hydro-Gear p/n 52137

$

$

Not available

28

Gravely 21549100

HG SHOCK VALVE KIT

Note: Hydro-Gear p/n 71952

$45.99

$

Usually ships in 4-12 days

0

29

Gravely 21549100

HG SHOCK VALVE KIT

Note: Hydro-Gear p/n 71952

$45.99

$

Usually ships in 4-12 days

0

35

Gravely 21549200

HG CHARGE RELIEF VALVE KIT

Note: Hydro-Gear p/n 71999

$12.99

$

Usually ships in 4-12 days

0

38

Tube, Filter LH

Note: Hydro-Gear p/n 52984

$

$

Not available

41

Seal, Lip 12 x 24 x 5 TC

Note: Hydro-Gear p/n 53197

$

$

Not available

43

Kit, Bypass Actuator

Note: Hydro-Gear p/n 71940

$

$

Not available

44

Spring, Wave

Note: Hydro-Gear p/n 53321

$

$

Not available

45

Ring, Retaining, HO-100

Note: Hydro-Gear p/n 53322

$

$

Not available

50

Swash Plate, 16CC Machined

Note: Hydro-Gear p/n 52972

$

$

Not available

51

Seal, Lip 22 x 32 x 7

Note: Hydro-Gear p/n 52989

$

$

Not available

54

Arm, Control LH

Note: Hydro-Gear p/n 53222

$

$

Not available

56

Gravely 21543854

TWHCS 5/16-24 X 1.00

Note: (Patch) Hydro-Gear p/n 51812

$2.99

$

Usually ships in 4-12 days

0

58

Gravely 21543870

SPACER

Note: Hydro-Gear p/n 52527

$

$

Not available

59

Gravely 21543866

ARM, NEUTRAL RIGHT

Note: Hydro-Gear p/n 51946

$26.99

$

Usually ships in 4-12 days

0

60

Gravely 08611200

WASHER

Note: Hydro-Gear p/n 44130

$4.49

$

Usually ships in 4-12 days

0

61

Gravely 21543843

SHCS 5/16-24X1 PATCH

Note: (Patch) Hydro-Gear p/n 51616

$

$

Not available

62

Assembly, RTN Uni-Directional

Note: (CCW) Hydro-Gear p/n 52433

$

$

Not available

64

Gravely 21544041

RTN SPRING HG 51605

Note: Hydro-Gear p/n 51605

$7.49

$

Usually ships in 4-12 days

0

65

Plate, Stop, LH

Note: Hydro-Gear p/n 53190

$

$

Not available

66

Gravely 08611200

WASHER

Note: Hydro-Gear p/n 44130

$4.49

$

Usually ships in 4-12 days

0

67

HBHCS 5/16-19 x .75

Note: Hydro-Gear p/n 53519

$

$

Not available

70

Gravely 21544040

INPUT SHAFT HG 71941

Note: Hydro-Gear p/n 71941

$83.99

$

Usually ships in 4-12 days

0

73

Spacer, .320 x 1.005 x .179

Note: Hydro-Gear p/n 51279

$

$

Not available

74

Seal, Lip 25 x 52 x 7 TC

Note: Hydro-Gear p/n 51280

$

$

Not available

75

Ring, Retaining, Internal

Note: Hydro-Gear p/n 52650

$

$

Not available

80

Bearing, Thrust 42 x 68 x 16

Note: Hydro-Gear p/n 53341

$

$

Not available

81

Gravely 21543879

KIT, MOTOR BLOCK

Note: Hydro-Gear p/n 70082

$103.99

$

Usually ships in 4-12 days

0

85

Bearing, Thrust 35 x 70 x 22

Note: Hydro-Gear p/n 52991

$

$

Not available

86

Kit, Cylinder Block 16cc

Note: Hydro-Gear p/n 70735

$

$

Not available

90

Shaft, Motor

Note: Hydro-Gear p/n 52992

$

$

Not available

91

Washer, .89 x 1.50 x .04

Note: Hydro-Gear p/n 52993

$

$

Not available

92

Gravely 21543704

RING, RET 62 EXT

Note: Hydro-Gear p/n 44145

$1.99

$

Usually ships in 4-12 days

0

93

Gear, 19T

Note: Hydro-Gear p/n 52994

$

$

Not available

94

Gear, 65T

Note: Hydro-Gear p/n 52996

$

$

Not available

95

Gear, Ring, 68T

Note: Hydro-Gear p/n 52998

$

$

Not available

96

Gear, Planet, 23T

Note: Hydro-Gear p/n 52999

$

$

Not available

97

Gear, Sun, 22T

Note: Hydro-Gear p/n 53000

$

$

Not available

98

Carrier

Note: Hydro-Gear p/n 53001

$

$

Not available

100

Gravely 21544048

BALL, .75

Note: Hydro-Gear p/n 53002

$1.99

$

Usually ships in 4-12 days

0

101

Ring, Retaining, .75

Note: Hydro-Gear p/n 53003

$

$

Not available

102

Spacer, Thrust Axle

Note: Hydro-Gear p/n 53004

$

$

Not available

103

Gravely 21544050

SHAFT, AXLE

Note: Hydro-Gear p/n 53160

$165.99

$

Usually ships in 4-12 days

0

104

Washer, 1.40 x 2.22

Note: Hydro-Gear p/n 53006

$

$

Not available

105

Gravely 21544049

BEARING,BALL 35 X 80 X 21 6307

Note: (6307) Hydro-Gear p/n 53007

$32.99

$

Usually ships in 4-12 days

0

106

Gravely 21549300

HG SEAL LIP 1.375X2.062X.250

Note: Hydro-Gear p/n 53008

$16.99

$

Usually ships in 4-12 days

0

107

Gravely 08616500

RING, RETAINING

Note: Hydro-Gear p/n 50859

$9.99

$

Usually ships in 4-12 days

0

110

Gravely 21544044

KEY, WOODRUFF 5/16 X 1

Note: Hydro-Gear p/n 51796

$11.99

$

Usually ships in 4-12 days

0

111

Gravely 21549400

HG 5 BOLT HUB KIT

Note: Hydro-Gear p/n 71028

$158.99

$

Usually ships in 4-12 days

0

113

Gravely 21549500

HG HEX NUT 1-20 SLOTED

Note: Hydro-Gear p/n 51821

$28.99

$

Usually ships in 4-12 days

0

115

Tube, Axle 1.40 x 2.22

Note: Hydro-Gear p/n 53367

$

$

Not available

116

Gravely 21544045

PIN, COTTER 9/64 X 2 EXTENDED

Note: Hydro-Gear p/n 51822

$2.99

$

Usually ships in 4-12 days

0

123

Rotor, Brake

Note: Hydro-Gear p/n 53012

$

$

Not available

127

Seal, .56 x .88 x .53

Note: Hydro-Gear p/n 53015

$

$

Not available

128

Spacer, .57 x .86 x .53

Note: Hydro-Gear p/n 53356

$

$

Not available

130

Gravely 21544038

BRAKE ARM HG 53018

Note: Hydro-Gear p/n 53018

$8.99

$

Usually ships in 4-12 days

0

131

Ring, Retaining

Note: Hydro-Gear p/n 53019

$

$

Not available

142

Gravely 21549600

CHARGE COVER KIT

Note: Hydro-Gear p/n 71942

$90.99

$

Usually ships in 4-12 days

0

145

Screw, 1/4-20 x .625

Note: Hydro-Gear p/n 9007300-2510

$

$

Not available

150

Gravely 21548300

FILTER,HYD OIL W/ORING ZT-54OO

Note: Hydro-Gear p/n 71943

$42.99

$

Usually ships in 4-12 days

0

152

Gravely 21549700

HG FILTER PLUG KIT

Note: Hydro-Gear p/n 71944

$52.99

$

Usually ships in 4-12 days

0

160

Plate, Motor Swash

Note: Hydro-Gear p/n 53026

$

$

Not available

164

Seal, Plug

Note: Hydro-Gear p/n 53031

$

$

Not available

170

Fitting, 7/8-14 SAE .625 Beaded

Note: Hydro-Gear p/n 53037

$

$

Not available

172

Plug, 7/8-14 Metal

Note: Hydro-Gear p/n 9005110-8700

$

$

Not available

174

Plug, 9/16-18, Metal

Note: Hydro-Gear p/n 9005110-5600

$

$

Not available

180

Gravely 21544035

PULLEY/FAN KIT HG 71906

Note: Hydro-Gear p/n 71906

$171.99

$

Usually ships in 4-12 days

0

183

Gravely 21543903

KIT, PUMP SHAFT 15MM KEYW

Note: Hydro-Gear p/n 44133

$138.99

$

Usually ships in 4-12 days

0

200

Gravely 21544036

SEAL KIT HG 71945

Note: Hydro-Gear p/n 71945

$92.99

$

In Stock, Qty 8

0

201

Kit, RTN, Bi-Directional LH

Note: Hydro-Gear p/n 72002

$

$

Not available
