992279 (Pro-Turn 472) - Gravely Pro-Turn 72" Zero-Turn Mower, Kohler EFI (SN: 092000 & Above) Deck Lift Right Hand Continued Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Kohler EFI

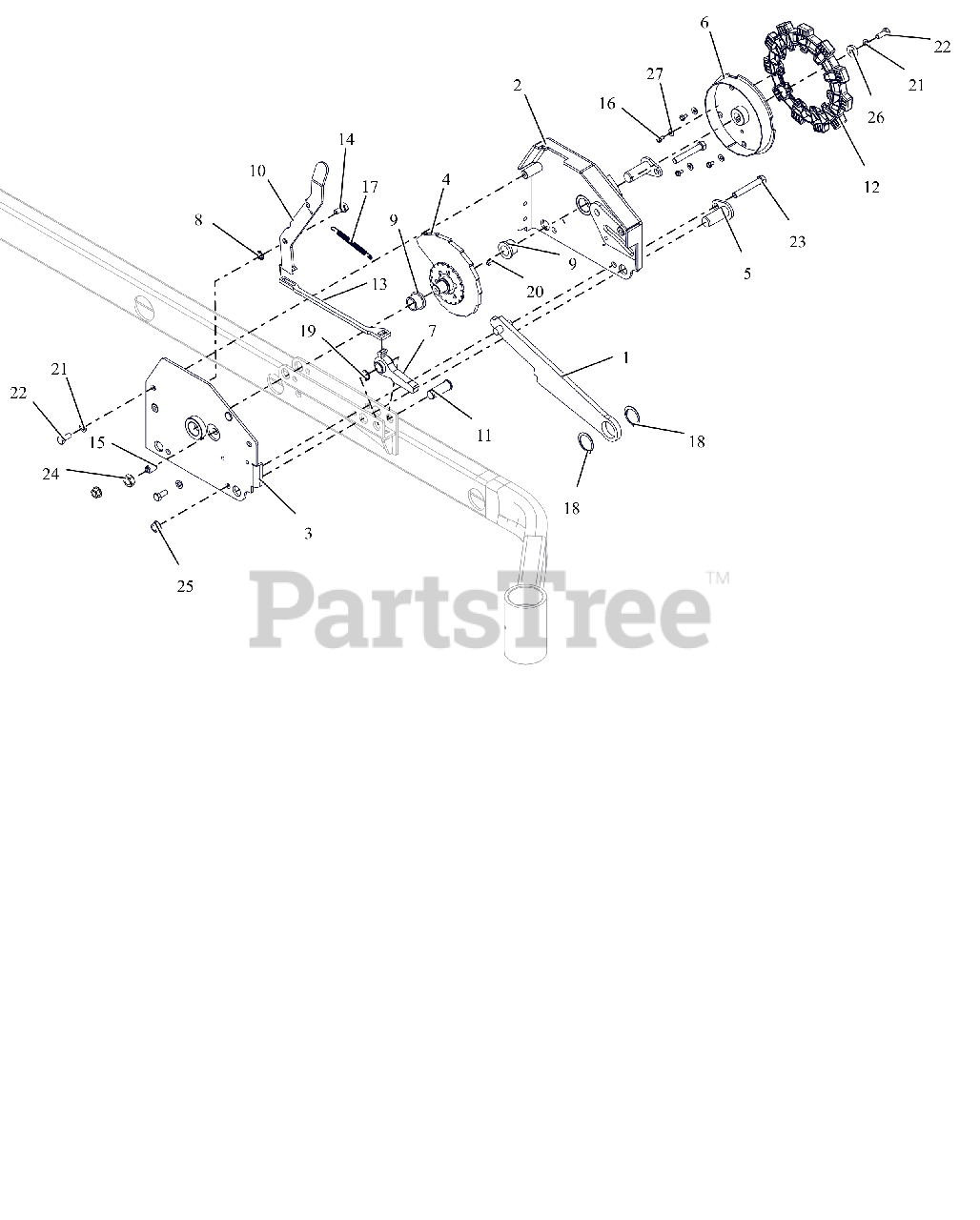

Deck Lift Right Hand Continued Parts Diagram

  • Title

1

Gravely 04373651

HOC LINK WLDMT - BLK

$61.99

$

In Stock, Qty 5

0

2

Gravely 04374753

HOC INNER WLDMT - RED

$162.99

$

Usually ships in 4-12 days

0

3

Gravely 04374853

WLDMT, HOC OUTER

$125.99

$

Usually ships in 4-12 days

0

4

Gravely 04374900

WLDMT, CAM, HOC

$224.99

$

In Stock, only 4 left!

0

5

Gravely 04375400

WLDMT, PIN HOC MOUNTING

$19.99

$

Usually ships in 4-12 days

0

6

Gravely 04870953

WLDMT, PT400 HOC WHEEL

$158.99

$

Usually ships in 4-12 days

0

7

Gravely 05131951

WMT, LOCK PAWL

$59.99

$

Usually ships in 4-12 days

0

8

Gravely 01320200

WAVE WASHER .390X.655X.110

$3.99

$

In Stock, Qty 7

0

9

Gravely 03985500

BUSHING, FLANGE .75X.75X1.0

$6.99

$

In Stock, Qty 18

0

10

Gravely 04390851

LEVER, TRANSPORT LOCK

$16.99

$

Usually ships in 4-12 days

0

11

Gravely 04414200

PIN, CLEVIS .625 SNAP RING

$11.99

$

Usually ships in 4-12 days

0

12

Gravely 04965400

WHEEL, HOC

$11.99

$

Usually ships in 4-12 days

0

13

Gravely 05142151

LINK, TRANSPORT LOCK

$12.99

$

Usually ships in 4-12 days

0

14

Gravely 07001703

BOLT, SHLDR .31-18 X .25

$3.99

$

Usually ships in 4-12 days

0

15

Gravely 07001704

BALL SPRING PLUNGER, .500-13

$10.99

$

Usually ships in 4-12 days

0

16

Gravely 07400033

SCR-TAP 10-24X.375 PRE-COAT 80
(Superseded to 07400137)

$3.99

$

In Stock, Qty 17

0

17

Gravely 08300533

SPRING, EXT

$15.99

$

Usually ships in 4-12 days

0

18

Gravely 05700213

RG-RET-EXT 1.25 X .050

$2.99

$

Usually ships in 4-12 days

0

19

Gravely 05709200

RG-RTNG-EXT .625X.050

$2.99

$

Usually ships in 4-12 days

0

20

Gravely 06600215

KEY-SQ .188X.188X.375

$2.49

$

In Stock, only 1 left!

0

21

Gravely 06300119

WSHR,LK-REG .312X.078 ZCC

$1.49

$

In Stock, Qty 20+

0

22

Gravely 05901704

BLT,HEX .31-18X.75 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

23

Gravely 05901812

BLT, HEX .38-16X2.50 G5 ZCC

$2.99

$

In Stock, Qty 20+

0

24

Gravely 06500911

NUT-JAM .500-13 G2 ZCC

$1.99

$

In Stock, Qty 20+

0

25

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

26

Gravely 06401103

WSHR, FLT .328X.870X.179 ZCC

$3.49

$

In Stock, Qty 20+

0

27

Gravely 06401123

WSHR, FLT .219X.500X.049 ZCC

$1.49

$

Usually ships in 4-12 days

0
