992279 (Pro-Turn 472) - Gravely Pro-Turn 72" Zero-Turn Mower, Kohler EFI (SN: 092000 & Above) Frame - 72" Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Kohler EFI

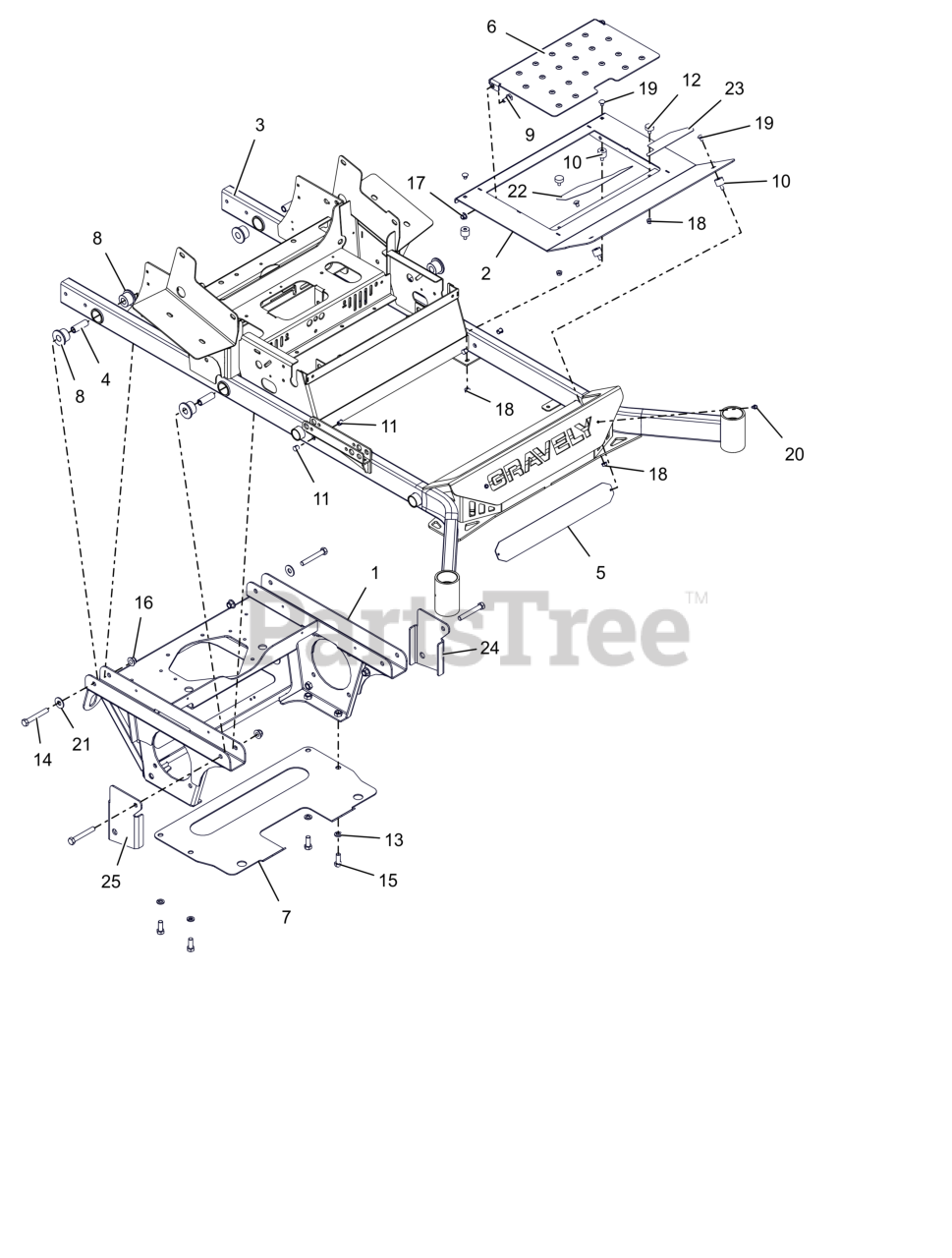

Frame - 72" Parts Diagram

  • Title

1

Gravely 03855553

PT200/400 AXLE/ENG FRM WMT-RED

$619.99

$

Usually ships in 4-12 days

0

2

Gravely 59220100

FOOTPLATE WLDMT W/SAFETY DECAL

$174.99

$

Usually ships in 4-12 days

0

3

Gravely 59223700

72" PT200/400 FRAME W/DECALS

$1793.99

$

Usually ships in 4-12 days

0

4

Gravely 03985600

BSHG-SLV .50X.75X2.23

$9.99

$

Usually ships in 4-12 days

0

5

Gravely 04386551

BUMPER LOGO BACKING PLATE -BLK

$10.99

$

Usually ships in 4-12 days

0

6

Gravely 59220000

INSPECTION PANEL W/SAFTY DECAL

$58.99

$

Usually ships in 4-12 days

0

7

Gravely 04524553

PLATE-TRANSMISSION SKID

$81.99

$

Usually ships in 4-12 days

0

8

Gravely 05500924

BSHG-FLG .75X1.51X1.13X2.0 URE

$11.99

$

Usually ships in 4-12 days

0

9

Gravely 07000034

BLT,SHLDR EP .38-16X.30 HEX YZ

$3.99

$

In Stock, Qty 10

0

10

Gravely 07500214

BUMPER,STUD MNTD W/FEMALE INSR

$21.99

$

Usually ships in 4-12 days

0

11

Gravely 07500324

PLUG, HOLE .50

$

$

Not available

12

Gravely 07533600

BUMPER, RUBBER

$12.99

$

In Stock, only 3 left!

0

13

Gravely 06300115

WSHR,LK-REG .500X.125 ZCC

$1.49

$

In Stock, Qty 10

0

14

Gravely 05901937

BLT, HEX .50-13X3.50 G5 ZCC

$5.49

$

In Stock, Qty 11

0

15

Gravely 05901637

BLT,HEX .50-13X1.25 G5 ZCC

$3.49

$

In Stock, Qty 12

0

16

Gravely 06500810

NUT,NYL-FLG .50-13 GF ZCC

$1.99

$

In Stock, Qty 20+

0

17

Gravely 06500726

NUT,NYL-FLG .38-16 GF ZCC

$1.99

$

In Stock, Qty 20+

0

18

Gravely 06500815

NUT,SPNLK-FLG .31-18 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

19

Gravely 06200406

BTL,RHSN .313-18 X 0.5 G5 ZCC

$3.49

$

In Stock, Qty 15

0

20

Gravely 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

21

Gravely 06401012

WSHR,FLT .563X1.375X.109 ZCC

$2.99

$

In Stock, Qty 20+

0

22

Gravely 05286600

GRIP, RH FOOT PLATE

$

$

Not available

23

Gravely 05286700

GRIP, LH FOOT PLATE

$

$

Not available

24

Gravely 09174651

STOP, DECK LH (BLACK)

$32.99

$

Usually ships in 4-12 days

0

25

Gravely 09174751

STOP, RH DECK (BLACK)

$31.99

$

Usually ships in 4-12 days

0
