992279 (Pro-Turn 472) - Gravely Pro-Turn 72" Zero-Turn Mower, Kohler EFI (SN: 092000 & Above) Fuel System Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Kohler EFI

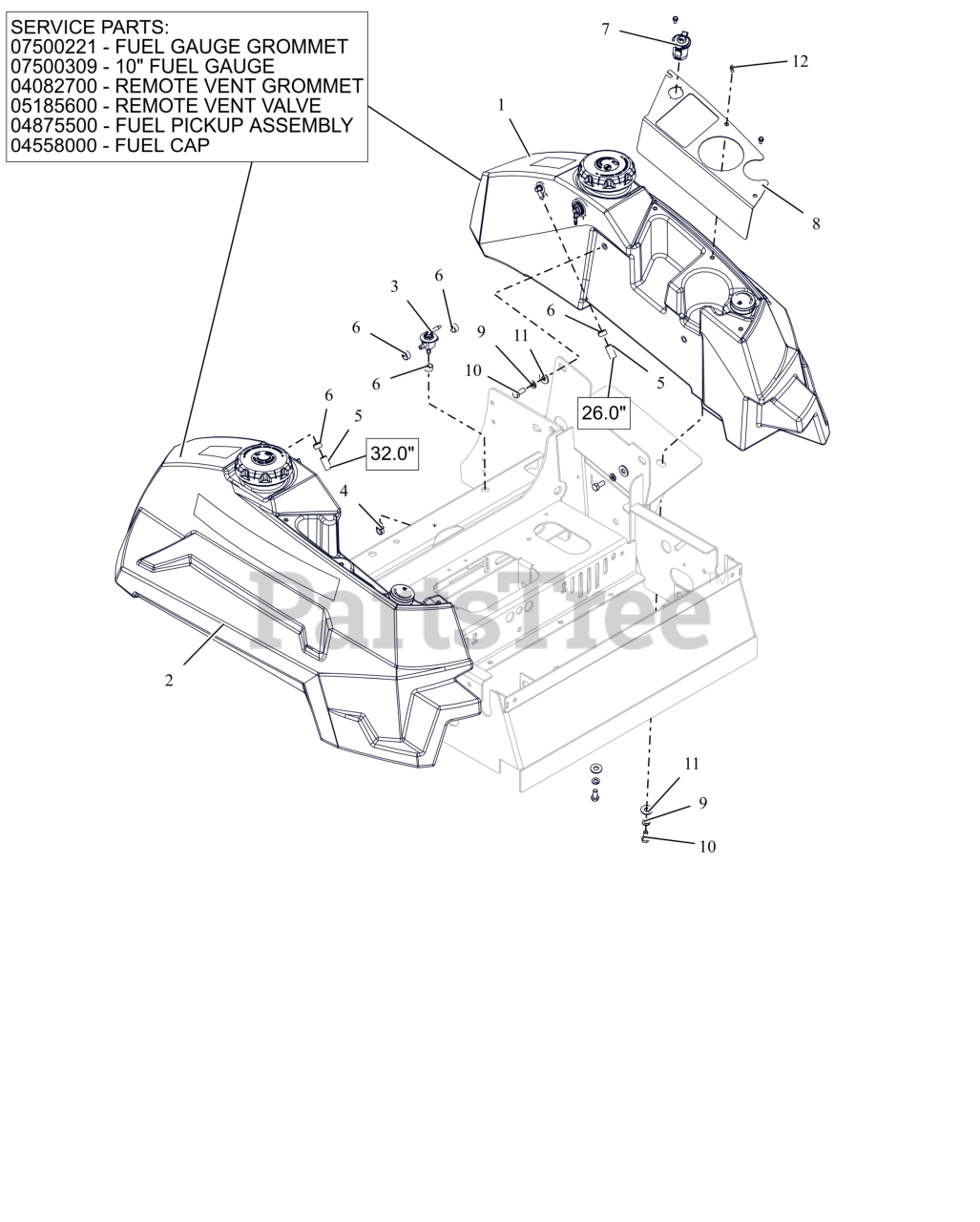

Fuel System Parts Diagram

  • Title

1

Gravely 04893100

ASM, LH FUEL TANK

$511.99

$

In Stock, only 2 left!

0

1

Gravely 07500221

GROMMET, FUEL GAUGE

Note: SERVICE PART

$6.49

$

In Stock, Qty 14

0

1

Gravely 07500309

GAUGE, REMOTE FUEL SEALED 10"

Note: SERVICE PART

$

$

Not available

1

Gravely 04082700

GROMMET, REMOTE VENT NITRILE

Note: SERVICE PART

$3.99

$

In Stock, Qty 20+

0

1

Gravely 05185600

VALVE, COMBINATION VENT 3/16

Note: SERVICE PART

$18.99

$

In Stock, Qty 14

0

1

Gravely 04875500

ASSM,LRG TANK FUEL PICKUP LINE

Note: SERVICE PART

$18.99

$

In Stock, Qty 15

0

1

Gravely 04558000

CAP, FUEL VENTIN AUTOLOCK
(Superseded to 09190300)

Note: SERVICE PART

$35.99

$

In Stock, Qty 8

0

2

Gravely 04893200

ASSY-RH, PT400 FUEL TANK

$511.99

$

Usually ships in 4-12 days

0

2

Gravely 07500221

GROMMET, FUEL GAUGE

Note: SERVICE PART

$6.49

$

In Stock, Qty 14

0

2

Gravely 07500309

GAUGE, REMOTE FUEL SEALED 10"

Note: SERVICE PART

$

$

Not available

2

Gravely 04082700

GROMMET, REMOTE VENT NITRILE

Note: SERVICE PART

$3.99

$

In Stock, Qty 20+

0

2

Gravely 05185600

VALVE, COMBINATION VENT 3/16

Note: SERVICE PART

$18.99

$

In Stock, Qty 14

0

2

Gravely 04875500

ASSM,LRG TANK FUEL PICKUP LINE

Note: SERVICE PART

$18.99

$

In Stock, Qty 15

0

2

Gravely 04558000

CAP, FUEL VENTIN AUTOLOCK
(Superseded to 09190300)

Note: SERVICE PART

$35.99

$

In Stock, Qty 8

0

3

Gravely 09233600

VALVE - FUEL
(Superseded to 09164400)

$46.99

$

In Stock, only 3 left!

0

4

Gravely 00367900

ROUTING CLIP (1/2" ID)

$1.99

$

In Stock, only 1 left!

0

5

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

6

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

7

Gravely 04782900

PORT, 12 VOLT POWER

$13.99

$

Usually ships in 4-12 days

0

8

Gravely 04869153

CUP HOLDER/POCKET PLATE - RED

$40.99

$

Usually ships in 4-12 days

0

9

Gravely 06300119

WSHR,LK-REG .312X.078 ZCC

$1.49

$

In Stock, Qty 20+

0

10

Gravely 05901704

BLT,HEX .31-18X.75 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

11

Gravely 06401023

WSHR,FLT .375X.875X.083 ZCC

$1.99

$

In Stock, Qty 20+

0

12

Gravely 06100211

SCR-MCH 10-24X.38 HWHSTAINLESS

$3.49

$

In Stock, Qty 20+

0
