992280 (Pro-Turn 460) - Gravely Pro-Turn 60" Zero-Turn Mower, Kohler EFI Propane (SN: 050000 & Above) Engine Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kohler EFI Propane

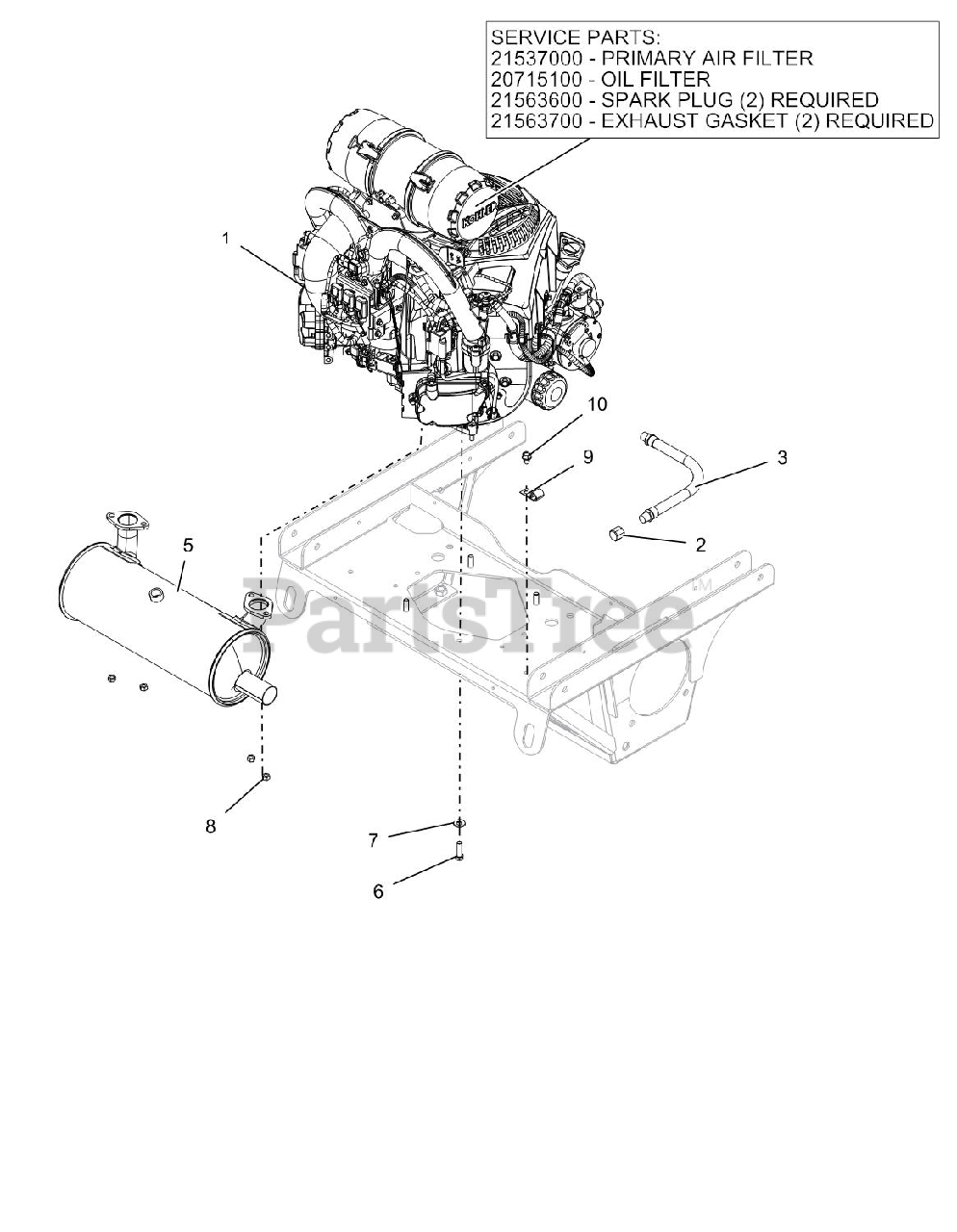

Engine Parts Diagram

  • Title

1

Gravely 21537000

ELEMENT, OUTER PRIMARY

Note: SERVICE PART

$28.99

$

In Stock, Qty 20+

0

1

Gravely 20715100

OIL FILTER KOHLER

Note: SERVICE PART

$17.99

$

Usually ships in 4-12 days

0

1

Gravely 21563600

PLUG, SPARK

Note: SERVICE PART

$13.99

$

In Stock, only 2 left!

0

1

Gravely 21563700

GASKET, EXHAUST

Note: SERVICE PART

$12.99

$

Usually ships in 4-12 days

0

1

Gravely 08201222

ENGINE, KOHLER PCV860 EFI LP

$

$

Not available

2

Gravely 03873200

PIPE CAP 3/8 NPT FEMALE

$12.99

$

Usually ships in 4-12 days

0

3

Gravely 04058500

HOSE,HYD .38-14-0K M6N0-M6N0
(Superseded to 05155100)

$20.99

$

In Stock, only 1 left!

0

5

Gravely 04786000

MUFFLER, KOHLER EFI

$213.99

$

Usually ships in 4-12 days

0

6

Gravely 05901522

BLT-HEX.38-16X1.25 G5YZ NYTORQ
(Superseded to 05901808)

$1.99

$

In Stock, only 3 left!

0

7

Gravely 06400927

WASHER, 3/8" SPRING DISC

$3.49

$

Usually ships in 4-12 days

0

8

Gravely 06500018

NUT-LK-TOP M8-1.25 YWZC
(Superseded to 06500919)

$2.49

$

In Stock, Qty 18

0

9

Gravely 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

10

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, only 4 left!

0
