992280 (Pro-Turn 460) - Gravely Pro-Turn 60" Zero-Turn Mower, Kohler EFI Propane (SN: 050000 & Above) Fuel System Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kohler EFI Propane

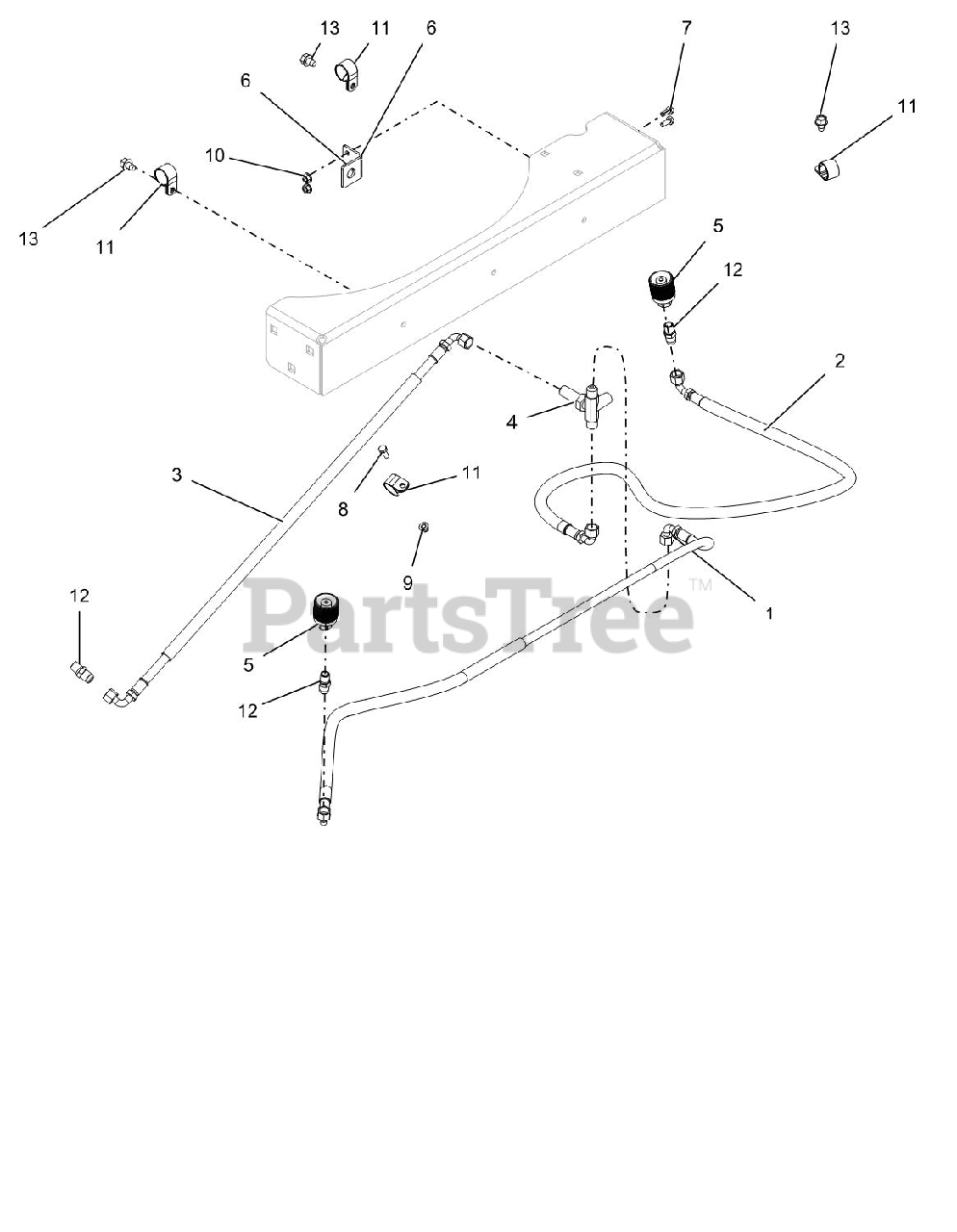

Fuel System Parts Diagram

  • Title

1

Gravely 04539000

HOSE,LPG SS25UL-6-4-6-47.25

$164.99

$

Usually ships in 4-12 days

0

2

Gravely 04539200

HOSE,LPG SS25UL 6-4-6-45.00"

$94.99

$

Usually ships in 4-12 days

0

3

Gravely 05071900

HOSE, LPG SS25UL 6-6-6-30.50

$118.99

$

Usually ships in 4-12 days

0

4

Gravely 03877900

VALVE,SHERWOOD T PV3866 LPG

$287.99

$

Usually ships in 4-12 days

0

5

Gravely 04215300

FTG, LPG TANK COUPLER LH THRD

$91.99

$

Usually ships in 4-12 days

0

6

Gravely 04529653

MOUNT, TEE VALVE

$

$

Not available

7

Gravely 05900338

BLT-HEX .25-20X.63 GR5 YWZC
(Superseded to 05901722)

$2.49

$

Usually ships in 4-12 days

0

8

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, Qty 12

0

9

Gravely 06500012

NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.99

$

In Stock, Qty 6

0

10

Gravely 06543500

NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06917900

CLAMP, COUSHIONED STEEL REV

$15.99

$

Usually ships in 4-12 days

0

12

Gravely 07001711

FTG,ADP 1/4MNPT X 5/8MJIC

$

$

Not available

13

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.99

$

In Stock, Qty 15

0
