992284 (Pro-Turn 472) - Gravely Pro-Turn 72" Zero-Turn Mower, Yamaha EFI (SN: 090000 - 091999) Engine Yamaha EFI MX825V Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Yamaha EFI

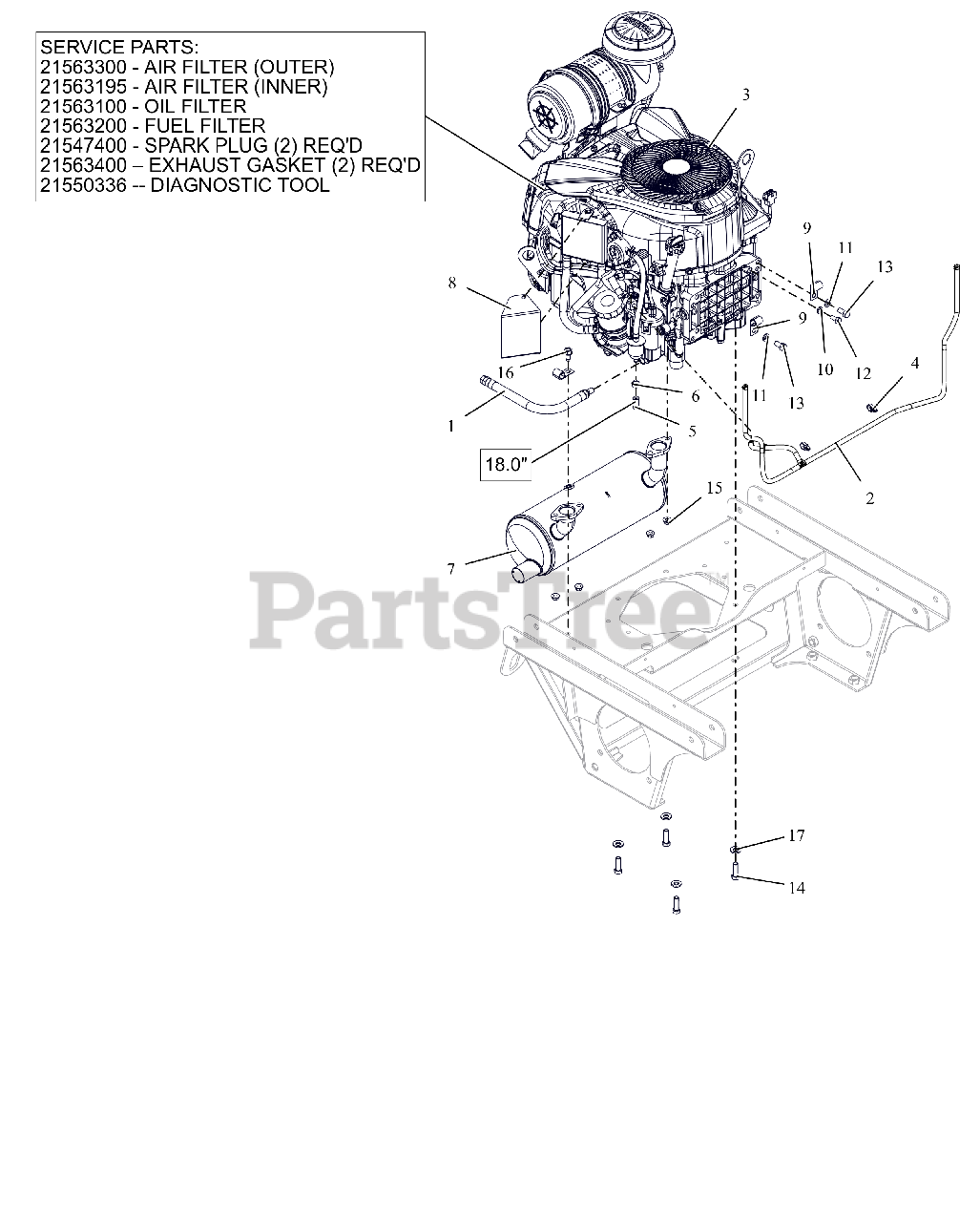

Engine Yamaha EFI MX825V Parts Diagram

  • Title

1

Gravely 05088200

HOSE, OIL DRAIN

$23.99

$

Usually ships in 4-12 days

0

2

Gravely 05105000

ASM, YAMAHA VAPOR LINE

$25.99

$

Usually ships in 4-12 days

0

3

Gravely 08201220

ENGINE, YAMAHA MX825V-EFI
(Superseded to 21563282)

$

$

Not available

3

Gravely 21563300

AIR FILTER (OUTER) - YAMAHA

Note: SERVICE PART

$74.99

$

In Stock, Qty 5

0

3

Gravely 21563195

AIR FILTER (INNER) - YAMAHA

Note: SERVICE PART

$62.99

$

In Stock, only 2 left!

0

3

Gravely 21563100

FILTER, OIL - YAMAHA 824

Note: SERVICE PART

$33.99

$

In Stock, Qty 6

0

3

Gravely 21563200

FILTER-FUEL YAMAHA 824

Note: SERVICE PART

$14.99

$

In Stock, Qty 7

0

3

Gravely 21547400

PLUG, SPARK
(Superseded to 21563037)

Note: SERVICE PART

$3.99

$

In Stock, Qty 20+

0

3

Gravely 21563400

GASKET, MUFFLER YAMAHA 824

Note: SERVICE PART

$5.49

$

In Stock, only 2 left!

0

3

Gravely 21550336

DIAGOSTIC TOOL, YAMAHA MXV

Note: SERVICE PART

$420.99

$

Usually ships in 4-12 days

0

4

Gravely 00367900

ROUTING CLIP (1/2" ID)

$1.99

$

In Stock, only 1 left!

0

5

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

6

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

7

Gravely 05016500

MUFFLER, YAMAHA

$370.99

$

Usually ships in 4-12 days

0

8

Gravely 05167500

DEFLECTOR,YAMAH OIL COOLER AIR

$29.99

$

Usually ships in 4-12 days

0

9

Gravely 06916000

J-CLAMP

$2.99

$

Usually ships in 4-12 days

0

10

Gravely 06300119

WSHR,LK-REG .312X.078 ZCC

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06300116

WSHR,LK-REG .375X.094 ZCC

$1.49

$

In Stock, Qty 17

0

12

Gravely 05901704

BLT,HEX .31-18X.75 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

13

Gravely 05901702

BLT,HEX .38-16X.75 G5 ZCC

$1.99

$

In Stock, Qty 10

0

14

Gravely 05901808

BLT, HEX .38-16X1.25 G5 ZCC NT

$2.49

$

Usually ships in 4-12 days

0

15

Gravely 06500919

NUT-LK-TOP-FLG M8 ZCC

$2.49

$

In Stock, Qty 5

0

16

Gravely 07400129

SCR,TAP .375-16X.75 HWH TR ZCC

$1.99

$

In Stock, Qty 20+

0

17

Gravely 06400927

WASHER, 3/8" SPRING DISC

$3.99

$

Usually ships in 4-12 days

0
