992284 (Pro-Turn 472) - Gravely Pro-Turn 72" Zero-Turn Mower, Yamaha EFI (SN: 092000 & Above) Deck Belts Blades And Spindles 72" Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Yamaha EFI

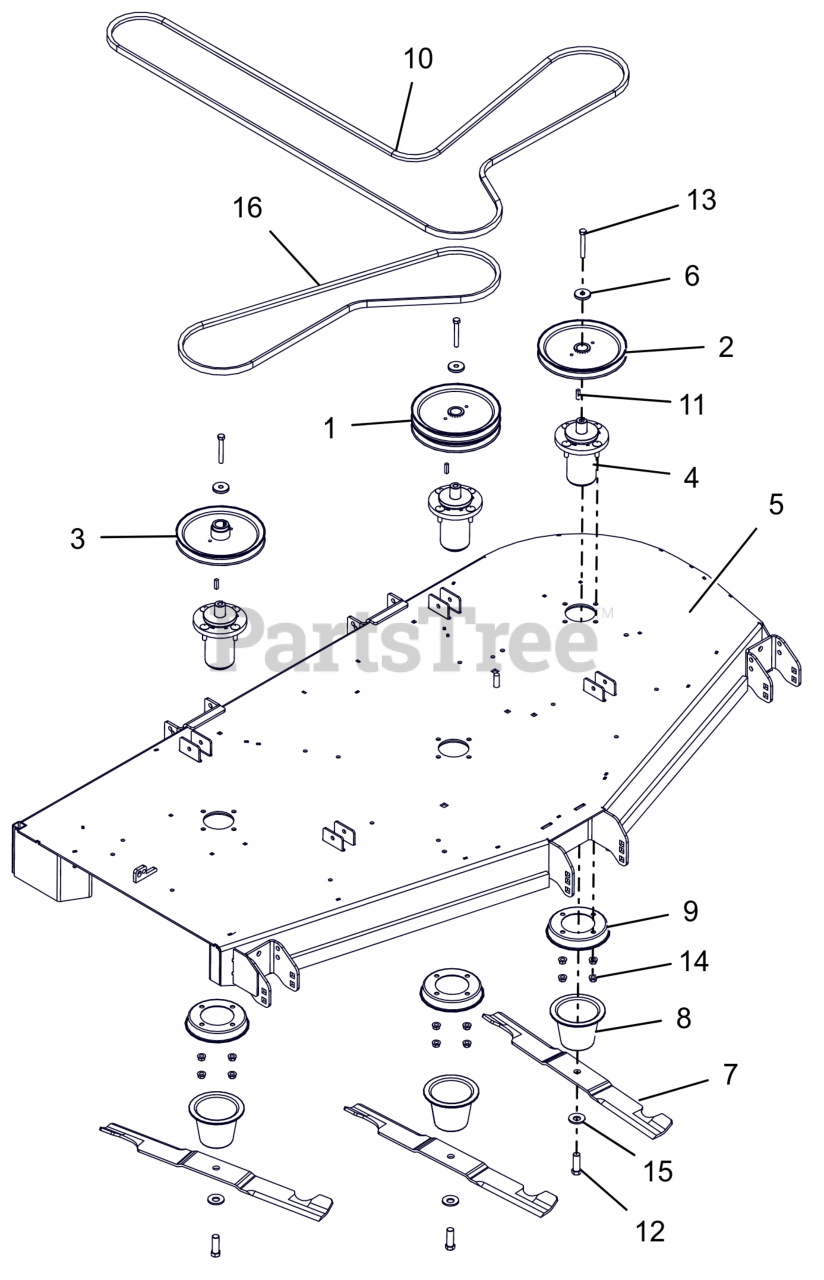

Deck Belts Blades And Spindles 72" Parts Diagram

  • Title

1

Gravely 07337667

SHEAVE-DOUBLE 1.00"IDX8.25"OD
(Superseded to 07337600)

$138.99

$

In Stock, only 2 left!

0

2

Gravely 07337767

SHEAVE-SINGLE 1.00"IDX8.25"OD
(Superseded to 07337700)

$97.99

$

In Stock, only 2 left!

0

3

Gravely 07340867

SHV-SINGLE 1.00"ID X 8.25"OD
(Superseded to 07340800)

$72.99

$

In Stock, only 3 left!

0

4

Gravely 58810800

ASM, MAINT FREE ALUM SPINDLE

$361.99

$

In Stock, Qty 20+

0

5

Gravely 59228100

WLDMT, 72" SIDE DISCHARGE DECK

$1562.99

$

Usually ships in 4-12 days

0

6

Gravely 04530500

RETAINER, SHEAVE

$9.99

$

In Stock, Qty 20+

0

7

Gravely 04774600

BLADE, 72"

$38.99

$

In Stock, Qty 20+

0

8

Gravely 05011500

GUARD, SPINDLE LOWER

$

$

Not available

9

Gravely 05017000

GUARD, SPINDLE TOP

$

$

Not available

10

Gravely 07200731

V-BELT, HB WRAPPED

$125.99

$

In Stock, Qty 16

0

11

Gravely 06611200

KEY, SQ .25X.25X1.00 RC 40-50

$3.99

$

In Stock, Qty 20+

0

12

Gravely 05901822

BLT, HEX .62-18X1.75 G8 ZCC

$4.99

$

In Stock, Qty 20+

0

13

Gravely 05901813

BLT, HEX .38-16X2.75 G8 ZCC

$2.49

$

In Stock, Qty 20+

0

14

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.99

$

In Stock, Qty 20+

0

15

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$5.99

$

In Stock, Qty 20+

0

16

Gravely 07200039

V-BELT, B-COGGED

$79.99

$

In Stock, Qty 15

0
