992292 (Pro-Turn 260) - Gravely Pro-Turn 60" Zero-Turn Mower, Yamaha EFI (SN: 060000 - 061999) Engine - Yamaha MX775V EFI Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Yamaha EFI

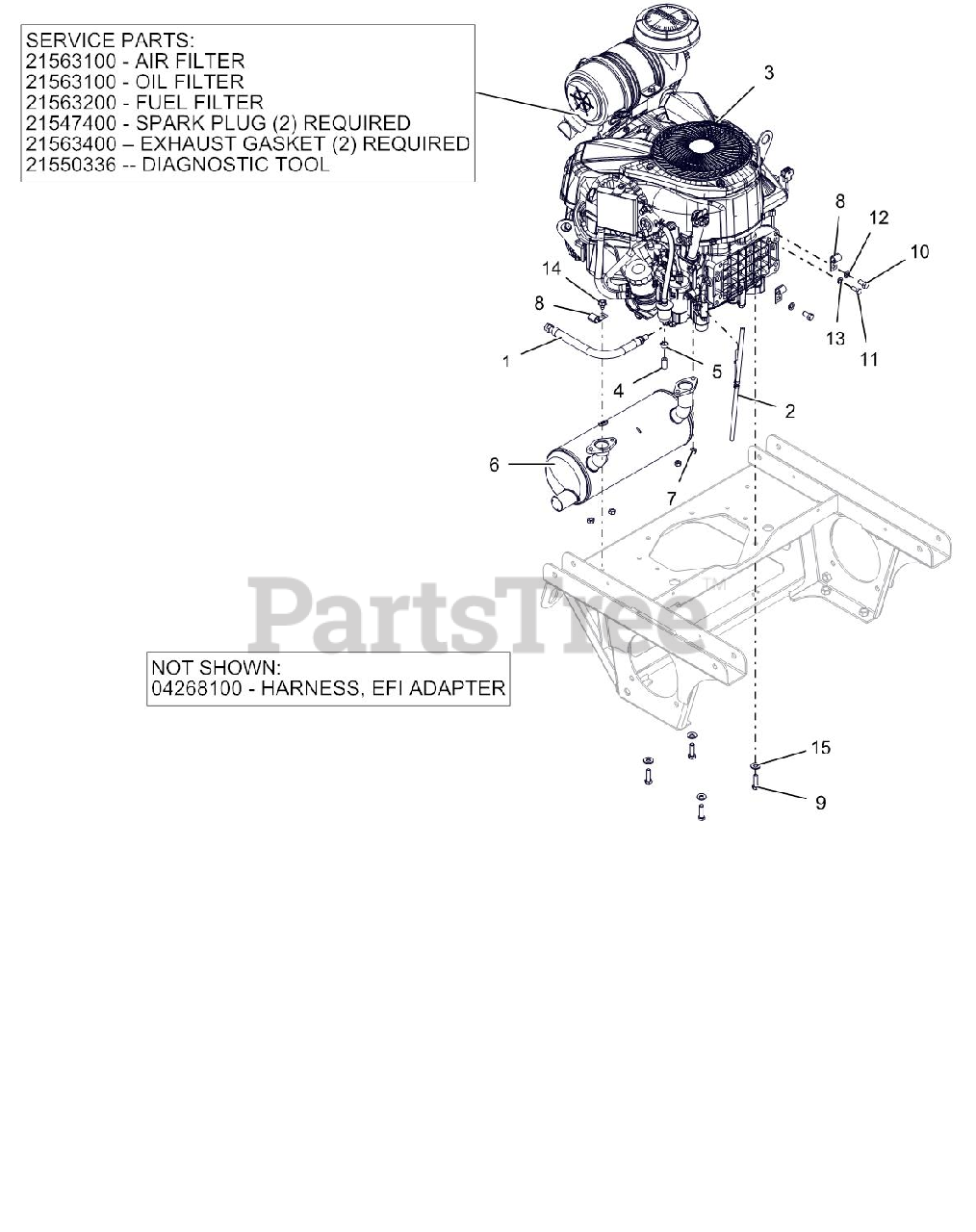

Engine - Yamaha MX775V EFI Parts Diagram

  • Title

1

Gravely 05088200

HOSE, OIL DRAIN

$23.99

$

Usually ships in 4-12 days

0

2

Gravely 05105000

ASM, YAMAHA VAPOR LINE

$26.99

$

Usually ships in 4-12 days

0

3

Gravely 21563400

GASKET, MUFFLER YAMAHA 824

Note: SERVICE PART (2 REQUIRED)

$5.99

$

In Stock, Qty 13

0

3

Gravely 21563200

FILTER-FUEL YAMAHA 824

Note: SERVICE PART

$14.99

$

In Stock, only 4 left!

0

3

Gravely 21563300

AIR FILTER (OUTER) - YAMAHA

Note: SERVICE PART

$77.99

$

In Stock, only 2 left!

0

3

Gravely 21563100

FILTER, OIL - YAMAHA 824

Note: SERVICE PART

$34.99

$

In Stock, only 4 left!

0

3

Gravely 21547400

PLUG, SPARK
(Superseded to 21563037)

Note: SERVICE PART (2 REQUIRED)

$3.99

$

In Stock, Qty 20+

0

3

Gravely 21550336

DIAGOSTIC TOOL, YAMAHA MXV

Note: SERVICE PART

$439.99

$

Usually ships in 4-12 days

0

3

Gravely 08201219

ENGINE, YAMAHA MX775V-EFI
(Superseded to 21563281)

$

$

Not available

4

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.99

$

In Stock, Qty 20+

0

5

Gravely 03278800

CLAMP, FUEL LINE

$1.99

$

In Stock, Qty 20+

0

6

Gravely 05016500

MUFFLER, YAMAHA

$386.99

$

Usually ships in 4-12 days

0

7

Gravely 06500018

NUT-LK-TOP M8-1.25 YWZC
(Superseded to 06500919)

$2.99

$

In Stock, Qty 11

0

8

Gravely 06916000

J-CLAMP

$3.49

$

Usually ships in 4-12 days

0

9

Gravely 05901522

BLT-HEX.38-16X1.25 G5YZ NYTORQ
(Superseded to 05901808)

$2.99

$

In Stock, Qty 20+

0

10

Gravely 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$2.49

$

In Stock, Qty 12

0

11

Gravely 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$2.49

$

In Stock, Qty 20+

0

12

Gravely 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$2.49

$

In Stock, Qty 20+

0

15

Gravely 06400927

WASHER, 3/8" SPRING DISC

$4.99

$

In Stock, Qty 20+

0

16

Gravely 04268100

HARNESS, EFI ADAPTER
(Superseded to 05162200)

Note: SERVICE PART

$96.99

$

Usually ships in 4-12 days

0
