992292 (Pro-Turn 260) - Gravely Pro-Turn 60" Zero-Turn Mower, Yamaha EFI (SN: 070000 & Above) Fuel System - CARB Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Yamaha EFI

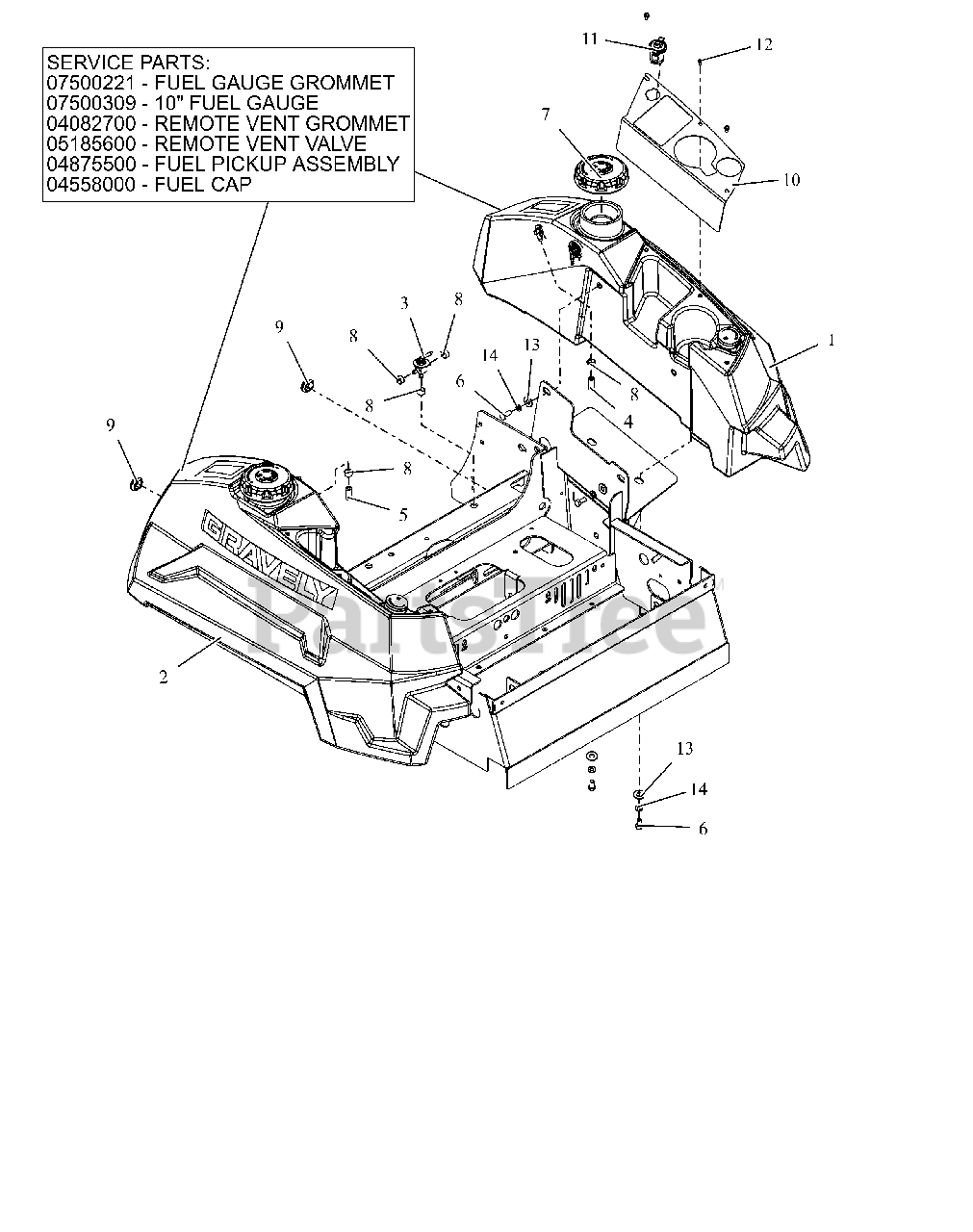

Fuel System - CARB Parts Diagram

  • Title

1

Gravely 05099600

ASM, PT200/400 LH FUEL TANK

$468.99

$

Usually ships in 4-12 days

0

2

Gravely 05099700

ASM, PT200/400 RH FUEL TANK

$468.99

$

Usually ships in 4-12 days

0

2

Gravely 07500221

GROMMET, FUEL GAUGE

Note: SERVICE PART

$6.49

$

In Stock, Qty 14

0

2

Gravely 07500309

GAUGE, REMOTE FUEL SEALED 10"

Note: SERVICE PART

$

$

Not available

2

Gravely 04082700

GROMMET, REMOTE VENT NITRILE

Note: SERVICE PART

$3.99

$

In Stock, Qty 20+

0

2

Gravely 05185600

VALVE, COMBINATION VENT 3/16

Note: SERVICE PART

$18.99

$

In Stock, Qty 12

0

2

Gravely 04875500

ASSM,LRG TANK FUEL PICKUP LINE

Note: SERVICE PART

$18.99

$

In Stock, Qty 15

0

2

Gravely 04558000

CAP, FUEL VENTIN AUTOLOCK
(Superseded to 09190300)

Note: SERVICE PART

$35.99

$

In Stock, Qty 8

0

3

Gravely 09233600

VALVE - FUEL
(Superseded to 09164400)

$46.99

$

In Stock, only 2 left!

0

4

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

5

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

6

Gravely 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 04558100

CAP, FUEL NONVENT AUTOLOCK

$23.99

$

In Stock, only 1 left!

0

8

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

9

Gravely 07500031

GROMMET,RUBBER 5/8 ID/1.13 OD

$3.99

$

Usually ships in 4-12 days

0

10

Gravely 04869153

CUP HOLDER/POCKET PLATE - RED

$40.99

$

Usually ships in 4-12 days

0

11

Gravely 04782900

PORT, 12 VOLT POWER

$13.99

$

Usually ships in 4-12 days

0

12

Gravely 06100211

SCR-MCH 10-24X.38 HWHSTAINLESS

$3.49

$

In Stock, Qty 20+

0

13

Gravely 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0
