992296 (Pro-Turn 260) - Gravely Pro-Turn 60" Zero-Turn Mower, Yamaha MX (SN: 082000 - 089999) Engine - Yamaha MX825V Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Yamaha MX

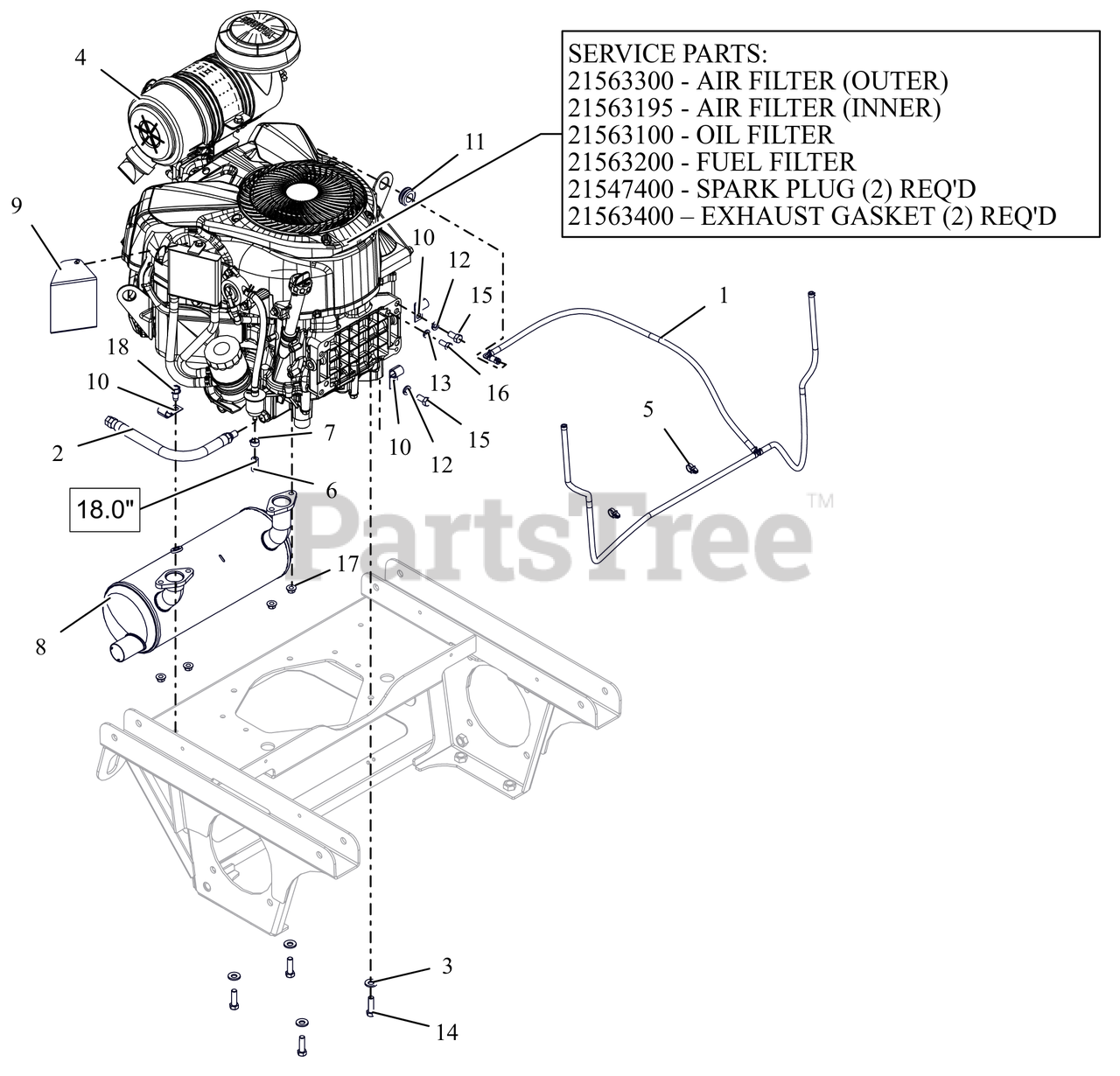

Engine - Yamaha MX825V Parts Diagram

  • Title

1

Gravely 04981600

ASM, VAPOR LINE

$60.99

$

Usually ships in 4-12 days

0

2

Gravely 05088200

HOSE, OIL DRAIN

$23.99

$

Usually ships in 4-12 days

0

3

Gravely 06400927

WASHER, 3/8" SPRING DISC

$3.99

$

In Stock, only 3 left!

0

4

Gravely 08201322

ENGINE, YAMAHA MX 825V
(Superseded to 21563280)

$3656.99

$

Usually ships in 4-12 days

0

4

Gravely 21563300

AIR FILTER (OUTER) - YAMAHA

Note: SERVICE PART

$74.99

$

In Stock, only 3 left!

0

4

Gravely 21563195

AIR FILTER (INNER) - YAMAHA

Note: SERVICE PART

$62.99

$

In Stock, only 2 left!

0

4

Gravely 21563100

FILTER, OIL - YAMAHA 824

Note: SERVICE PART

$33.99

$

In Stock, only 3 left!

0

4

Gravely 21563200

FILTER-FUEL YAMAHA 824

Note: SERVICE PART

$14.99

$

In Stock, Qty 5

0

4

Gravely 21547400

PLUG, SPARK
(Superseded to 21563037)

Note: SERVICE PART

$3.99

$

In Stock, Qty 20+

0

4

Gravely 21563400

GASKET, MUFFLER YAMAHA 824

Note: SERVICE PART

$5.49

$

In Stock, only 2 left!

0

5

Gravely 00367900

ROUTING CLIP (1/2" ID)

$1.99

$

Usually ships in 4-12 days

0

6

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

Note: 18300" Length

$1.49

$

In Stock, Qty 20+

0

7

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

Usually ships in 4-12 days

0

8

Gravely 05016500

MUFFLER, YAMAHA

$370.99

$

Usually ships in 4-12 days

0

9

Gravely 05167500

DEFLECTOR,YAMAH OIL COOLER AIR

$29.99

$

Usually ships in 4-12 days

0

10

Gravely 06916000

J-CLAMP

$2.99

$

Usually ships in 4-12 days

0

11

Gravely 07500423

GROMMET,RUBBER.688 IDX1.000 OD

$6.49

$

Usually ships in 4-12 days

0

12

Gravely 06300116

WSHR,LK-REG .375X.094 ZCC

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06300119

WSHR,LK-REG .312X.078 ZCC

$1.49

$

In Stock, Qty 14

0

14

Gravely 05901808

BLT, HEX .38-16X1.25 G5 ZCC NT

$2.49

$

In Stock, Qty 5

0

15

Gravely 05901702

BLT,HEX .38-16X.75 G5 ZCC

$1.99

$

In Stock, Qty 8

0

16

Gravely 05901704

BLT,HEX .31-18X.75 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

17

Gravely 06500919

NUT-LK-TOP-FLG M8 ZCC

$2.49

$

In Stock, only 3 left!

0

18

Gravely 07400129

SCR,TAP .375-16X.75 HWH TR ZCC

$1.99

$

In Stock, Qty 20+

0
