992309 (PM 260Z) - Gravely Pro-Master 60" Zero-Turn Mower, 31hp Daihatsu (SN: 000101 - 000999) Seat And Hood Frame Parts Diagram

Pro-Master 60" Zero-Turn Mower, 31hp Daihatsu

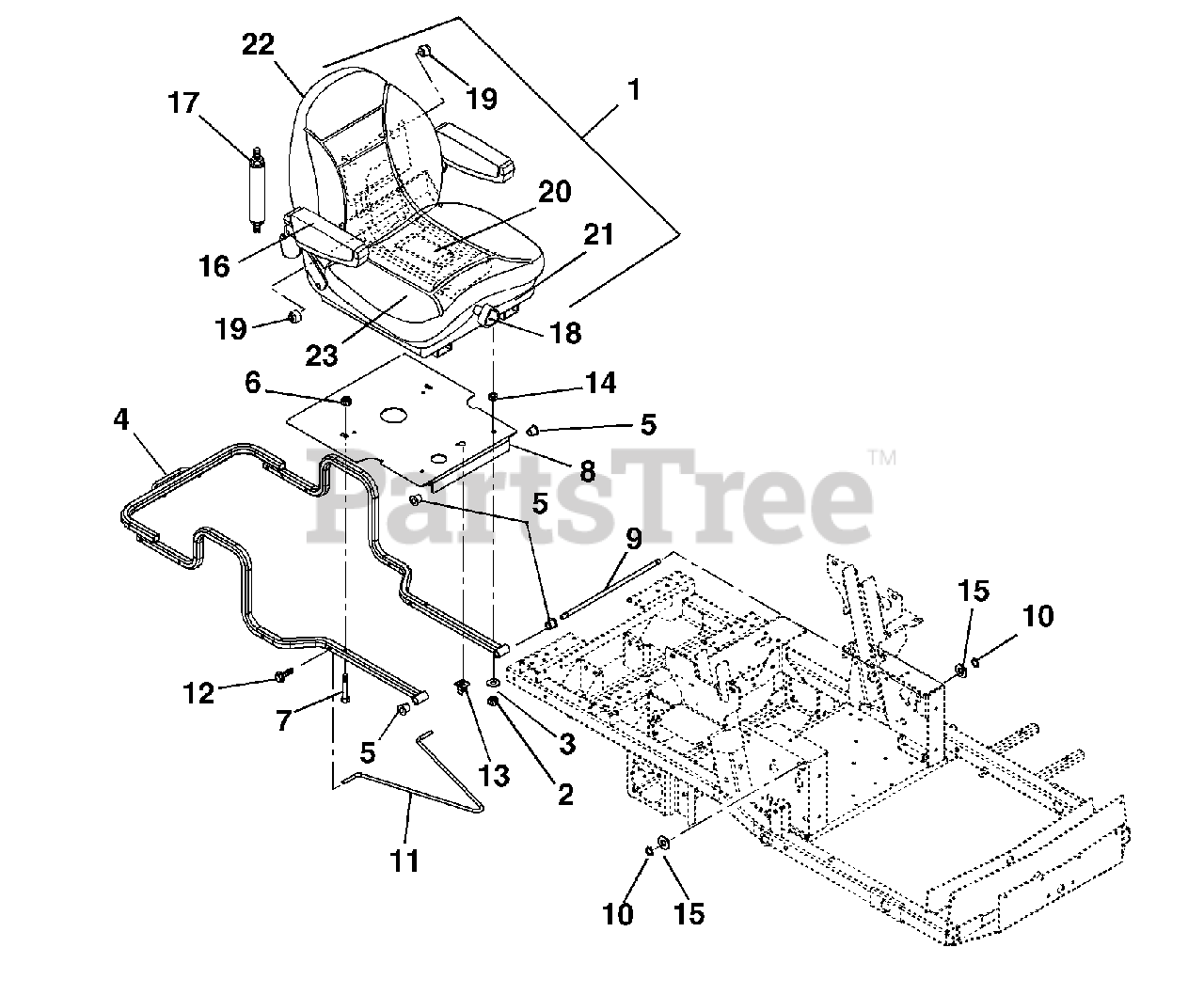

Seat And Hood Frame Parts Diagram

  • Title

1

Gravely 09230000

Seat-Suspension
(Superseded to 79207100)

$

$

Not available

2

Gravely 06541700

Nut-Locking-Nylon M8-1.25
(Superseded to 06500817)

$1.99

$

Usually ships in 4-12 days

0

3

Gravely 06435700

Washer-Flat-Steel .38 x .875 x .083
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 09278753

Weldment, Hood Frame

$527.99

$

Usually ships in 4-12 days

0

5

Gravely 034738

Bushing-Flange .515 x .750 x .745 x 1.00
(Superseded to 05521100)

$2.99

$

In Stock, Qty 10

0

6

Gravely 06542000

Nut-Locking-Top-Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 07056300

Bolt-Rib Neck .38-16 x 1.50

$

$

Not available

8

Gravely 09274151

Weldment, Seat Pivot Mount

$145.99

$

Usually ships in 4-12 days

0

9

Gravely 09245400

Rod-Seat Frame Pivot

$131.99

$

Usually ships in 4-12 days

0

10

Gravely 05717100

Ring-Retaining-External .500 x .050

$2.99

$

In Stock, only 2 left!

0

11

Gravely 09258500

Rod-Prop

$

$

Not available

12

Gravely 07412000

Screw-Tapping .25-20 x .50 Hex Washer Head
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 07534100

Clip

$10.99

$

Usually ships in 4-12 days

0

14

Gravely 039145

Bushing-Sleeve .377 x .624 x .235
(Superseded to 05508900)

$9.99

$

In Stock, only 2 left!

0

15

Gravely 06441900

Washer-Flat-Steel .531 x 1.06 x .095
(Superseded to 06401015)

$1.49

$

In Stock, only 1 left!

0

16

Gravely 59201900

Kit-Arm Pad (1 per bag)

Note: (1 per bag)

$182.99

$

Usually ships in 4-12 days

0

17

Gravely 59201300

Kit-Damper w/Hardware

$212.99

$

Usually ships in 4-12 days

0

18

Gravely 59201600

Kit-Knob (1 per bag)

Note: (1 per bag)

$

$

Not available

19

Gravely 59201700

Kit-Roller (4 per bag)

Note: (4 per bag)

$

$

Not available

20

Gravely 59201800

Kit-Spring/Cable Milsco Seat (1 per bag)

Note: (1 per bag)

$

$

Not available

21

Gravely 59202000

Kit-Adjuster (1 per carton)

Note: (1 per carton)

$268.99

$

Usually ships in 4-12 days

0

22

Gravely 59203200

Kit-Seatback

$

$

Not available

23

Gravely 59202100

Kit-Cushion (1 per carton)
(Superseded to 59203200)

Note: (1 per carton)

$

$

Not available
