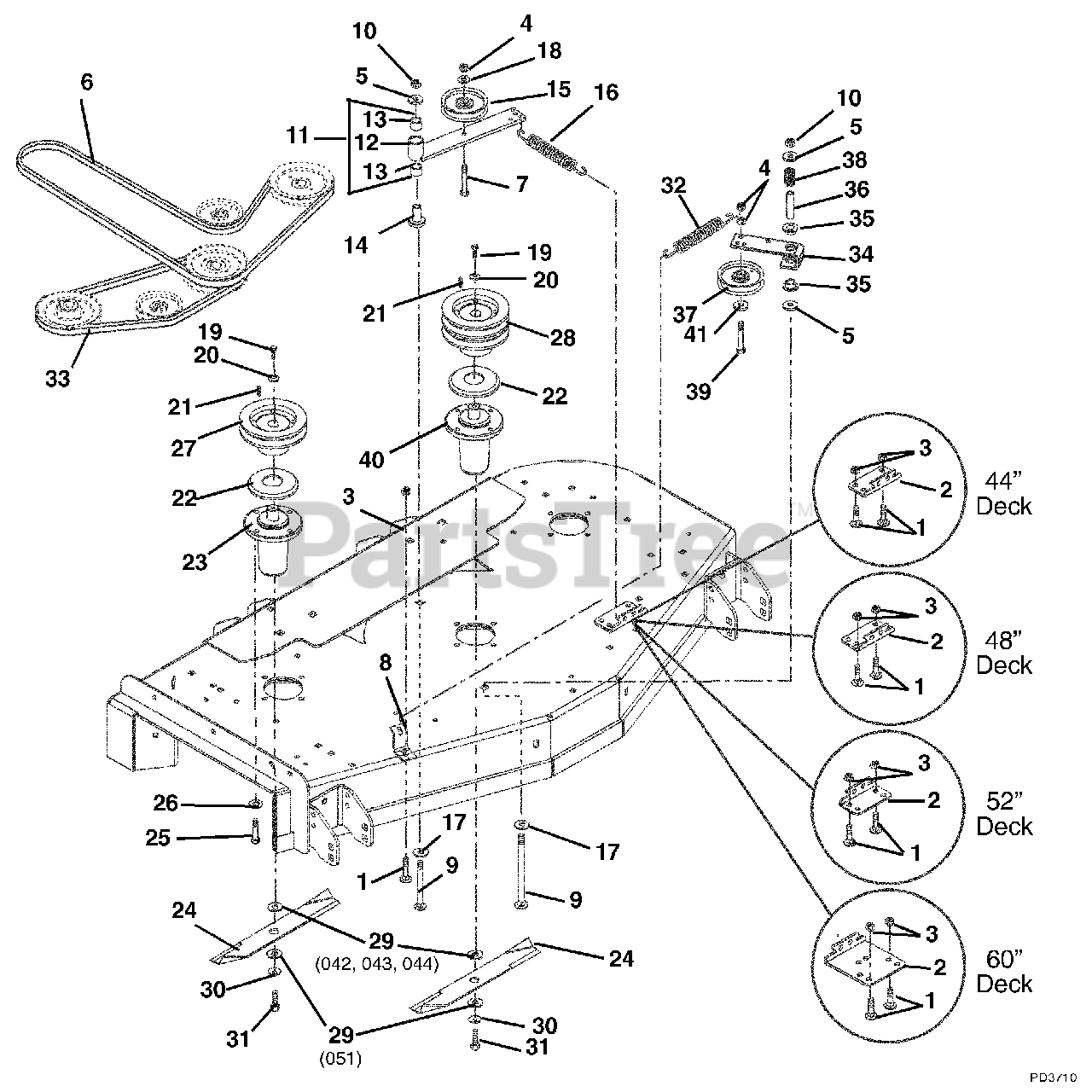

992311 (PM 148Z) - Gravely Pro-Master 48" Zero-Turn Mower, 21hp Kawasaki (SN: 000500 - 000999) Belts, Spindles, Idlers And Blades Parts Diagram

Pro-Master 48" Zero-Turn Mower, 21hp Kawasaki

Belts, Spindles, Idlers And Blades Parts Diagram

  • Title

1

Gravely 06223900

Bolt-Round Head Square Neck .38-16 x .75 Grade 5 (042, 043, 044, 054, 310, 311)
(Superseded to 06200312)

Note: (042, 043, 044, 054, 310, 311)

$1.49

$

Usually ships in 4-12 days

0

1

Gravely 06221400

Bolt-Round Head Square Neck .38-16 x 1.25 Grade 2 (051, 055)
(Superseded to 06224100)

Note: (051, 055)

$2.49

$

In Stock, Qty 20+

0

2

Gravely 09248353

Bracket, Spring (042, 043, 044, 054 310, 311)

Note: (042, 043, 044, 054 310, 311)

$38.99

$

In Stock, only 4 left!

0

2

Gravely 09099700

Bracket, Spring (051, 055)

Note: (051, 055)

$64.99

$

Usually ships in 4-12 days

0

3

Gravely 06542000

Nut-Locking-Top-Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 415543

Washer-Flat-Steel .531 x 1.25 x .10
(Superseded to 06441000)

$2.99

$

In Stock, Qty 16

0

6

Gravely 07241100

V-Belt B-Section 51.50 x .625 (042, 044, 054, 310)

Note: (042, 044, 054, 310)

$119.99

$

In Stock, Qty 5

0

6

Gravely 07241000

V-Belt, B-Section 48.80 x .625 (043, 311)

Note: (043, 311)

$113.99

$

In Stock, only 1 left!

0

6

Gravely 07239300

V-Belt, B-Section 55.75 x .625 (051, 055)

Note: (051, 055)

$102.99

$

In Stock, only 3 left!

0

7

Gravely 05961400

Bolt-Hex .38-16 x 2.75 Grade 5
(Superseded to 05901611)

$3.99

$

In Stock, Qty 20+

0

8

Gravely 09245353

Anchor, Spring

$40.99

$

Usually ships in 4-12 days

0

9

Gravely 06225000

Bolt-Round Head Square Neck .50-13 x 3.50 Grade 5
(Superseded to 06200317)

$5.99

$

In Stock, only 1 left!

0

10

Gravely 06543600

Nut-Locking-Top-Flange .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 09248400

Assembly, Idler Pivot Arm (Contains Items 12 & 13)
(Superseded to 09286500)

Note: (Contains Items 12 & 13)

$164.99

$

Usually ships in 4-12 days

0

12

Gravely 09248551

Weldment, Idler Pivot Arm

$

$

Not available

13

Gravely 05435800

Bearing, 1.00 x 1.12 x .75

$9.49

$

In Stock, Qty 20+

0

14

Gravely 07053100

Bearing, Pedestal Powdered Metal
(Superseded to 07000031)

$79.99

$

In Stock, Qty 7

0

15

Gravely 07327800

Idler-Flat 4.00 x .38 (2.00 W)

Note: (2.00 W)

$79.99

$

In Stock, Qty 15

0

16

Gravely 08335100

Spring-External .09 x 1.00 x 6.00
(Superseded to 08300513)

$34.99

$

In Stock, Qty 14

0

17

Gravely 06441500

Washer-Flat-Steel .755 x 1.375 x .062 (042, 043, 044, 054, 055, 310, 311)
(Superseded to 06401016)

Note: (042, 043, 044, 054, 055, 310, 311)

$3.99

$

In Stock, Qty 16

0

18

Gravely 446470

Washer-Flat-Steel .375 x 1.125 x .065
(Superseded to 06401139)

$2.49

$

In Stock, Qty 5

0

19

Gravely 05974500

Bolt-Hex .38-16 x 1.00 Grade 8
(Superseded to 05901721)

$1.99

$

In Stock, Qty 18

0

20

Gravely 00597000

Washer-Cupped-Serrated .375
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

21

Gravely 06602200

Key-Straight .25 x 1.00 x .25

$3.99

$

In Stock, Qty 10

0

22

Gravely 09238200

Slinger-Dust

$9.49

$

In Stock, Qty 16

0

23

Gravely 59201000

Assembly, Maintenance Free Spindle
(Superseded to 59114000)

$239.99

$

In Stock, Qty 8

0

24

Gravely 04919100

Blade- Mower (042, 043)

Note: (042, 043)

$25.99

$

In Stock, Qty 20+

0

24

Gravely 04936000

Blade, 32" (16.25) (310, 311)

Note: (16.25) (310, 311)

$28.99

$

Usually ships in 4-12 days

0

24

Gravely 04916400

Blade- Mower (18.00) (044, 054)

Note: (18.00) (044, 054)

$26.99

$

In Stock, Qty 20+

0

24

Gravely 09081200

Blade, Mower 60" (051, 055)

Note: (051, 055)

$29.99

$

In Stock, Qty 20+

0

24

Gravely 04920600

Blade- Mulching (042, 043)
(Superseded to 05244100)

Note: (042, 043)

$26.99

$

In Stock, Qty 18

0

24

Gravely 04917900

Blade- Mulching (18.00) (044, 054)
(Superseded to 00273100)

Note: (18.00) (044, 054)

$25.99

$

In Stock, Qty 20+

0

24

Gravely 08899100

Blade, Mower 60" Tungsten Mulch (051, 055)

Note: (051, 055)

$

$

Not available

25

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 06308800

Washer-Locking .38 x .094 Regular
(Superseded to 06300116)

$0.99

$

In Stock, Qty 19

0

27

Gravely 09242500

Weldment, Spindle Sheave 5.00 (042, 043, 044, 054, 310, 311)
(Superseded to 07331067)

Note: (042, 043, 044, 054, 310, 311)

$113.99

$

In Stock, Qty 5

0

27

Gravely 09238500

Weldment, Spindle Sheave 6.00 (051, 055)

Note: (051, 055)

$45.99

$

In Stock, Qty 6

0

28

Gravely 09253200

Sheave, Double (5.25) (042, 043, 044, 054, 310, 311)

Note: (5.25) (042, 043, 044, 054, 310, 311)

$56.99

$

In Stock, only 3 left!

0

28

Gravely 09253100

Sheave, Double (6.25") (051, 055)

Note: (6.25") (051, 055)

$85.99

$

In Stock, only 3 left!

0

29

Gravely 06435200

Washer, Flat .64 x 1.81 x .250
(Superseded to 06400829)

$3.99

$

In Stock, Qty 8

0

30

Gravely 06445700

Washer-Bellville .63 x 1.625 x .14

$4.99

$

In Stock, Qty 20+

0

31

Gravely 05978900

Bolt-Hex .62-18 x 1.75 Grade 8
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

32

Gravely 08336100

Spring, Extension
(Superseded to 08300512)

$15.99

$

In Stock, Qty 20+

0

33

Gravely 07202900

V-Belt 5L-Section 49.97 x .672 (042, 043, 310, 311)

Note: (042, 043, 310, 311)

$45.99

$

In Stock, only 4 left!

0

33

Gravely 049028

V-Belt B-Section 19.10 x .672 (044, 054)
(Superseded to 07222300)

Note: (044, 054)

$56.99

$

In Stock, only 3 left!

0

33

Gravely 07235000

V-Belt B-Section 23.94 x .625 (051, 055)

Note: (051, 055)

$50.99

$

In Stock, Qty 5

0

34

Gravely 034120

Arm, Idler Pivot
(Superseded to 08905900)

$82.99

$

In Stock, only 1 left!

0

35

Gravely 010174

Bushing-Flange .762 x 1.00 x .58 x 1.48 Nylon
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

36

Gravely 034119

Spacer .56 x .75 x 2.44 Steel
(Superseded to 08820500)

$17.99

$

In Stock, only 1 left!

0

37

Gravely 07327600

V-Idler, 4.00 x .38

$37.99

$

In Stock, Qty 9

0

38

Gravely 020444

Spring-Compression .085 x .80 x 1.00
(Superseded to 08329100)

$13.99

$

In Stock, only 2 left!

0

39

Gravely 05962900

Bolt-Hex .38-16 x 2.25 Grade 5
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

40

Gravely 59202600

Spindle Assembly (Center)
(Superseded to 59225700)

Note: (Center)

$239.99

$

Usually ships in 4-12 days

0

41

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+
