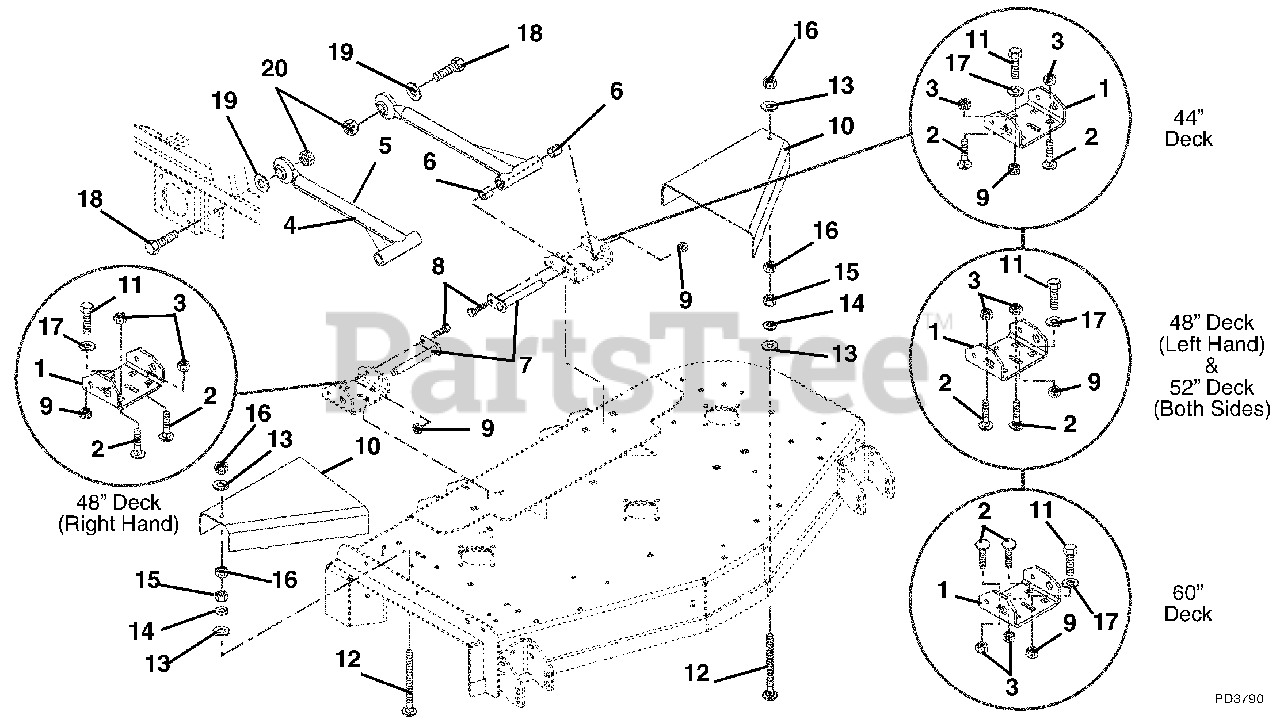

992311 (PM 148Z) - Gravely Pro-Master 48" Zero-Turn Mower, 21hp Kawasaki (SN: 000500 - 000999) Mounting Arms And Belt Guards Parts Diagram

Pro-Master 48" Zero-Turn Mower, 21hp Kawasaki

Mounting Arms And Belt Guards Parts Diagram

  • Title

1

Gravely 09240453

Bracket, Mower Mounting (Rear)

Note: (Rear)

$34.99

$

Usually ships in 4-12 days

0

2

Gravely 06221200

Bolt-Round Head Square Neck .50-13 x .75 Grade 5

$5.99

$

Usually ships in 4-12 days

0

3

Gravely 06519700

Nut, Locking Center Jam .50-13

$2.49

$

Usually ships in 4-12 days

0

4

Gravely 09282000

Assembly, Mower Mounting

Note: (Includes Items 5 and 6)

$213.99

$

Usually ships in 4-12 days

0

5

Gravely 09282151

Mower Mounting Arm

$142.99

$

Usually ships in 4-12 days

0

6

Gravely 05435900

Bearing, .75 x .875 x 1.00

$5.99

$

In Stock, Qty 7

0

7

Gravely 09238900

Weldment, Mower Mounting Pin

$60.99

$

In Stock, only 3 left!

0

8

Gravely 05959400

Bolt-Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, only 2 left!

0

9

Gravely 06542000

Nut-Locking-Top-Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 09283553

Guard, Pulley (042, 043)

Note: (042, 043)

$83.99

$

Usually ships in 4-12 days

0

10

Gravely 09246353

Guard, Pulley Right Hand (044)

Note: (044)

$68.99

$

In Stock, only 1 left!

0

10

Gravely 09246253

Guard, Pulley Left Hand (044)

Note: (044)

$29.99

$

In Stock, only 3 left!

0

10

Gravely 09240853

Guard, Pulley Left Hand (051)
(Superseded to 09240851)

Note: (051)

$62.99

$

In Stock, only 1 left!

0

10

Gravely 09240753

Guard, Pulley Right Hand (051)
(Superseded to 09240751)

Note: (051)

$46.99

$

In Stock, only 2 left!

0

11

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06225300

Bolt-Round Head Square Neck Full Thread .312-18 x 3.50 (042, 043,

Note: 044, 054, 310, 311)

$3.99

$

Usually ships in 4-12 days

0

12

Gravely 06225300

Bolt-Round Head Square Neck Full Thread .312-18 x 3.50

Note: (051, 055)

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065 (042, 043, 044, 054,
(Superseded to 06401017)

Note: 310, 311)

$0.99

$

In Stock, Qty 8

0

13

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065 (051, 055)
(Superseded to 06401017)

Note: (051, 055)

$0.99

$

In Stock, Qty 8

0

14

Gravely 06308600

Washer-Locking .31 x .078 (042, 043, 044, 054, 310, 311)
(Superseded to 06300119)

Note: (042, 043, 044, 054, 310, 311)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06308600

Washer-Locking .31 x .078 (051, 055)
(Superseded to 06300119)

Note: (051, 055)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 06529200

Nut-Hex .31-18 (042, 043, 044, 054, 310, 311)
(Superseded to 06500938)

Note: (042, 043, 044, 054, 310, 311)

$0.99

$

In Stock, Qty 16

0

15

Gravely 06529200

Nut-Hex .31-18 (051, 055)
(Superseded to 06500938)

Note: (051, 055)

$0.99

$

In Stock, Qty 16

0

16

Gravely 06529800

Nut-Locking-Center .31-18 (042, 043, 044, 054, 310, 311)
(Superseded to 06500826)

Note: (042, 043, 044, 054, 310, 311)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06529800

Nut-Locking-Center .31-18 (051, 055)
(Superseded to 06500826)

Note: (051, 055)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 05969500

Bolt-Hex .875-9 x 2.75 Grade 5

$7.99

$

In Stock, only 2 left!

0

19

Gravely 06444700

Washer-Flat-Steel .875 x 1.50 x .120
(Superseded to 06401207)

$3.99

$

In Stock, Qty 20+

0

20

Gravely 06539700

Nut-Locking-Center .875-9

$5.99

$

In Stock, only 4 left!

0
