992311 (PM 148Z) - Gravely Pro-Master 48" Zero-Turn Mower, 21hp Kawasaki (SN: 002000 - 002500) Brakes Parts Diagram

Pro-Master 48" Zero-Turn Mower, 21hp Kawasaki

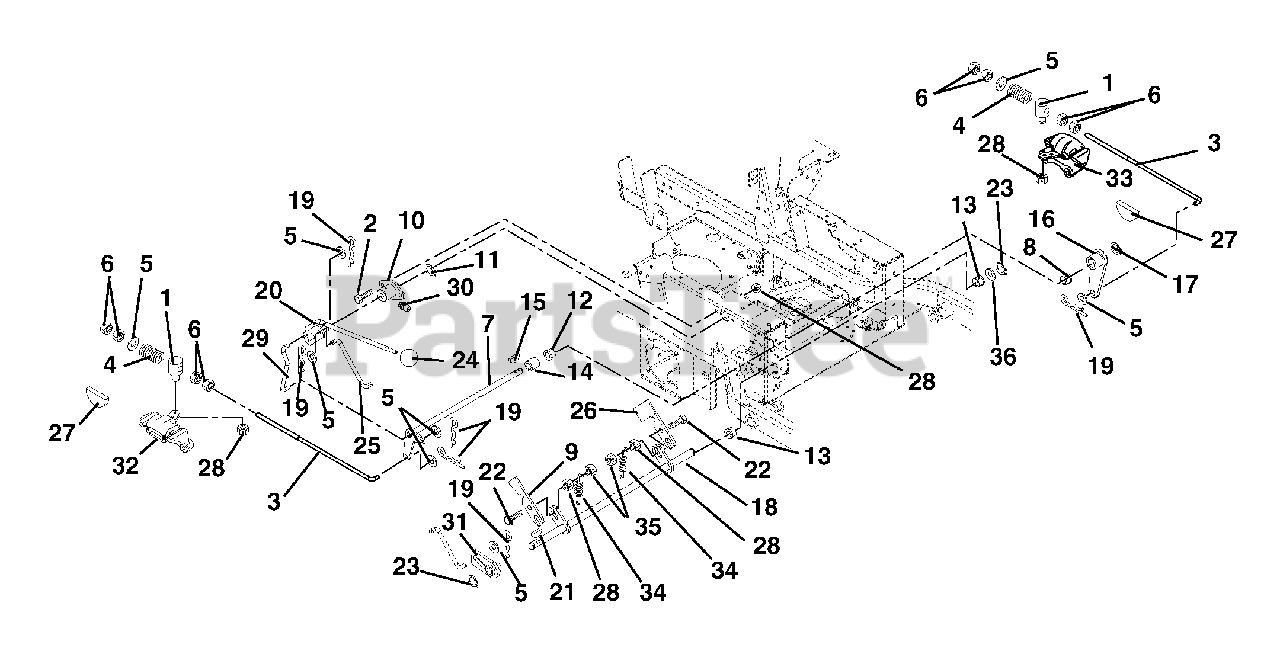

Brakes Parts Diagram

  • Title

1

Gravely 09267300

PIN, PIVOT/TRUNNION

$7.49

$

In Stock, only 2 left!

0

2

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 09248000

ROD - BRAKE 12 INCH

$18.99

$

Usually ships in 4-12 days

0

4

Gravely 08328500

SG-COMP .142 X .710 X 2.00

$21.99

$

Usually ships in 4-12 days

0

5

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 09285500

WMT, BRAKE CROSS SHAFT

$76.99

$

Usually ships in 4-12 days

0

8

Gravely 045787

BSHG-FLG .630X1.000X.625 NY
(Superseded to 05517400)

$7.49

$

Usually ships in 4-12 days

0

9

Gravely 09267700

SLIDE, INTERLOCKING BRAKE

$26.99

$

Usually ships in 4-12 days

0

10

Gravely 05534100

BUSHING, FLANGED (WITH HOLE)

$47.99

$

In Stock, only 4 left!

0

11

Gravely 05709200

RG-RTNG-EXT .625X.050

$2.99

$

Usually ships in 4-12 days

0

12

Gravely 010174

BSHG-FLG .762X1.0X.580X1.48 NY
(Superseded to 05518400)

$5.49

$

In Stock, Qty 15

0

13

Gravely 05503100

BSHG-FLG.500X.750X.750X1.000BR

$10.99

$

In Stock, only 4 left!

0

14

Gravely 05500900

BSHG-SLV .750X1.000X.750

$10.99

$

Usually ships in 4-12 days

0

15

Gravely 124549

KEY-WDRF .19X.75 HRD #9
(Superseded to 06608700)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 09267900

WMT, BRAKE ARM

$152.99

$

Usually ships in 4-12 days

0

17

Gravely 05709200

RG-RTNG-EXT .625X.050

$2.99

$

Usually ships in 4-12 days

0

18

Gravely 09284000

WMT, MECHANICAL BRAKE

$105.99

$

Usually ships in 4-12 days

0

19

Gravely 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, only 4 left!

0

20

Gravely 09269300

WMT, BRAKE ACTUATING
(Superseded to 00277400)

$87.99

$

Usually ships in 4-12 days

0

21

Gravely 124545

KEY-WDRF .13X.63 HRD#5
(Superseded to 06608400)

$2.99

$

In Stock, only 1 left!

0

22

Gravely 05947500

BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.99

$

In Stock, Qty 11

0

23

Gravely 05717100

RG-RTNG-EXT .500X.050 (SNAP)

$2.99

$

In Stock, Qty 20+

0

24

Gravely 039360

KNOB-STEERING LOCK
(Superseded to 07505200)

$22.99

$

In Stock, only 3 left!

0

25

Gravely 09268400

LINKAGE, BRAKE ACTUATING

$30.99

$

Usually ships in 4-12 days

0

26

Gravely 09275900

INTERLOCK, SAFETY SWITCH

$17.99

$

Usually ships in 4-12 days

0

27

Gravely 09200600

PAD SET, DISK BRAKE

$60.99

$

In Stock, only 4 left!

0

28

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 09268300

LINKAGE, BRAKE ACTUATING

$34.99

$

Usually ships in 4-12 days

0

30

Gravely 411027

FTG,LUBE, .25-28 SELF THREAD
(Superseded to 07012600)

$

$

Not available

31

Gravely 09268100

WMT, PARKING BRAKE HUB

$194.99

$

Usually ships in 4-12 days

0

32

Gravely 09279000

BRAKE, RH CALIPER

$369.99

$

Usually ships in 4-12 days

0

33

Gravely 09279100

BRAKE, LH CALIPER

$356.99

$

Usually ships in 4-12 days

0

34

Gravely 08328700

SG-TENS .061 X .50 X 3.0 WLD 4

$21.99

$

Usually ships in 4-12 days

0

35

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

36

Gravely 06439200

WSHR-FL-STL .505X1.00X.062YWZC
(Superseded to 06401112)

$1.49

$

In Stock, Qty 20+

0
