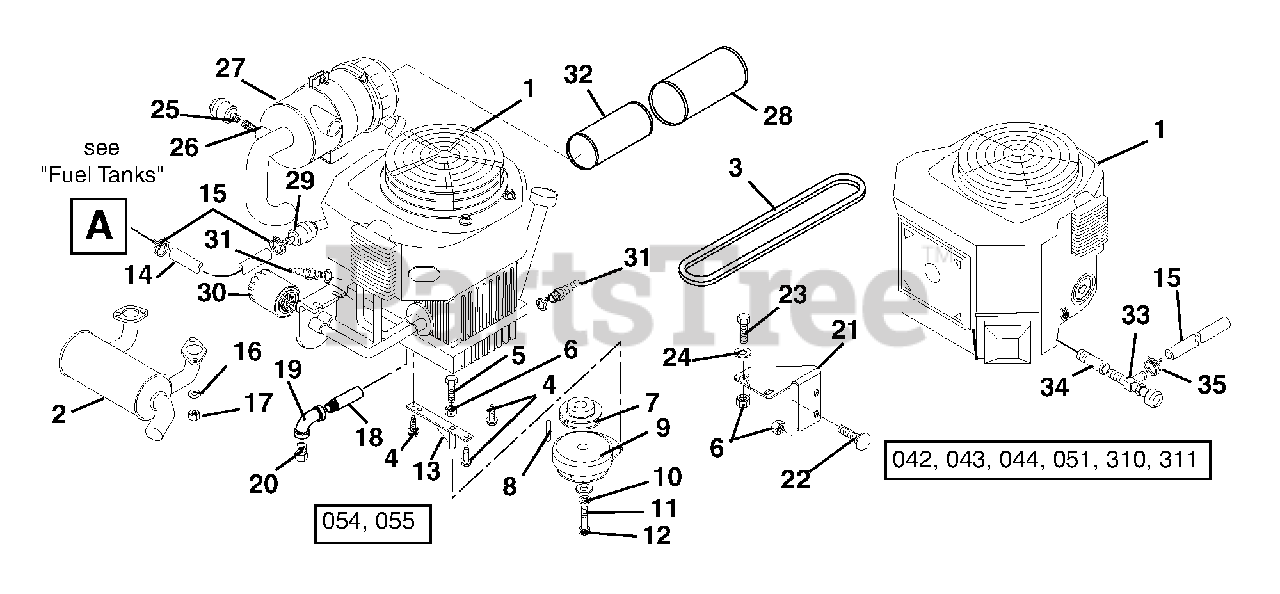

992311 (PM 148Z) - Gravely Pro-Master 48" Zero-Turn Mower, 21hp Kawasaki (SN: 002000 - 002500) Engine And Clutch Parts Diagram

Pro-Master 48" Zero-Turn Mower, 21hp Kawasaki

Engine And Clutch Parts Diagram

  • Title

1

Gravely 08270000

ENG,25HP KOHLER W/RMT OILFILTR

Note: (054, 055)

$

$

Not available

Gravely 08268800

ENGINE, 19HP KAWASAKI

Note: (042, 310)

$

$

Not available

Gravely 08268000

ENGINE, KAWASAKI 21HP

Note: (043, 311)

$

$

Not available

Gravely 08268900

ENGINE, 23HP KAWASAKI

Note: (044, 051)

$

$

Not available

2

Gravely 09294800

MUFFLER, KOHLER
(Superseded to 00470400)

Note: (054, 055)

$218.99

$

In Stock, only 2 left!

0

Gravely 09281600

MUFFLER, KAW (INTERMEDIATE-Z)

Note: (042, 043, 044, 051, 310, 311)

$298.99

$

Usually ships in 4-12 days

0

3

Gravely 07218000

V-BELT, HA-RAW EDGE
(Superseded to 07200428)

$53.99

$

In Stock, Qty 20+

0

4

Gravely 07414100

SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

$3.99

$

In Stock, Qty 20+

0

5

Gravely 05952400

BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$1.99

$

In Stock, Qty 15

0

6

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

Note: (054, 055)

$1.49

$

In Stock, Qty 20+

0

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

Note: (042, 043, 044, 051, 310, 311)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 07327700

PLY-V 4.00 X 1.12 KEYWAY 1.54

$76.99

$

In Stock, Qty 10

0

8

Gravely 039160

KEY-SQ .25X.625X.25 SAE 8630
(Superseded to 06602700)

$3.99

$

In Stock, Qty 20+

0

9

Gravely 09232700

ELECTRIC CLUTCH
(Superseded to 00389900)

$504.99

$

In Stock, only 1 left!

0

10

Gravely 06445000

WSHR-FL-STL .515X1.625X.250 YZ

$6.49

$

In Stock, Qty 20+

0

11

Gravely 06309300

WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 20+

0

12

Gravely 05964600

BLT-HEX .44-20X2.50 GR5 YWZC
(Superseded to 05902017)

$2.99

$

In Stock, Qty 7

0

13

Gravely 09282300

WMT, CLUTCH ANCHOR

$92.99

$

Usually ships in 4-12 days

0

14

Gravely 021134

HOSE, .25 LOW-PERM BULK GAS
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06939100

CLAMP-HOSE WIRE .490/.510X.116

$3.99

$

In Stock, Qty 20+

0

16

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

Note: (Included with item 1)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06538600

NUT-HEX M8-1.25 YWZC

Note: (Included with item 1)

$2.49

$

Usually ships in 4-12 days

0

18

Gravely 02749600

NIPPLE

Note: (054, 055)

$9.99

$

Usually ships in 4-12 days

0

19

Gravely 07023500

ELBOW .375-18 NPTF

Note: (054, 055)

$

$

Not available

20

Gravely 00113800

PIPE PLUG

Note: (054, 055)

$6.49

$

Usually ships in 4-12 days

0

21

Gravely 09295751

BRKT, OIL FILTER MTG - BLACK

Note: (054, 055)

$

$

Not available

22

Gravely 06212200

BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

Note: (054, 055)

$1.99

$

In Stock, Qty 20+

0

23

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

Note: (054, 055)

$1.99

$

In Stock, Qty 20+

0

24

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

Note: (054, 055)

$1.99

$

In Stock, Qty 20+

0

25

Gravely 09258800

FILTER MINDER

Note: (054, 055)

$

$

Not available

26

Gravely 07065800

NIPPLE, 1/8"NPT

Note: (054, 055)

$

$

Not available

27

Gravely 09257500

AIR CLEANER ASSEMBLY
(Superseded to 03782600)

$181.99

$

Usually ships in 4-12 days

0

28

Gravely 21537000

ELEMENT, OUTER PRIMARY

$37.99

$

In Stock, Qty 20+

0

29

Gravely 21539500

FILTER, FUEL

Note: (054, 055)

$18.99

$

In Stock, Qty 20+

0

Gravely 21410800

FILTER, FUEL - KOH CV20
(Superseded to 21541500)

Note: (042, 043, 044, 051, 310, 311)

$13.99

$

In Stock, Qty 20+

0

30

Gravely 21397200

FILTER, OIL - KOH CV20
(Superseded to 20715100)

Note: (054, 055)

$21.99

$

Usually ships in 4-12 days

0

Gravely 21535800

FILTER,OIL - KAW
(Superseded to 49065-0724)

Note: (042, 043, 044, 051, 310, 311)

$18.99

$

Usually ships in 2-5 days

0

31

Gravely 21525900

SPARK PLUG
(Superseded to 21541700)

Note: (054, 055)

$7.49

$

In Stock, Qty 20+

0

Gravely 21536100

PLUG, SPARK

Note: (042, 043, 044, 051, 310, 311)

$10.99

$

In Stock, Qty 20+

0

32

Gravely 21536900

ELEMENT, INNER SAFETY

$29.99

$

In Stock, Qty 11

0

33

Gravely 035329

DRAIN, 1/2" OIL
(Superseded to 00429000)

Note: (042, 043, 044, 310, 311)

$40.99

$

In Stock, only 3 left!

0

34

Gravely 035328

ADAPTER, OIL DRAIN
(Superseded to 03493100)

Note: (042, 043, 044, 310, 311)

$6.49

$

Usually ships in 4-12 days

0

35

Gravely 021134

HOSE, .25 LOW-PERM BULK GAS
(Superseded to 03278100)

Note: (042, 043, 044, 310, 311)

$1.49

$

In Stock, Qty 20+

0
