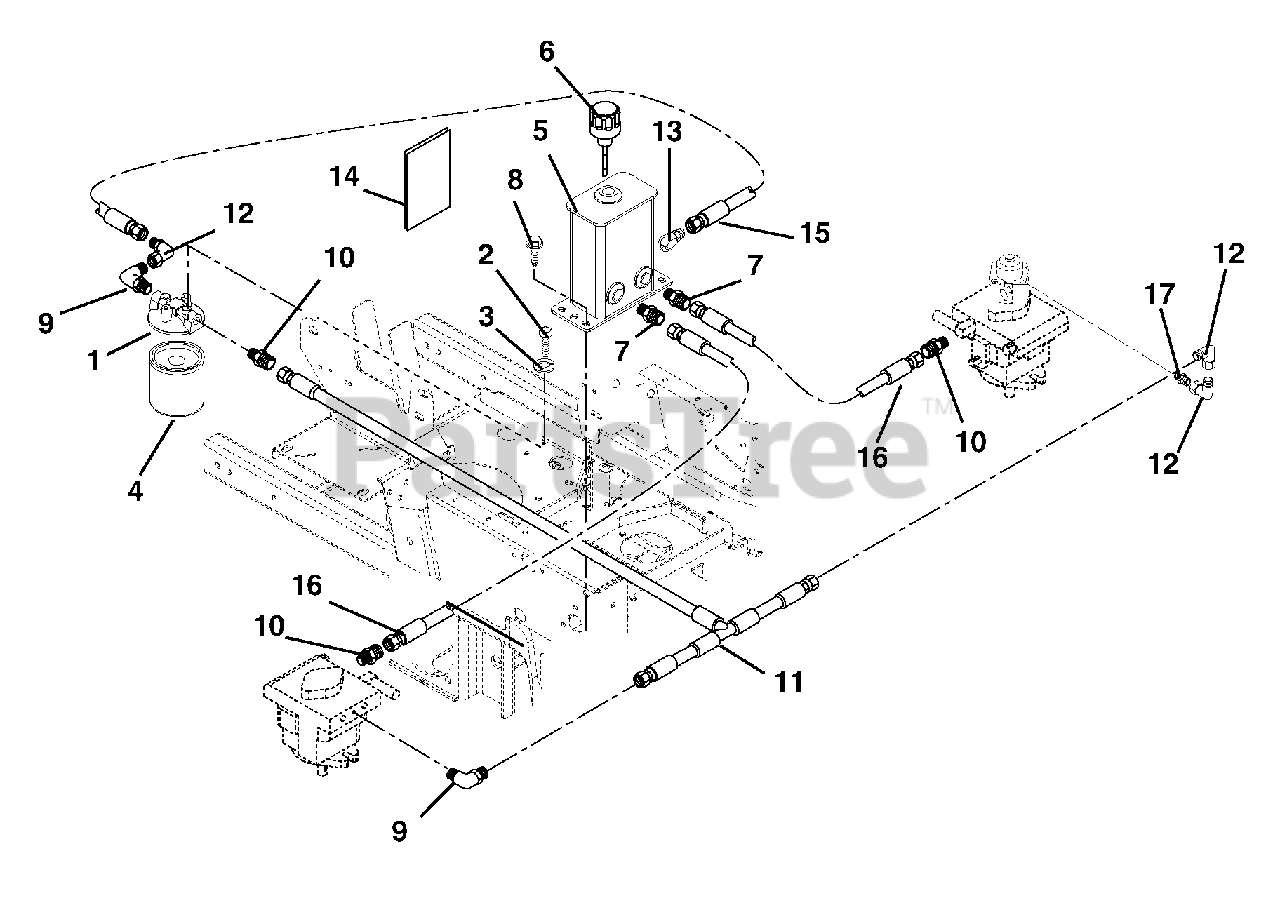

992311 (PM 148Z) - Gravely Pro-Master 48" Zero-Turn Mower, 21hp Kawasaki (SN: 002000 - 002500) Hydraulic Tank, Filter And Pump To Tank Circuit Parts Diagram

Pro-Master 48" Zero-Turn Mower, 21hp Kawasaki

Hydraulic Tank, Filter And Pump To Tank Circuit Parts Diagram

  • Title

1

Gravely 09072100

HEAD, FILTER

$62.99

$

In Stock, only 1 left!

0

2

Gravely 05947900

BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, only 3 left!

0

3

Gravely 06308400

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 9

0

4

Gravely 09246900

ELEMENT, FILTER BE-40-0

$28.99

$

In Stock, Qty 5

0

5

Gravely 00161051

WMT, HYDRAULIC TANK

$

$

Not available

6

Gravely 09273900

BREATHER, DIPSTICK

$85.99

$

In Stock, only 1 left!

0

7

Gravely 07061100

ADPT - STRAIGHT 6-8F50X

$

$

Not available

8

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 018828

FTG, 90 9/16 MOR X 9/16 MJIC
(Superseded to 00313270)

$9.99

$

Usually ships in 4-12 days

0

10

Gravely 07017500

ADPT-PIPE (0503-6-6)

$12.99

$

In Stock, only 2 left!

0

11

Gravely 00161200

HOSE, TEE ASSEMBLY 3/8"

$

$

Not available

12

Adapter

$

$

Not available

13

Gravely 07000002

FTG HYD 45DEG M6J-M8O

$

$

Not available

14

Gravely 09286900

SHEILD, HEAT 5.50X4.50

$21.99

$

Usually ships in 4-12 days

0

15

Gravely 09282500

HOSE, HYD .38-9-0K F6J0-F6J0

$25.99

$

Usually ships in 4-12 days

0

16

Gravely 00161100

HOSE, HYD .38-3-0K F6J0-F6J9

$64.99

$

Usually ships in 4-12 days

0

17

Gravely 09234700

ADP 0503-4-6

$7.49

$

Usually ships in 4-12 days

0
