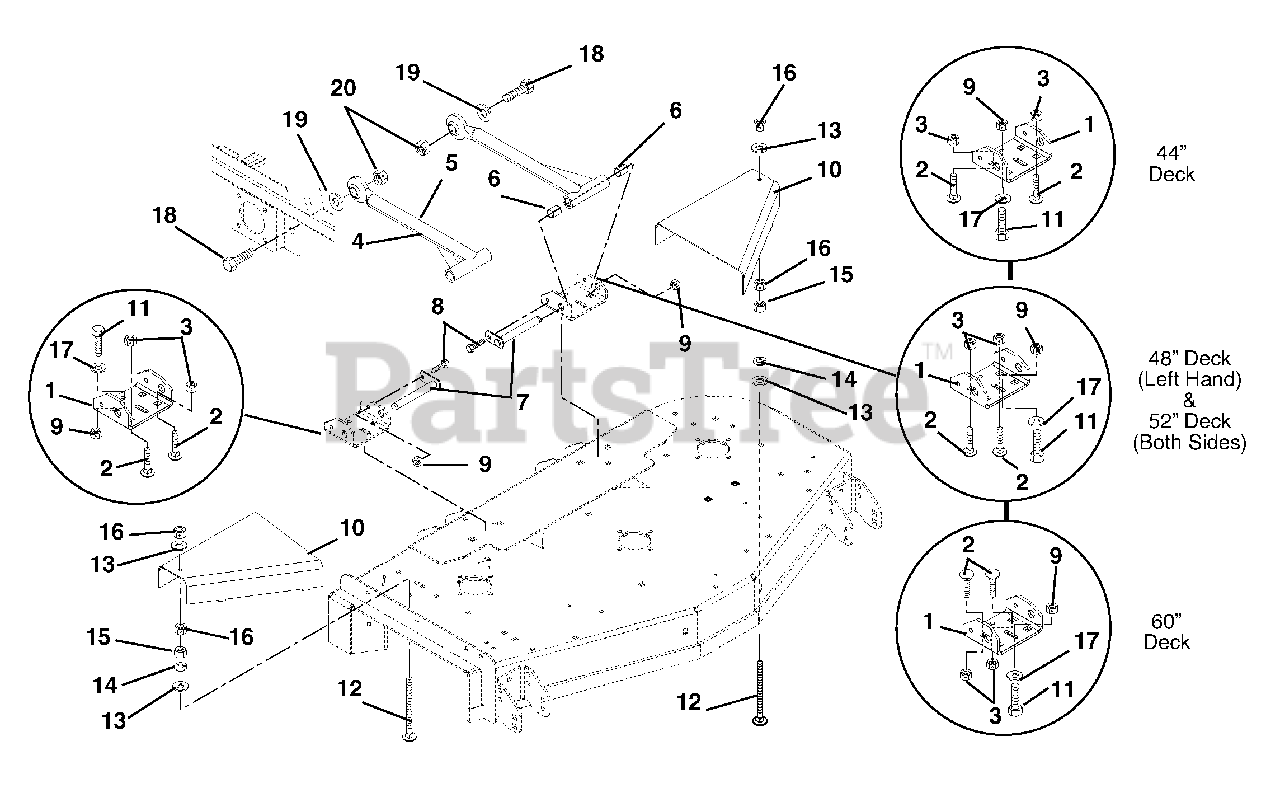

992311 (PM 148Z) - Gravely Pro-Master 48" Zero-Turn Mower, 21hp Kawasaki (SN: 002000 - 002500) Mounting Arms And Belt Guards Parts Diagram

Pro-Master 48" Zero-Turn Mower, 21hp Kawasaki

Mounting Arms And Belt Guards Parts Diagram

  • Title

1

Gravely 09240453

BRACKET, MOWER MOUNT (REAR)

Note: (Rear)

$35.99

$

Usually ships in 4-12 days

0

2

Gravely 06221200

BLT-RDHDSQNK .50-13X.75 G5YZ

$6.49

$

Usually ships in 4-12 days

0

3

Gravely 06519700

NUT-LK-CTR-JAM .50-13 YWZC(ND)

$2.99

$

Usually ships in 4-12 days

0

4

Gravely 09282000

ASSY, MOWER MOUNTING

Note: (Includes Items 5 and 6)

$217.99

$

Usually ships in 4-12 days

0

5

Gravely 09282151

MOWER MTG ARM - BLACK

$145.99

$

Usually ships in 4-12 days

0

6

Gravely 05435900

BRG, .750 X .875 X 1.000

$6.99

$

In Stock, Qty 20+

0

7

Gravely 09238900

WELDMENT, MOWER MTG. PIN

$63.99

$

In Stock, Qty 10

0

8

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 14

0

9

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 09246253

GUARD, PULLEY LH

Note: (044, 054)

$52.99

$

In Stock, only 2 left!

0

Gravely 09246353

GUARD, PULLEY RH

Note: (044, 054)

$70.99

$

In Stock, only 1 left!

0

Gravely 09240853

GUARD, PULLEY LH
(Superseded to 09240851)

Note: (051, 055)

$64.99

$

Usually ships in 4-12 days

0

Gravely 09240753

GUARD, PULLEY RH
(Superseded to 09240751)

Note: (051, 055)

$47.99

$

Usually ships in 4-12 days

0

Gravely 09283553

GUARD, PULLEY-44,48 (RED)

Note: (042, 043)

$85.99

$

Usually ships in 4-12 days

0

11

Gravely 06223900

BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$1.99

$

In Stock, Qty 10

0

12

Gravely 06225300

BLT-RDHDSQNKFTH.312-18X3.50YWZ

Note: (042, 043, 044, 054, 310, 311)

$3.99

$

Usually ships in 4-12 days

0

Gravely 06225300

BLT-RDHDSQNKFTH.312-18X3.50YWZ

Note: (051, 055)

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

Note: (042, 043, 044, 054, 310, 311)

$0.99

$

In Stock, Qty 20+

0

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

Note: (051, 055)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

Note: (042, 043, 044, 054, 310, 311)

$1.49

$

In Stock, Qty 20+

0

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

Note: (051, 055)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06529200

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

Note: (042, 043, 044, 054, 310, 311)

$1.49

$

In Stock, Qty 8

0

Gravely 06529200

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

Note: (051, 055)

$1.49

$

In Stock, Qty 8

0

16

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

Note: (042, 043, 044, 054, 310, 311)

$1.99

$

In Stock, Qty 20+

0

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

Note: (051, 055)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 05969500

BLT-HEX .875-9X2.75 GR5 YWZC

$8.49

$

In Stock, Qty 12

0

19

Gravely 06444700

WSHR-FL-STL .890X1.500X.1196YZ
(Superseded to 06401207)

$4.99

$

In Stock, Qty 6

0

20

Gravely 06539700

NUT-LK-CTR .875-9 YWZC

$6.49

$

In Stock, only 2 left!

0
