992311 (PM 148Z) - Gravely Pro-Master 48" Zero-Turn Mower, 21hp Kawasaki (SN: 002000 - 002500) Rollers Parts Diagram

Pro-Master 48" Zero-Turn Mower, 21hp Kawasaki

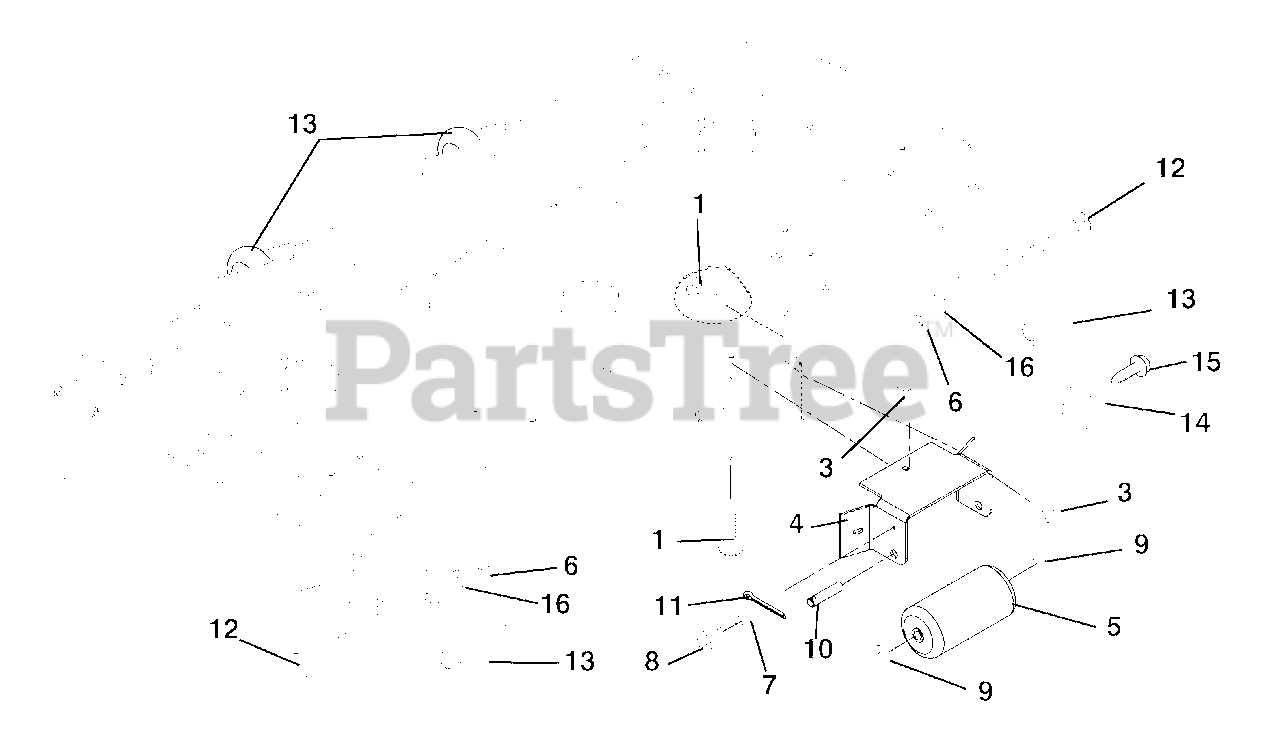

Rollers Parts Diagram

  • Title

1

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

Note: (042, 043, 044, 054, 310, 311)

$2.99

$

In Stock, Qty 20+

0

2

Gravely 06221400

BLT-RDHDSQNK .38-16X1.25 G2YZ
(Superseded to 06224100)

Note: (051, 055)

$2.99

$

In Stock, Qty 20+

0

3

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 04920853

BRACKET - ANTI-SCALP ROLLER

Note: (043, 044, 054, 311)

$127.99

$

Usually ships in 4-12 days

0

Gravely 09288353

ANTI-SCALP ROLLER BRKT - RED
(Superseded to 04920853)

Note: (051, 055)

$127.99

$

Usually ships in 4-12 days

0

Gravely 04939953

BRACKET - ANTI-SCALP ROLLER-44
(Superseded to 04920853)

Note: (042, 310)

$127.99

$

Usually ships in 4-12 days

0

5

Gravely 09078100

ROLLER

$48.99

$

In Stock, Qty 6

0

6

Gravely 06540600

NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0

7

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 07414200

SCR-TAP .25-20X.75 HWH TR YWZ
(Superseded to 07400131)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06442800

WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

$2.99

$

In Stock, Qty 20+

0

10

Gravely 09075300

PIN

$40.99

$

In Stock, only 2 left!

0

11

Gravely 06713100

PIN-CTR .25X2.00 YWZC
(Superseded to 06700213)

$4.99

$

In Stock, only 2 left!

0

12

Gravely 06225900

BLT-RDHDSQNK .50-13X5.00 GR5YZ
(Superseded to 06200505)

$

$

Not available

13

Gravely 09253700

WHEEL, 3X5

$15.99

$

In Stock, Qty 20+

0

14

Gravely 09290353

ANTI-SCALP WASHER - RED

$13.99

$

Usually ships in 4-12 days

0

15

Gravely 07401900

SCR-TAP.250-20X.62 HWH BLK ZC
(Superseded to 07410400)

$2.49

$

In Stock, only 2 left!

0

16

Gravely 06441900

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, Qty 20+

0
