992311 (PM 148Z) - Gravely Pro-Master 48" Zero-Turn Mower, 21hp Kawasaki (SN: 002000 - 002500) Seat Parts Diagram

Pro-Master 48" Zero-Turn Mower, 21hp Kawasaki

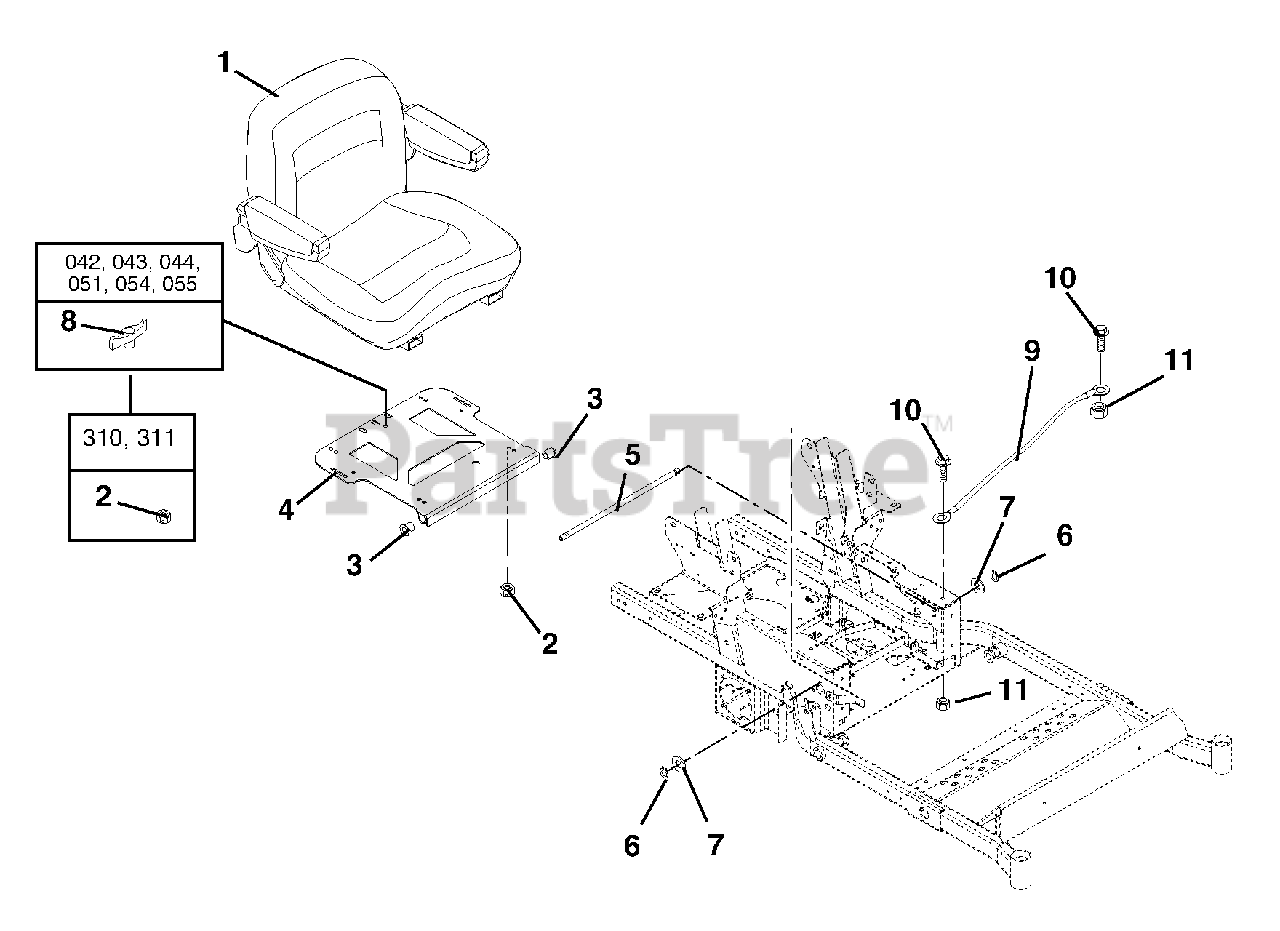

Seat Parts Diagram

  • Title

1

Gravely 09214500

SEAT, MILSCO XB180 - ZOOM
(Superseded to 03829400)

$448.99

$

Usually ships in 4-12 days

0

2

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

Note: (042, 043, 044, 051, 054, 055)

$1.49

$

In Stock, Qty 20+

0

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

Note: (310, 311)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 034738

BSHG-FLG .515X.750X.745X1.00NY
(Superseded to 05521100)

$2.99

$

In Stock, Qty 20+

0

4

Gravely 00164351

WMT, SEAT PIVOT MOUNT

$96.99

$

Usually ships in 4-12 days

0

5

Gravely 09282700

ROD, SEAT FRAME PIVOT

$15.99

$

Usually ships in 4-12 days

0

6

Gravely 05717100

RG-RTNG-EXT .500X.050 (SNAP)

$2.99

$

In Stock, Qty 20+

0

7

Gravely 06441900

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 07531700

KNOB - WING .312-18 UNC
(Superseded to 07534800)

Note: (042, 043, 044, 051, 054, 055)

$3.99

$

In Stock, Qty 20+

0

9

Gravely 044486

CBL,HOOD
(Superseded to 06927100)

$15.99

$

In Stock, only 1 left!

0

10

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

11

Gravely 06543500

NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 15

0
