992311 (PM 148Z) - Gravely Pro-Master 48" Zero-Turn Mower, 21hp Kawasaki (SN: 002000 - 002500) Steering Controls Parts Diagram

Pro-Master 48" Zero-Turn Mower, 21hp Kawasaki

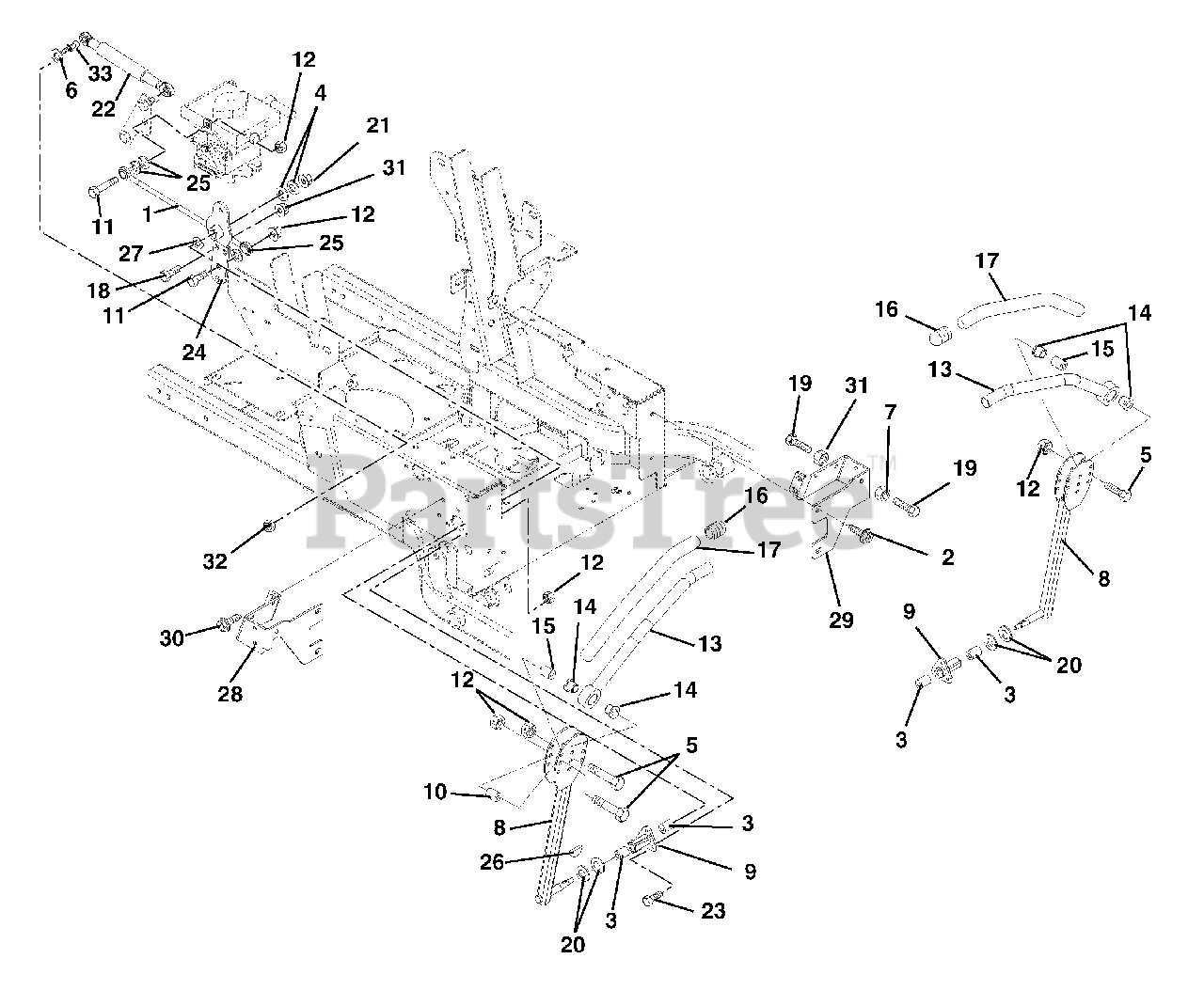

Steering Controls Parts Diagram

  • Title

1

Gravely 09285300

ASSY, STEERING ROD

$

$

Not available

2

Gravely 07415400

SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 05436800

BSHG .625X.750X.500

$10.99

$

In Stock, only 2 left!

0

4

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 05957400

BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$3.49

$

In Stock, Qty 10

0

6

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 09285751

CONTROL ARM - BLACK

$255.99

$

Usually ships in 4-12 days

0

9

Gravely 09294600

BUSHING, FLANGE

$35.99

$

In Stock, only 1 left!

0

10

Gravely 09235700

ECCENTRIC

$5.49

$

In Stock, only 2 left!

0

11

Gravely 05947500

BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.99

$

In Stock, Qty 11

0

12

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 09235500

HANDLE WLDMT LH

$105.99

$

In Stock, Qty 6

0

Gravely 09235600

WLDMT, RH HANDLE

$94.99

$

In Stock, only 3 left!

0

14

Gravely 035172

BSHG-FLG .762X1.48X.44 NYL
(Superseded to 05525200)

$3.99

$

In Stock, only 4 left!

0

15

Gravely 09235400

SPACER .328 X .76 X 1.01

$21.99

$

In Stock, only 1 left!

0

16

Gravely 09211400

CAPLUG - HANDLEBAR

$3.49

$

In Stock, Qty 20+

0

17

Gravely 09246800

GRIP - HANDLEBAR

$13.99

$

In Stock, Qty 20+

0

18

Gravely 05974000

BLT-HEX .375-16X1.750 FTD YWZC
(Superseded to 05901612)

$3.49

$

Usually ships in 4-12 days

0

19

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 06436100

WSHR-FL-STL .630X1.005X.062 YZ
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 09258900

DAMPENER, CONTROL

$76.99

$

In Stock, only 3 left!

0

23

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

24

Gravely 00163700

ARM, PIVOT

$30.99

$

Usually ships in 4-12 days

0

25

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 124545

KEY-WDRF .13X.63 HRD#5
(Superseded to 06608400)

$2.99

$

In Stock, only 1 left!

0

27

Gravely 03704900

WAVE WASHER .640X.875X.125FH

$2.49

$

Usually ships in 4-12 days

0

28

Gravely 09287351

STOP, STEERING-RH (BLACK)

$81.99

$

Usually ships in 4-12 days

0

29

Gravely 09287451

STOP, STEERING -LH (BLACK)

$92.99

$

Usually ships in 4-12 days

0

30

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.99

$

In Stock, Qty 20+

0

31

Gravely 06537200

NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 06541700

NUT-LK-NYL M8-1.25 YWZC
(Superseded to 06500817)

$1.99

$

Usually ships in 4-12 days

0

33

Gravely 03652200

STUD- BALL

$3.99

$

In Stock, Qty 13

0
