992311 (PM 148Z) - Gravely Pro-Master 48" Zero-Turn Mower, 21hp Kawasaki (SN: 004000 & Above) Motors And Wheels Parts Diagram

Pro-Master 48" Zero-Turn Mower, 21hp Kawasaki

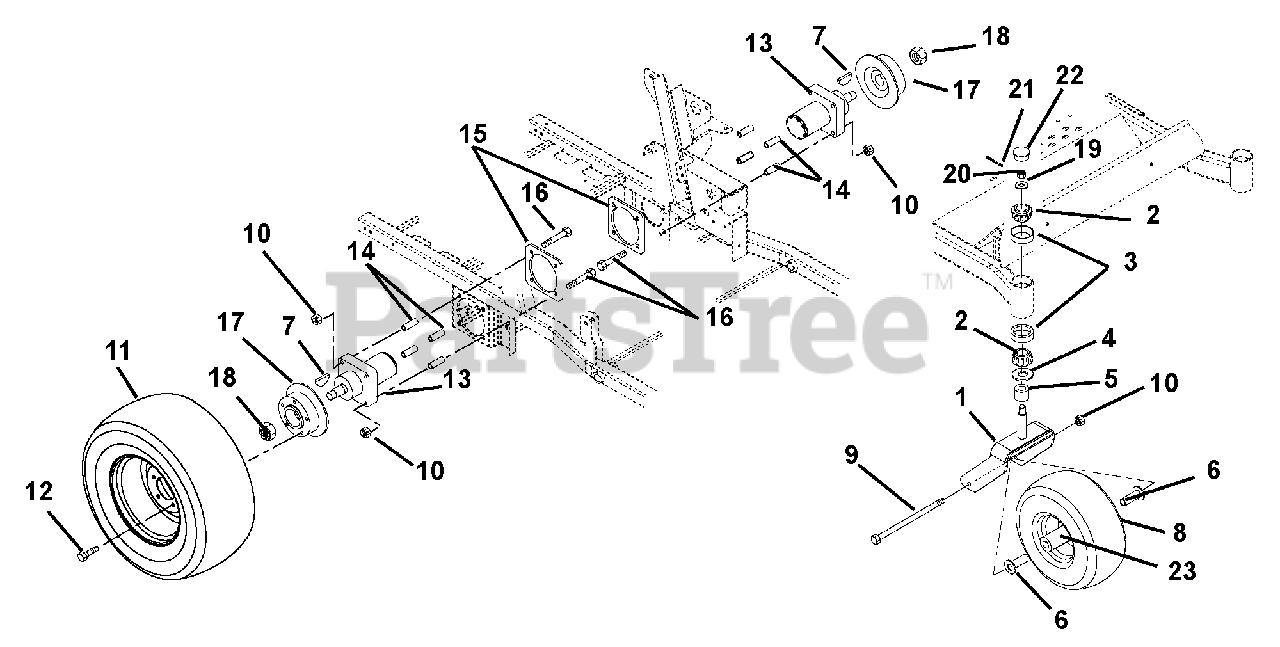

Motors And Wheels Parts Diagram

  • Title
1

Gravely 09282451

Fork
(Superseded to 59208600)

$162.99

$

Usually ships in 4-12 days

0

2

Gravely 69000300

Bearing, Cone with Grease
(Superseded to 05406900)

$18.99

$

In Stock, Qty 20+

0

3

Gravely 038109

Bearing, Cup 1.98 x .420
(Superseded to 05407000)

$17.99

$

In Stock, Qty 18

0

4

Gravely 00531400

Bearing Seal 1.5 x 2 x .18

$10.99

$

In Stock, Qty 20+

0

5

Gravely 00531500

Spacer, PM, 1.03 I.D. x 1.5 O.D. x .375

$7.49

$

In Stock, Qty 10

0

6

Gravely 00160900

Spacer, Wheel

$38.99

$

In Stock, Qty 5

0

7

Gravely 117977

Key, Woodruff .31 x 1.00
(Superseded to 06607800)

Note: (Included with 13)

$3.99

$

Usually ships in 4-12 days

0

8

Gravely 07147800

Wheel/Tire Assembly
(Superseded to 59219000)

$182.99

$

In Stock, Qty 12

0

8

Gravely 07147100

Tire, 15 x 6-6
(Superseded to 07100905)

$56.99

$

In Stock, only 3 left!

0

9

Gravely 05961200

Bolt, Hex .50-13 x 9.00 Grade 5
(Superseded to 05901930)

$10.99

$

In Stock, Qty 20+

0

10

Gravely 06543600

Nut, Locking Top Flange .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 07152300

Wheel, Tire Assembly 23 x 10.50 -12 (992051, 055, 080, 081, 082, 095, 097)
(Superseded to 59101000)

Note: (992051, 055, 080, 081, 082, 095, 097)

$271.99

$

Usually ships in 4-12 days

0

11

Gravely 07149000

Tire 23 x 10.50(992043, 044, 051, 054, 055, 078, 079, 080, 081, 082, 093, 094, 095, 096, 097, 311)

Note: (992043, 044, 051, 054, 055, 078, 079, 080, 081, 082, 093, 094, 095, 096, 097, 311)

$

$

Not available

11

Gravely 07148900

Wheel, Tire 23 x 10.50 - 12 Multi-Trac (992043, 044, 054, 078, 079, 081, 093, 094, 096, 311)
(Superseded to 07101116)

Note: (992043, 044, 054, 078, 079, 081, 093, 094, 096, 311)

$262.99

$

In Stock, only 1 left!

0

11

Gravely 07159400

Wheel, Tire Assembly 23 x 9.50-12 (992042, 064, 077, 083, 092, 310)
(Superseded to 07101116)

Note: (992042, 064, 077, 083, 092, 310)

$262.99

$

In Stock, only 1 left!

0

11

Gravely 07159500

Tire, 23 x 9.50-12 Multitrac (992042, 064, 077, 083, 092, 310)
(Superseded to 07149000)

Note: (992042, 064, 077, 083, 092, 310)

$

$

Not available

12

Gravely 07067700

Bolt, Lug Grade 8 .50-20 UNF x 1.38 Long 60 Degree
(Superseded to 07000143)

$3.49

$

In Stock, Qty 20+

0

13

Gravely 09262800

Hydraulic Wheel Motor

Note: (includes 18 & 7)

$775.99

$

Usually ships in 4-12 days

0

14

Gravely 05531400

Bushing, Sleeve .513 x .748 x 2.13

$13.99

$

Usually ships in 4-12 days

0

15

Gravely 09278500

Plate, Motor Support

$

$

Not available

16

Gravely 07067300

Bolt, Hex .50-13 x 5.00 Grade 5

$6.99

$

Usually ships in 4-12 days

0

17

Gravely 09247100

Hub and Disc

$297.99

$

In Stock, only 1 left!

0

18

Gravely 06541900

Nut, Lock Jam Patch

Note: Included with 13)

$30.99

$

Usually ships in 4-12 days

0

19

Gravely 06441500

Washer, Flat Steel .755 x 1.375 x .062
(Superseded to 06401016)

$3.99

$

In Stock, Qty 17

0

20

Gravely 00595500

Nut, Slotted .75-16

$3.49

$

In Stock, Qty 11

0

21

Gravely 06712300

Pin, Cotter .16 x 1.00

$2.49

$

In Stock, Qty 5

0

22

Gravely 038919

Cap, Dust
(Superseded to 20655400)

$9.49

$

In Stock, Qty 20+

0

23

Gravely 05435700

Bearing, 25mm I.D. x 52mm OD x 15mm

$21.99

$

In Stock, Qty 20+

0
