992312 (PM 144 Z) - Ariens Pro-Master 44" Zero-Turn Mower, 21hp Kawasaki (SN: 000101 - 000999) Deck, Mounting Arms And Belt Guards Parts Diagram

Pro-Master 44" Zero-Turn Mower, 21hp Kawasaki

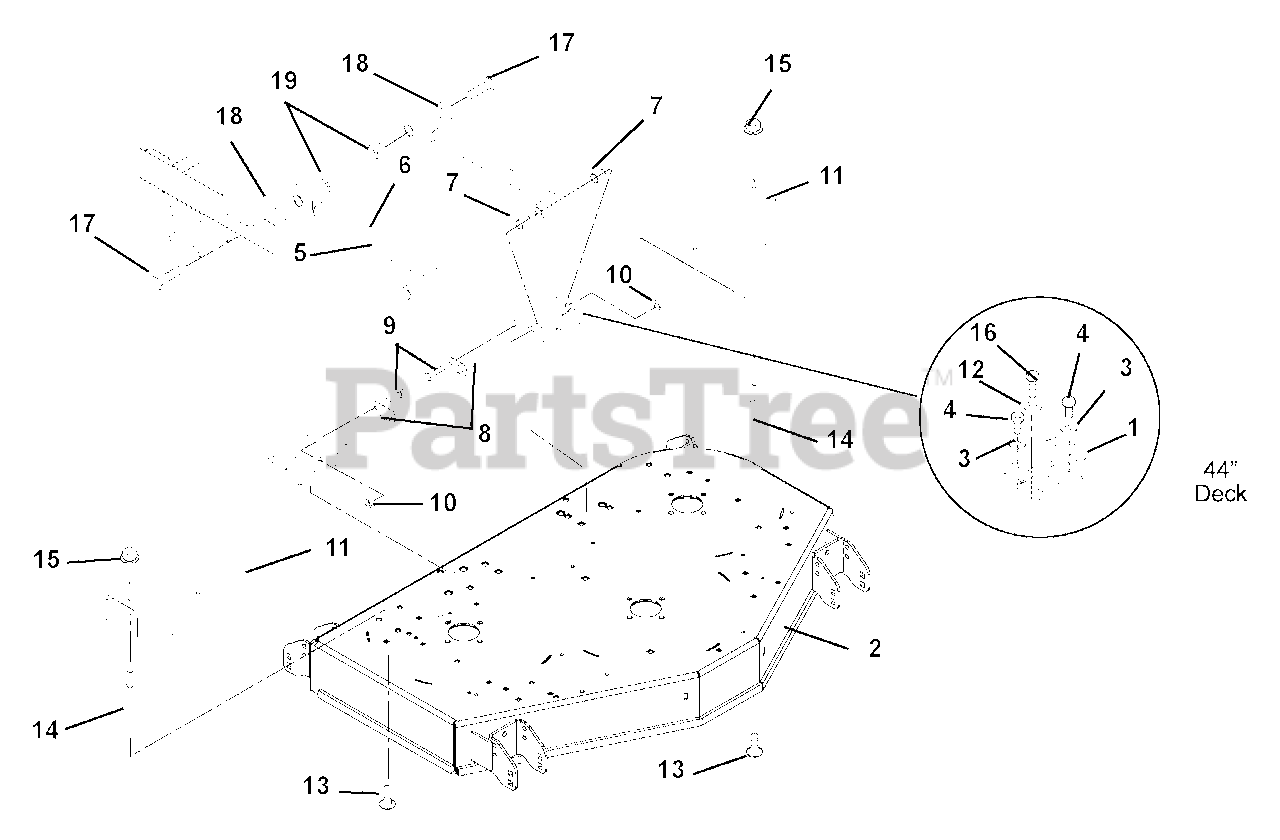

Deck, Mounting Arms And Belt Guards Parts Diagram

  • Title

1

Ariens 09240453

BRACKET, MOWER MOUNT (REAR)

Note: (Rear)

$35.99

$

Usually ships in 4-12 days

0

2

Ariens 00371753

WMT, 44 REAR DISCHARGE

$

$

Not available

3

Ariens 06307300

@WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, only 2 left!

0

4

Ariens 05947100

@BLT-HEX .50-13X1.00 GR5 YWZC
(Superseded to 05901715)

$2.99

$

In Stock, Qty 7

0

5

Ariens 09282000

ASSY, MOWER MOUNTING

Note: (Includes Items 6 and 7)

$217.99

$

Usually ships in 4-12 days

0

6

Ariens 09282151

MOWER MTG ARM - BLACK

$145.99

$

Usually ships in 4-12 days

0

7

Ariens 05435900

BRG, .750 X .875 X 1.000

$6.99

$

In Stock, Qty 20+

0

8

Ariens 09238900

WELDMENT, MOWER MTG. PIN

$63.99

$

In Stock, only 2 left!

0

9

Ariens 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 8

0

10

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 09283553

GUARD, PULLEY-44,48 (RED)

$85.99

$

Usually ships in 4-12 days

0

12

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 5

0

13

Ariens 06200002

BLT,RDHDSQNK .31-18X.75 LOCTIT
(Superseded to 06200425)

$4.99

$

Usually ships in 4-12 days

0

14

Ariens 00271200

STANDOFF, 2.75 X 5/16-18

$35.99

$

In Stock, only 2 left!

0

15

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, only 2 left!

0

16

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 14

0

17

Ariens 05969500

BLT-HEX .875-9X2.75 GR5 YWZC

$8.49

$

In Stock, only 2 left!

0

18

Ariens 06444700

WSHR-FL-STL .890X1.500X.1196YZ
(Superseded to 06401207)

$4.99

$

In Stock, Qty 12

0

19

Ariens 06539700

NUT-LK-CTR .875-9 YWZC

$6.49

$

In Stock, only 2 left!

0
