992312 (PM 144 Z) - Ariens Pro-Master 44" Zero-Turn Mower, 21hp Kawasaki (SN: 000101 - 000999) Engine And Clutch Parts Diagram

Pro-Master 44" Zero-Turn Mower, 21hp Kawasaki

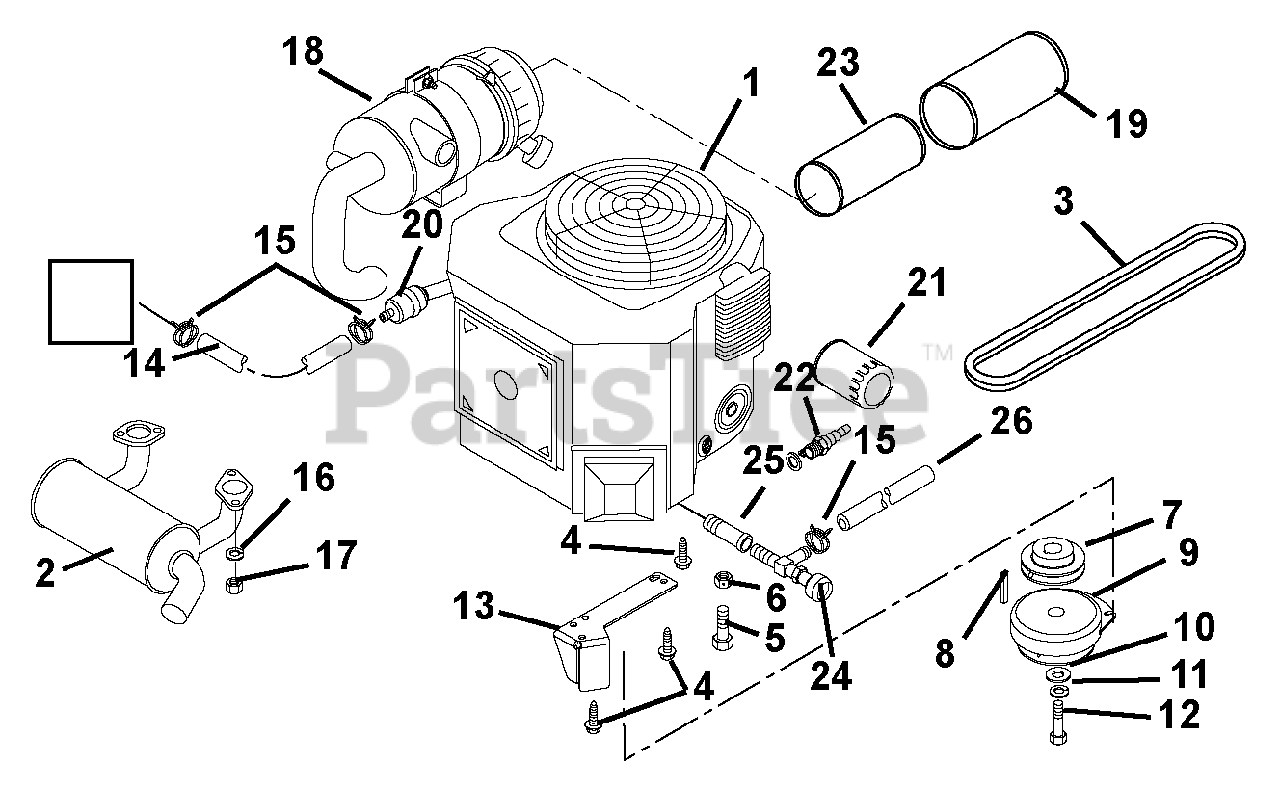

Engine And Clutch Parts Diagram

  • Title

1

Ariens 08268000

ENGINE, KAWASAKI 21HP

$

$

Not available

2

Ariens 09281600

MUFFLER, KAW (INTERMEDIATE-Z)

$271.99

$

Usually ships in 4-12 days

0

3

Ariens 07218000

V-BELT, HA-RAW EDGE
(Superseded to 07200428)

$51.99

$

In Stock, Qty 6

0

4

Ariens 07414100

@SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

$3.99

$

In Stock, Qty 20+

0

5

Ariens 05957400

@BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$2.99

$

In Stock, Qty 12

0

6

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 07327700

PLY-V 4.00 X 1.12 KEYWAY 1.54

$68.99

$

In Stock, only 1 left!

0

8

Ariens 06602700

KEY-SQ .25X.625X.25 SAE 8630

$3.99

$

In Stock, Qty 16

0

9

Ariens 00389900

CLUTCH, ELE-W/HI TEMP GREASE

$478.99

$

In Stock, only 1 left!

0

NS

Ariens 59205200

KIT,BRAKE POLE MODULE REPLACE

$

$

Not available

10

Ariens 06445000

WSHR-FL-STL .515X1.625X.250 YZ

$5.99

$

In Stock, Qty 20+

0

11

Ariens 06309300

@WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, only 2 left!

0

12

Ariens 05964600

BLT-HEX .44-20X2.50 GR5 YWZC
(Superseded to 05902017)

$2.49

$

In Stock, only 1 left!

0

13

Ariens 00395651

WMT, CLUTCH STOP

$96.99

$

Usually ships in 4-12 days

0

14

Ariens 00924300

GAS LINE-BULK 1/4" I.D.
(Superseded to 03278100)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 06939100

CLAMP-HOSE WIRE .490/.510X.116

$3.99

$

In Stock, Qty 20+

0

16

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

Note: (Included with item 1)

$0.99

$

In Stock, Qty 20+

0

17

Ariens 06538600

NUT-HEX M8-1.25 YWZC

Note: (Included with item 1)

$1.99

$

Usually ships in 4-12 days

0

18

Ariens 09257500

AIR CLEANER ASSEMBLY
(Superseded to 03782600)

$177.99

$

Usually ships in 4-12 days

0

19

Ariens 21537000

ELEMENT, OUTER PRIMARY

$28.99

$

In Stock, Qty 20+

0

20

Ariens 21410800

FILTER, FUEL - KOH CV20
(Superseded to 21541500)

$8.99

$

In Stock, Qty 20+

0

21

Ariens 21535800

FILTER,OIL - KAW
(Superseded to 49065-0724)

$18.99

$

In Stock, Qty 20+

0

22

Ariens 21536100

PLUG, SPARK

$3.49

$

In Stock, Qty 20+

0

23

Ariens 21536900

ELEMENT, INNER SAFETY

$28.99

$

In Stock, only 3 left!

0

24

Ariens 03493200

COCK, OIL DRAIN
(Superseded to 00429000)

$39.99

$

In Stock, only 1 left!

0

25

Ariens 03493100

ADAPTER, OIL DRAIN

$5.99

$

Usually ships in 4-12 days

0

26

Ariens 00924300

GAS LINE-BULK 1/4" I.D.
(Superseded to 03278100)

$0.99

$

In Stock, Qty 20+

0
