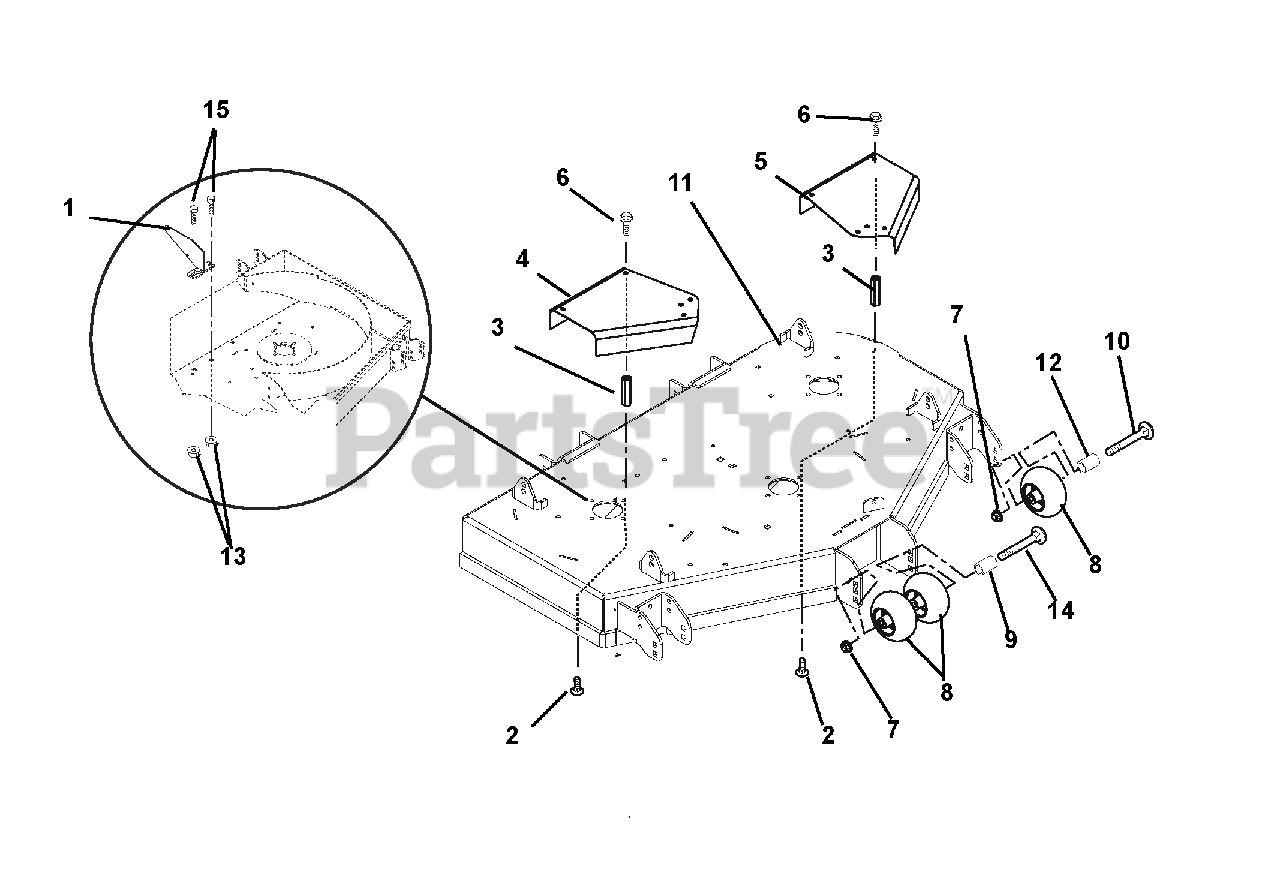

992312 (PM 144 Z) - Ariens Pro-Master 44" Zero-Turn Mower, 21hp Kawasaki (SN: 001000 & Above) Deck, Anti-Scalp Rollers And Belt Covers Parts Diagram

Pro-Master 44" Zero-Turn Mower, 21hp Kawasaki

Deck, Anti-Scalp Rollers And Belt Covers Parts Diagram

  • Title

1

Ariens 00502453

REAR DISCH DEFLECT BFL WMT-RED

$38.99

$

Usually ships in 4-12 days

0

2

Ariens 06200002

BLT,RDHDSQNK .31-18X.75 LOCTIT
(Superseded to 06200425)

$3.99

$

In Stock, Qty 12

0

3

Ariens 07000027

NUT, COUPLING .31-18 X 3.00

$17.99

$

In Stock, Qty 14

0

4

Ariens 00463153

44"RH SPINDLE SHEAVE GUARD-RED

$70.99

$

In Stock, only 1 left!

0

5

Ariens 00438953

44"-52" LH SPNDL SHV GUARD-RED

$103.99

$

In Stock, only 1 left!

0

6

Ariens 07000018

BOLT, SEMS .31-18 X .62

$3.99

$

Usually ships in 4-12 days

0

7

Ariens 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$2.49

$

In Stock, Qty 20+

0

8

Ariens 00473600

WHEEL, ANTI SCALP
(Superseded to 03905900)

$10.99

$

In Stock, Qty 20+

0

9

Ariens 00473800

SPACER, .510X.625X6.50

$20.99

$

In Stock, Qty 20+

0

10

Ariens 06225900

BLT-RDHDSQNK .50-13X5.00 GR5YZ
(Superseded to 06200505)

$5.99

$

In Stock, Qty 20+

0

11

Ariens 00499453

XDZ44" REAR DISCH DECK WMT-RED

$

$

Not available

12

Ariens 00473700

SPACER, .510X.625X3.35

$18.99

$

In Stock, Qty 20+

0

13

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 06206400

@BLT-RDHDSQNK .50-13X8.50 G5YZ
(Superseded to 06200321)

$6.99

$

In Stock, Qty 20+

0

15

Ariens 06212000

@BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0
