992312 (PM 144 Z) - Ariens Pro-Master 44" Zero-Turn Mower, 21hp Kawasaki (SN: 001000 & Above) Hydraulic Tank, Filter, Pumps And Hoses Parts Diagram

Pro-Master 44" Zero-Turn Mower, 21hp Kawasaki

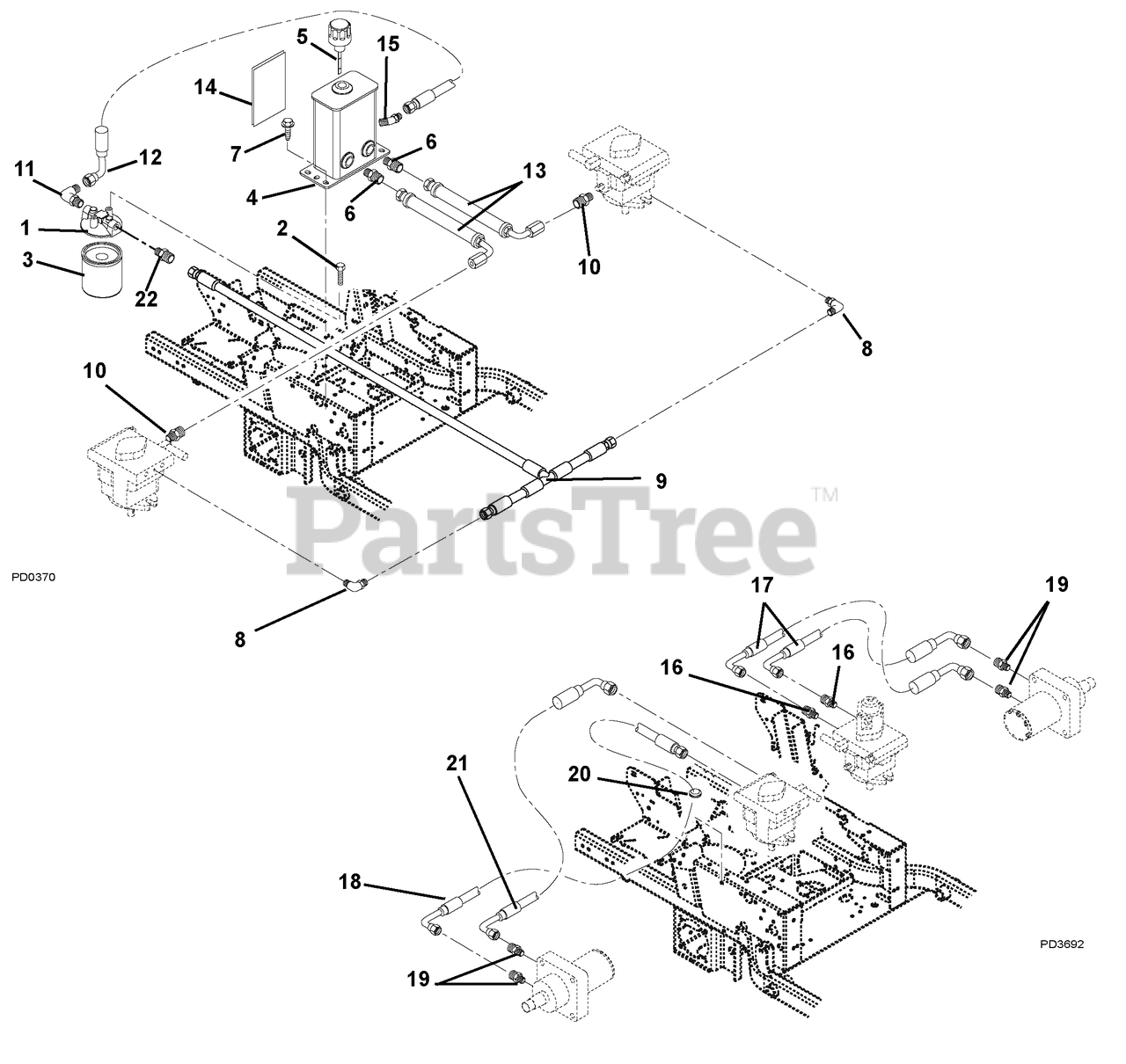

Hydraulic Tank, Filter, Pumps And Hoses Parts Diagram

  • Title

1

Ariens 00669200

HEAD, FILTER
(Superseded to 00672000)

Note: (Serial Numbers 0001500 and Up)

$25.99

$

Usually ships in 4-12 days

0

Ariens 09072100

HEAD, FILTER

Note: (Serial Numbers 000101 - 0001499)

$62.99

$

Usually ships in 4-12 days

0

2

Ariens 05900008

BLT-HEX .25-20X.50 GR5 EPOXY
(Superseded to 05901918)

$1.99

$

Usually ships in 4-12 days

0

3

Ariens 00669300

ELEMENT, OIL FILTER

Note: (Serial Numbers 0001500 and Up)

$29.99

$

In Stock, only 2 left!

0

Ariens 09246900

ELEMENT, FILTER BE-40-0

Note: (Serial Numbers 000101 - 0001499)

$28.99

$

In Stock, Qty 14

0

4

Ariens 02985351

WMT,FORMED HYD.TANK-3 PORT

Note: (Serial Numbers 003000 and up)

$174.99

$

Usually ships in 4-12 days

0

Ariens 00161051

WMT, HYDRAULIC TANK

Note: (Serial Numbers 000101 - 002999)

$

$

Not available

5

Ariens 00463000

BREATHER, DIPSTICK

$51.99

$

In Stock, only 1 left!

0

6

Ariens 07000012

FTG, HYD STR M8O-M4F

$9.99

$

Usually ships in 4-12 days

0

7

Ariens 07415400

@SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

8

Ariens 07063600

FITTING, HYD (6 C5OLO)

$35.99

$

Usually ships in 4-12 days

0

9

Ariens 00669500

HOSE, HYD .50-9-0K F8FO-F8F9
(Superseded to 00393800)

Note: (Serial Numbers 0001500 and Up)

$52.99

$

Usually ships in 4-12 days

0

Ariens 00277900

HOSE, TEE ASSM .38

Note: (Serial Numbers 000101 - 0001499)

$142.99

$

Usually ships in 4-12 days

0

10

Ariens 07063800

FITTING, HYD (4-6 F5OLO)

$15.99

$

Usually ships in 4-12 days

0

11

Ariens 07069600

FTG. HYD. 90 EL M8F-M8O

Note: (Serial Numbers 0001500 and Up)

$35.99

$

Usually ships in 4-12 days

0

Ariens 07063600

FITTING, HYD (6 C5OLO)

Note: (6 C5OLO) (Serial Numbers 000101 - 0001499)

$35.99

$

Usually ships in 4-12 days

0

12

Ariens 00393800

HOSE, HYD..50-11-OK F8F0-F8F9

Note: (Serial Numbers 3000 and up)

$52.99

$

Usually ships in 4-12 days

0

Ariens 00669500

HOSE, HYD .50-9-0K F8FO-F8F9
(Superseded to 00393800)

Note: (Serial Numbers 0001500 - 002999)

$52.99

$

Usually ships in 4-12 days

0

Ariens 00275400

HOSE, HYD .38-9-0K F6F0-F6F9

Note: (Serial Numbers 000101 - 0001499)

$70.99

$

Usually ships in 4-12 days

0

13

Ariens 00275600

HOSE, HYD .25-3-0K F4F0-F4F9

$78.99

$

In Stock, only 3 left!

0

14

Ariens 09286900

SHEILD, HEAT 5.50X4.50

$21.99

$

Usually ships in 4-12 days

0

15

Ariens 07059900

ADPTR,FACE SEAL 8X8 1/2 O-RING

Note: (Serial Numbers 003000 and up)

$9.99

$

Usually ships in 4-12 days

0

Ariens 07066200

FTG,HYD 45DEG M8F-M80

Note: (Serial Numbers 0001500 - 002999)

$62.99

$

Usually ships in 4-12 days

0

Ariens 07000011

FTG, HYD 45DEG M6F-M8O

Note: (Serial Numbers 000101 - 0001499)

$

$

Not available

16

Ariens 07059900

ADPTR,FACE SEAL 8X8 1/2 O-RING

$9.99

$

Usually ships in 4-12 days

0

17

Ariens 09281800

HOSE,HYD .50-19-2K F08F9-F08F9

$197.99

$

Usually ships in 4-12 days

0

18

Ariens 00868700

HOSE,HYD .50-20-2K F08FO-F08F9

$

$

Not available

19

Ariens 07062100

FTG, HYD STR M10O-M8F

$15.99

$

Usually ships in 4-12 days

0

20

Ariens 07536800

GROMMET 1.25ID X 1.5OD

$14.99

$

Usually ships in 4-12 days

0

21

Ariens 09281700

HOSE,HYD .50-20-2K F08F0-F08F0

$184.99

$

In Stock, only 1 left!

0

22

Ariens 07059900

ADPTR,FACE SEAL 8X8 1/2 O-RING

Note: (Serial Numbers 0001500 and Up)

$9.99

$

Usually ships in 4-12 days

0

Ariens 07064200

FITTING, HYD (6 F5OLO)

Note: (6 F5OLO) (Serial Numbers 000101 - 0001499)

$9.99

$

Usually ships in 4-12 days

0
