992312 (PM 144 Z) - Ariens Pro-Master 44" Zero-Turn Mower, 21hp Kawasaki (SN: 001000 & Above) Wheel Motors, Tires, Brakes And Front Forks Parts Diagram

Pro-Master 44" Zero-Turn Mower, 21hp Kawasaki

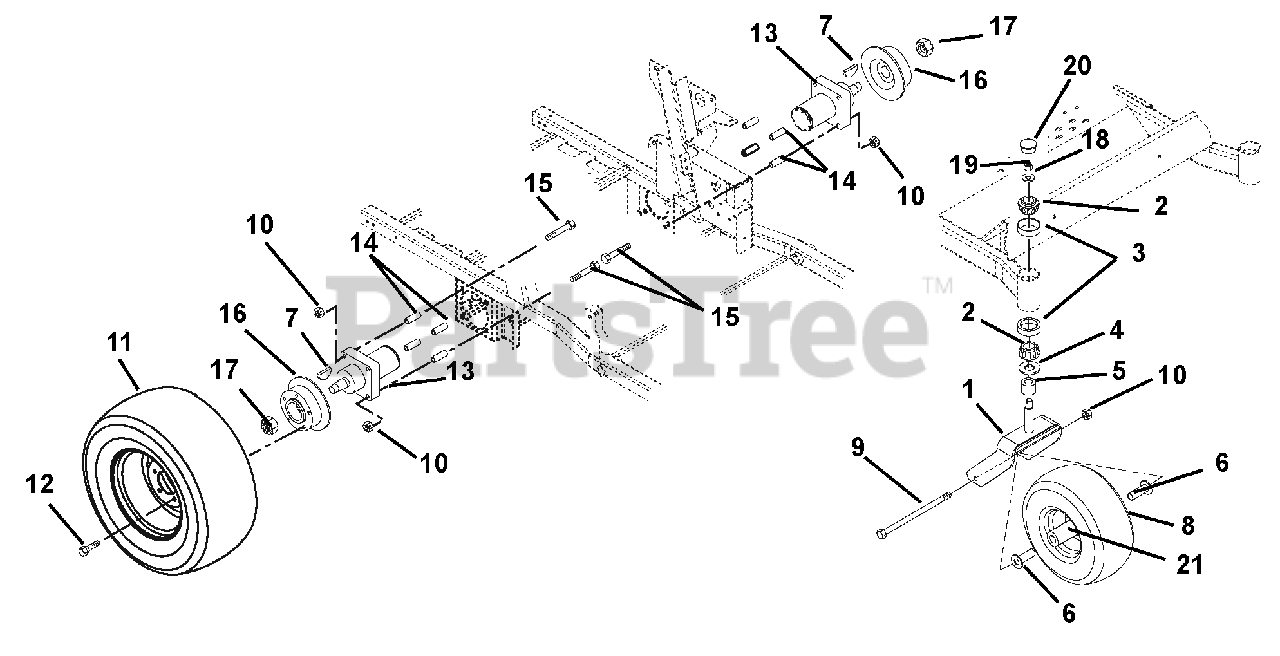

Wheel Motors, Tires, Brakes And Front Forks Parts Diagram

  • Title

1

Ariens 09282451

FORK - BLACK
(Superseded to 59208600)

$166.99

$

Usually ships in 4-12 days

0

2

Ariens 69000300

BRG, CONE W/ GREASE
(Superseded to 05406900)

$20.99

$

In Stock, Qty 20+

0

3

Ariens 05407000

BRG-CUP1.980X.420

$18.99

$

In Stock, Qty 20+

0

4

Ariens 00531400

BEARING SEAL 1.5 X 2 X .18

$10.99

$

In Stock, Qty 20+

0

5

Ariens 00531500

SPACER 1.005X1.5075X.375

$8.49

$

In Stock, Qty 15

0

6

Ariens 00675300

SPACER, FRONT WHEEL

$9.49

$

In Stock, Qty 20+

0

7

Ariens 06607800

KEY-WDRF .31X1.00 SFT #B

Note: (Included with 13)

$4.99

$

Usually ships in 4-12 days

0

8

Ariens 07100212

TIRE/WHEEL ASSY, 15X6.00-6
(Superseded to 59219000)

$197.99

$

Usually ships in 4-12 days

0

Ariens 07100213

TIRE, 15X6.00-6
(Superseded to 07100905)

$87.99

$

In Stock, only 2 left!

0

9

Ariens 05961200

@BLT-HEX .50-13X9.00 GR5 YWZC
(Superseded to 05901930)

$11.99

$

In Stock, Qty 12

0

10

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

11

Ariens 07100209

TIRE/WHEEL ASSY, 23X10.00-12
(Superseded to 07101116)

$319.99

$

In Stock, only 1 left!

0

Ariens 07100210

TIRE, 23X10.00-12
(Superseded to 07101043)

$205.99

$

Usually ships in 4-12 days

0

12

Ariens 07067700

BLT, LUG .50-20 X 1.38
(Superseded to 07000143)

$3.99

$

In Stock, Qty 20+

0

13

Ariens 00668900

MOTOR, WHEEL HGM 15E (CW)

Note: (CW)

$1943.99

$

Usually ships in 4-12 days

0

14

Ariens 05531400

BSHG-SLV .513X.748X2.129

$14.99

$

Usually ships in 4-12 days

0

15

Ariens 05975400

@BLT-HEX .50-13X5.00 GR8 YWZC

$6.49

$

In Stock, Qty 10

0

16

Ariens 09247100

HUB & DISK (PARK) 8" 1/2 HOLE

$303.99

$

Usually ships in 4-12 days

0

17

Ariens 06541900

NUT-LK-JAM-PTCH 1.00-20

Note: (Included with 13)

$33.99

$

In Stock, only 1 left!

0

18

Ariens 06439000

@WSHR-FL-STL.812X1.50X.135YWZC
(Superseded to 06401140)

$1.99

$

In Stock, Qty 16

0

19

Ariens 06536900

NUT-JAM CTRLK .75-16 YWZC

$6.49

$

In Stock, Qty 8

0

20

Ariens 00456800

CAP, DUST

$18.99

$

In Stock, Qty 8

0

21

Ariens 05435700

BRG, 25MM ID X 52MM OD X 15MM

$25.99

$

In Stock, Qty 20+

0
