992314 (PM 34Z) - Gravely Pro-Master 34" Zero-Turn Mower, 15hp Kawasaki (SN: 000101 - 001499) Frame Parts Diagram

Pro-Master 34" Zero-Turn Mower, 15hp Kawasaki

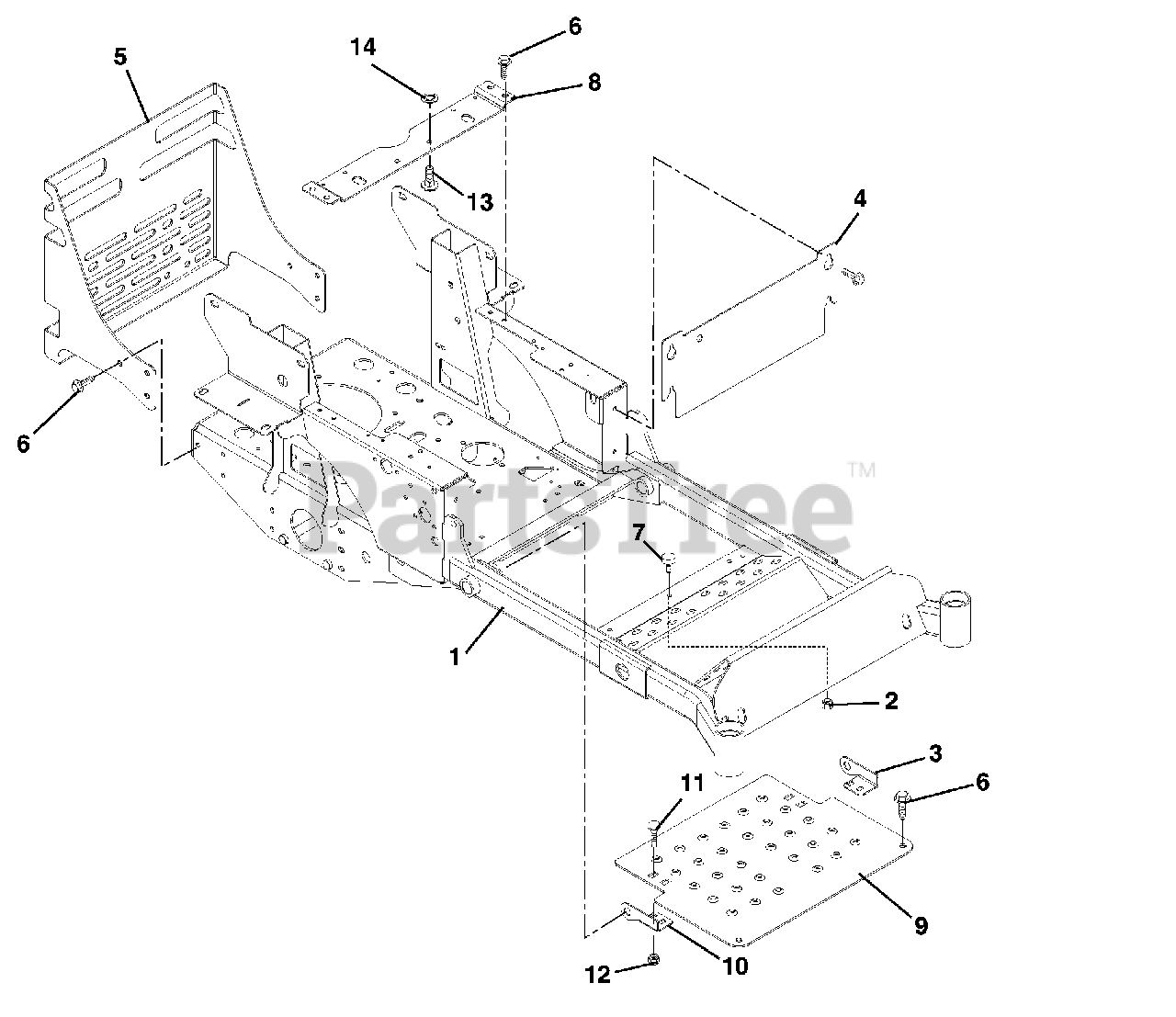

Frame Parts Diagram

  • Title

1

Gravely 09296251

WMT, FRAME COMPACT-Z
(Superseded to 07200012)

$126.99

$

In Stock, only 3 left!

0

2

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 09267151

HINGE, FOOTBOARD LH

$

$

Not available

4

Gravely 09297253

PANEL, ACCESS

$56.99

$

Usually ships in 4-12 days

0

5

Gravely 09297551

BUMPER, REAR
(Superseded to 00361051)

$185.99

$

Usually ships in 4-12 days

0

6

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

Note: (056)

$1.99

$

In Stock, Qty 20+

0

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

Note: (314)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 07533600

BUMPER, RUBBER

$12.99

$

In Stock, Qty 5

0

8

Gravely 09297451

SUPPORT, SEAT

$87.99

$

Usually ships in 4-12 days

0

9

Gravely 09297353

PANEL, INSPECTION
(Superseded to 00298953)

$

$

Not available

10

Gravely 09267251

HINGE, FOOTBOARD RH

$13.99

$

Usually ships in 4-12 days

0

11

Gravely 06223900

BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$1.99

$

In Stock, Qty 10

0

12

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06220800

BLT-RHDSSQNK .31-18X.75 G5YZ
(Superseded to 06200309)

$2.99

$

In Stock, Qty 13

0

14

Gravely 06514900

NUT-PUSH .312

$0.99

$

In Stock, Qty 9

0
