992314 (PM 34Z) - Gravely Pro-Master 34" Zero-Turn Mower, 15hp Kawasaki (SN: 000101 - 001499) Frame Parts Diagram

Pro-Master 34" Zero-Turn Mower, 15hp Kawasaki

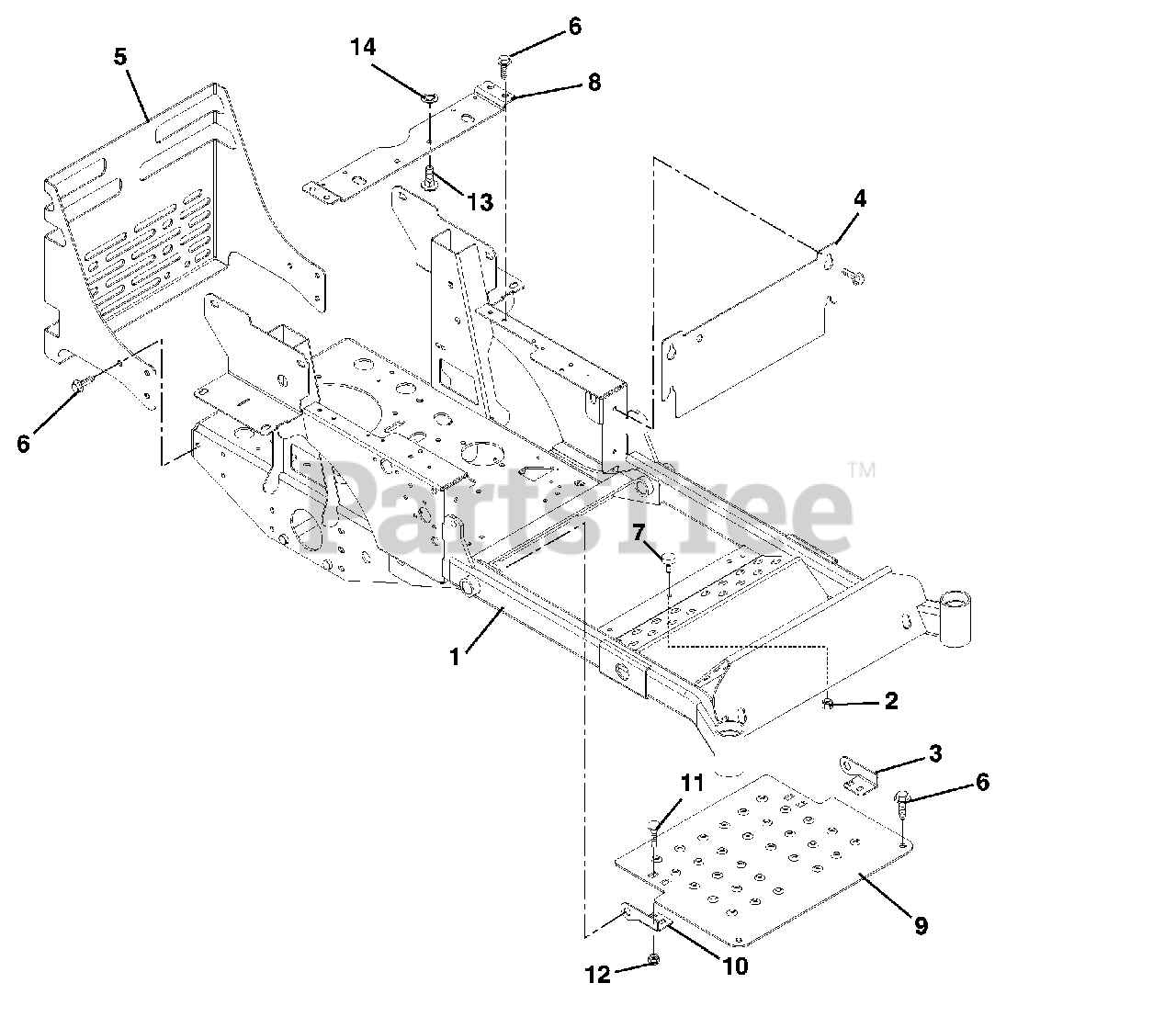

Frame Parts Diagram

  • Title

1

Gravely 09296251

Frame, Compact-Z

$

$

Not available

2

Gravely 06530400

Nut, Spin Lock Flange .312-18
(Superseded to 06500815)

$1.49

$

In Stock, only 3 left!

0

3

Gravely 09267151

Hinge, Footboard Left Hand

$

$

Not available

4

Gravely 09297253

Access Panel

$55.99

$

Usually ships in 4-12 days

0

5

Gravely 09297551

Bumper, Rear
(Superseded to 00361051)

$181.99

$

Usually ships in 4-12 days

0

6

Gravely 07412900

Screw, Tapping .38-16 x .50 Hex Washer Head (056)
(Superseded to 07400126)

Note: (056)

$1.49

$

In Stock, only 4 left!

0

6

Gravely 07412900

Screw, Tapping .38-16 x .50 Hex Washer Head (314)
(Superseded to 07400126)

Note: (314)

$1.49

$

In Stock, only 4 left!

0

7

Gravely 07533600

Bumper, Rubber

$14.99

$

In Stock, only 4 left!

0

8

Gravely 09297451

Seat Support

$86.99

$

Usually ships in 4-12 days

0

9

Gravely 09297353

Footrest Panel
(Superseded to 00298953)

$

$

Not available

10

Gravely 09267251

Hinge, Footboard Right Hand

$12.99

$

Usually ships in 4-12 days

0

11

Gravely 06223900

Bolt, Round Head Square Neck .38-16 x .75 Grade 5
(Superseded to 06200312)

$1.49

$

Usually ships in 4-12 days

0

12

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06220800

Bolt, Round Head Square Short Neck .31-18 x .75 Grade 5
(Superseded to 06200309)

$2.49

$

In Stock, Qty 9

0

14

Gravely 06514900

Nut, Push .312

$0.99

$

In Stock, Qty 13
