992315 (PM 144 Z) - Ariens Pro-Master 44" Zero-Turn Mower, 19hp Kawasaki (SN: 004000 & Above) Mounting Brackets And Rollers Parts Diagram

Pro-Master 44" Zero-Turn Mower, 19hp Kawasaki

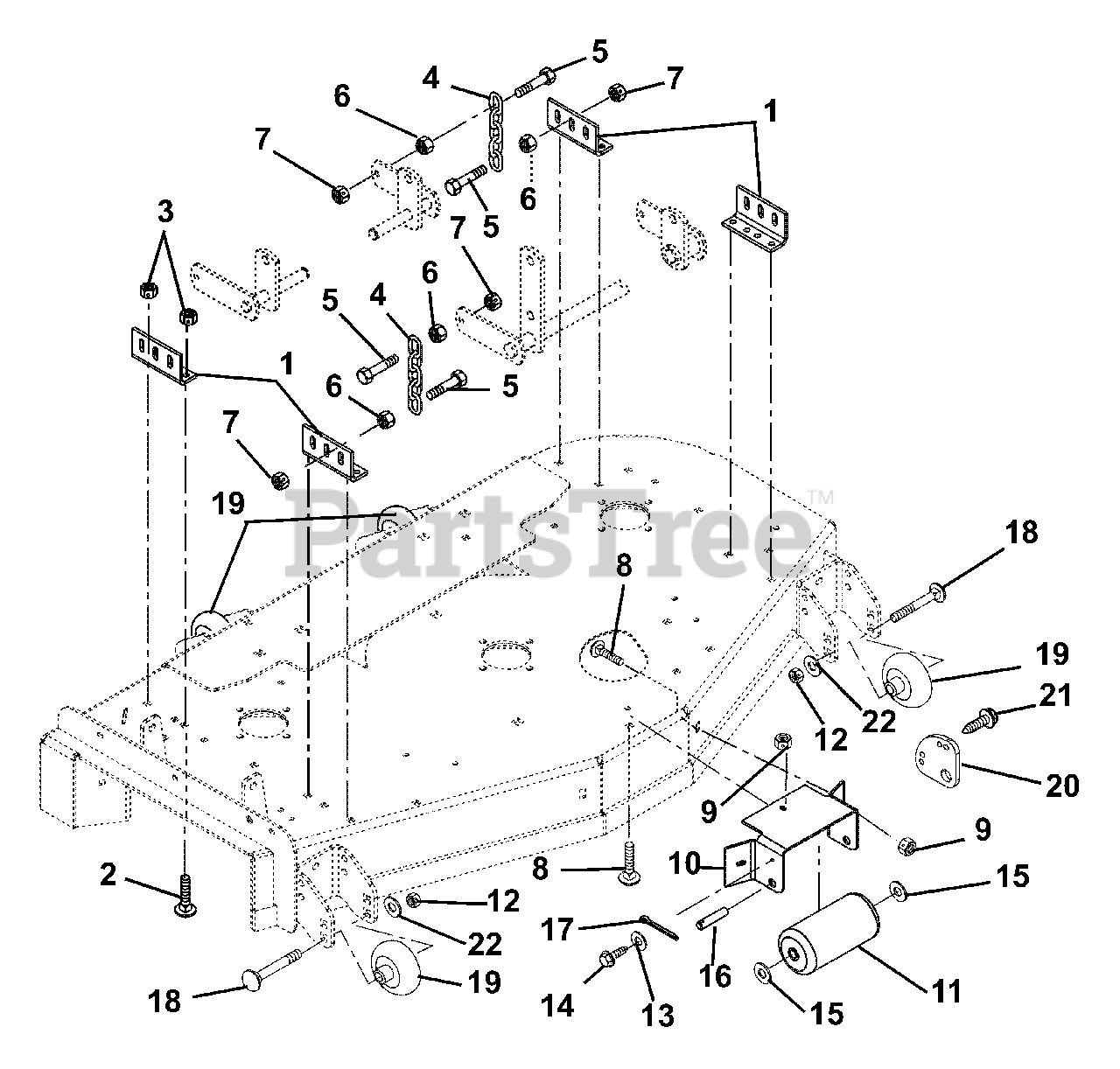

Mounting Brackets And Rollers Parts Diagram

  • Title

1

Ariens 09290153

MOWER MOUNTING BRACKET - RED

$30.99

$

Usually ships in 4-12 days

0

2

Ariens 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, Qty 8

0

3

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 09284700

CHAIN, LINK

$7.49

$

Usually ships in 4-12 days

0

5

Ariens 05900006

BLT-HEX M12X1.75X55 GR5 YZ

$3.99

$

Usually ships in 4-12 days

0

6

Ariens 06500003

NUT-SPNLK-FLG M12-1.75 YZ

$2.99

$

In Stock, only 1 left!

0

7

Ariens 06500004

NUT-LK-TOP-FLG M12-1.75 YZ

$2.99

$

Usually ships in 4-12 days

0

8

Ariens 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, Qty 8

0

9

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 04920853

BRACKET - ANTI-SCALP ROLLER

$127.99

$

Usually ships in 4-12 days

0

11

Ariens 09078100

ROLLER

$48.99

$

In Stock, only 2 left!

0

12

Ariens 06540600

@NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$2.99

$

In Stock, Qty 9

0

13

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 07414200

SCR-TAP .25-20X.75 HWH TR YWZ
(Superseded to 07400131)

$1.49

$

In Stock, Qty 9

0

15

Ariens 06442800

@WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

$2.99

$

In Stock, Qty 19

0

16

Ariens 09075300

PIN

$40.99

$

In Stock, only 2 left!

0

17

Ariens 06713100

@PIN-CTR .25X2.00 YWZC
(Superseded to 06700213)

$4.99

$

In Stock, only 2 left!

0

18

Ariens 06225900

BLT-RDHDSQNK .50-13X5.00 GR5YZ
(Superseded to 06200505)

$

$

Not available

19

Ariens 09253700

WHEEL, 3X5

$15.99

$

In Stock, Qty 10

0

20

Ariens 09290353

ANTI-SCALP WASHER - RED

$13.99

$

Usually ships in 4-12 days

0

21

Ariens 07401900

SCR-TAP.250-20X.62 HWH BLK ZC
(Superseded to 07410400)

$2.49

$

In Stock, only 2 left!

0

22

Ariens 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, Qty 20+

0
