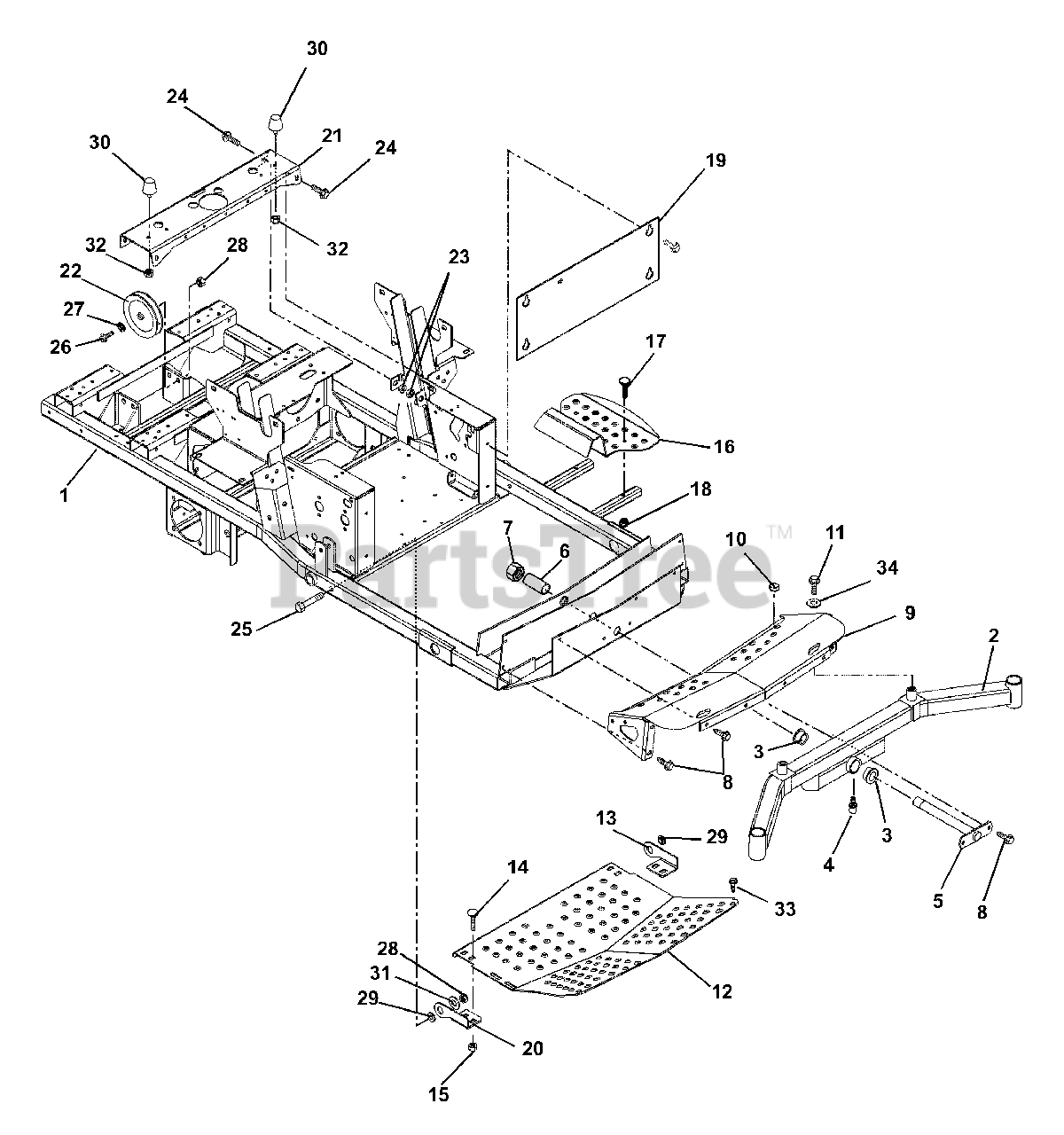

992316 (PM 260 Z) - Ariens Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu Diesel (SN: 001501 - 002000) Frame Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu Diesel

Frame Parts Diagram

  • Title

1

Ariens 09294951

WMT, LIQUID COOLED FRAME - BLK

$

$

Not available

2

Ariens 09263753

WMT, FRONT AXLE

$791.99

$

Usually ships in 4-12 days

0

3

Ariens 05520100

BSHG-FLG1.020X1.385X.75X1.75NY

$11.99

$

In Stock, Qty 20+

0

4

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

5

Ariens 09232000

PIN - AXLE

$70.99

$

In Stock, Qty 5

0

6

Ariens 09231900

SPACER 1.009 X 1.250 X 4.23

$22.99

$

In Stock, only 2 left!

0

7

Ariens 06543200

NUT-LK-NYL 1.0-14 YWZC

$10.99

$

In Stock, only 2 left!

0

8

Ariens 07415400

@SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

9

Ariens 09278053

WMT, AXLE COVER

$

$

Not available

10

Ariens 07516000

BUTTON BUMPER

$1.49

$

In Stock, Qty 6

0

11

Ariens 05975000

BLT-HEX .50-20X1.00 GR5 YWZC

$3.99

$

In Stock, only 2 left!

0

12

Ariens 09233353

PANEL - INSPECTION (RED)

$115.99

$

Usually ships in 4-12 days

0

13

Ariens 09267151

HINGE, FOOTBOARD LH

$

$

Not available

14

Ariens 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, only 3 left!

0

15

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 09231251

STEP, INGRESS (BLACK)

$

$

Not available

17

Ariens 06220200

@BLT-RDHDSQNK .31-18X1.75 G5YZ
(Superseded to 06200324)

$3.49

$

In Stock, Qty 10

0

18

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 09234053

PLATE - KICK (RED)
(Superseded to 00483153)

$79.99

$

Usually ships in 4-12 days

0

20

Ariens 09267251

HINGE, FOOTBOARD RH

$13.99

$

Usually ships in 4-12 days

0

21

Ariens 09275051

CHANNEL, CROSS (BLACK)

$64.99

$

Usually ships in 4-12 days

0

22

Ariens 07328000

PLY-V 6.0 X .500 ID DBL BRG.

$110.99

$

In Stock, Qty 8

0

23

Ariens 07053300

NUT-RTNR .375-16X.37

$3.99

$

In Stock, only 3 left!

0

24

Ariens 07049900

BLT-SERHFWH .375-16X1.0 YWZC

$2.99

$

Usually ships in 4-12 days

0

25

Ariens 05960000

@BLT-HEX .50-13X3.25 GR5 YWZC
(Superseded to 05901634)

$3.99

$

In Stock, Qty 8

0

26

Ariens 05961000

@BLT-HEX .50-13X2.25 GR5 YWZC
(Superseded to 05901835)

$3.99

$

In Stock, Qty 5

0

27

Ariens 06436600

WSHR-FL-STL .505X.880X.072 YWZ
(Superseded to 06401126)

$3.99

$

In Stock, Qty 20+

0

28

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

29

Ariens 05532100

BSHG-FLG .515X.750X.285X1.120

$

$

Not available

30

Ariens 07533000

BUMPER, RUBBER CONE,STUD MOUNT

$15.99

$

Usually ships in 4-12 days

0

31

Ariens 06442000

@WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.99

$

In Stock, Qty 20+

0

32

Ariens 06534600

@NUT-SPNLK-FLG .312-24 YWZC

$

$

Not available

33

Ariens 07414100

@SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

$3.99

$

In Stock, Qty 20+

0

34

Ariens 06441800

WSHR-FL-STL .518X2.0X.105 YWZC
(Superseded to 06401127)

$3.99

$

In Stock, only 2 left!

0
