992316 (PM 260H) - Gravely Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu, Rear Discharge (SN: 001000 - 001500) Deck, Discharge Chute And Baffles Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu, Rear Discharge

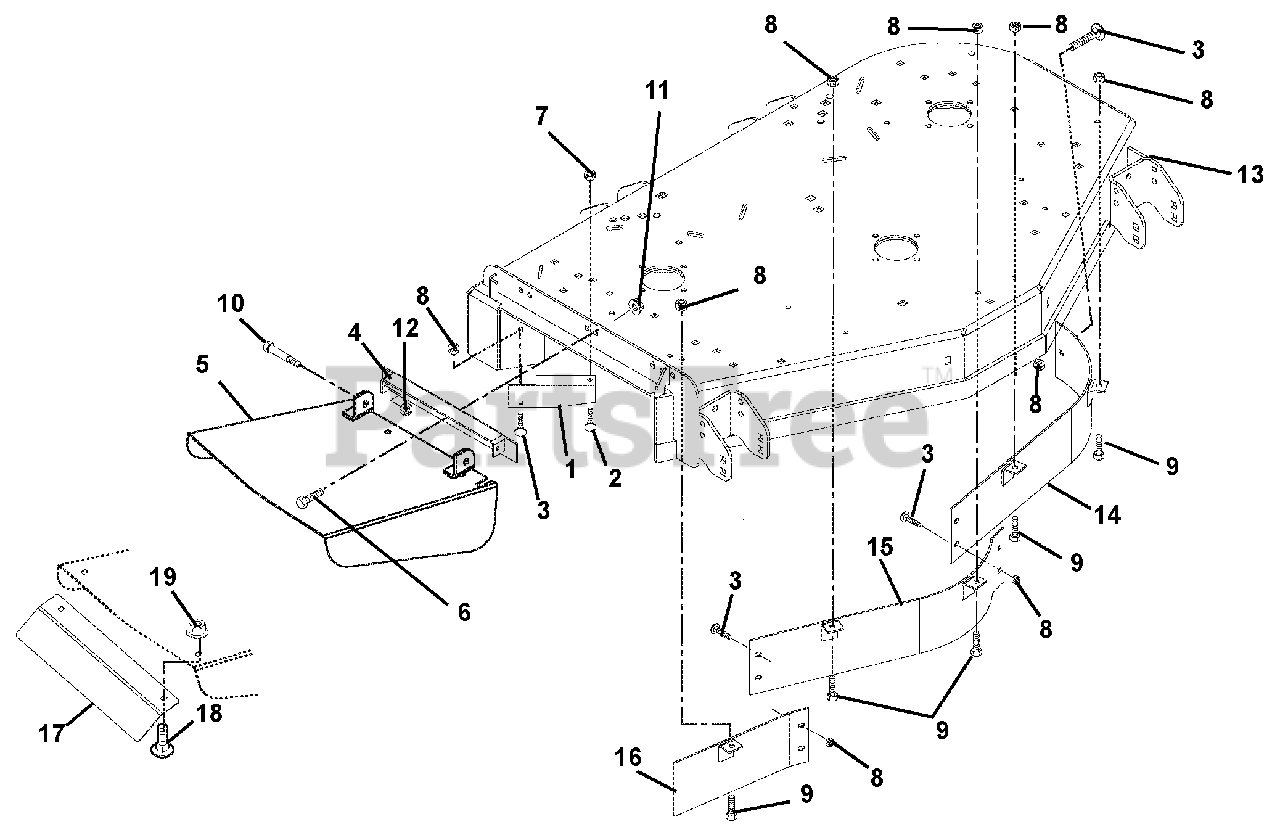

Deck, Discharge Chute And Baffles Parts Diagram

  • Title

1

Gravely 09238451

DEFLECTOR, 60" (BLACK)

$28.99

$

In Stock, only 2 left!

0

2

Gravely 06223900

BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$1.99

$

In Stock, Qty 10

0

3

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

4

Gravely 00253253

WMT, CHUTE BRKT

$92.99

$

Usually ships in 4-12 days

0

5

Gravely 09250653

WMT, DISCHARGE CHUTE 60"
(Superseded to 00198253)

$233.99

$

Usually ships in 4-12 days

0

6

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 07056500

BLT-SHLDR .38-16X.38 SKH
(Superseded to 07002030)

$6.49

$

In Stock, only 2 left!

0

11

Gravely 06534900

NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 09288253

60" 7 GA MOWER DECK - RED
(Superseded to 59228200)

$1793.99

$

Usually ships in 4-12 days

0

14

Gravely 09241651

BAFFLE - LEFT FRONT - 60"

$112.99

$

In Stock, only 2 left!

0

15

Gravely 09241751

BAFFLE - CENTER FRONT - 60"

$102.99

$

In Stock, Qty 5

0

16

Gravely 09241851

BAFFLE - RIGHT FRONT - 60"

$58.99

$

In Stock, Qty 8

0

17

Gravely 04931500

DEFLECTOR, CHUTE

$

$

Not available

18

Gravely 06223900

BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$1.99

$

In Stock, Qty 10

0

19

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0
