992316 (PM 260H) - Gravely Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu, Rear Discharge (SN: 001000 - 001500) Lift Valve And Cylinder Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu, Rear Discharge

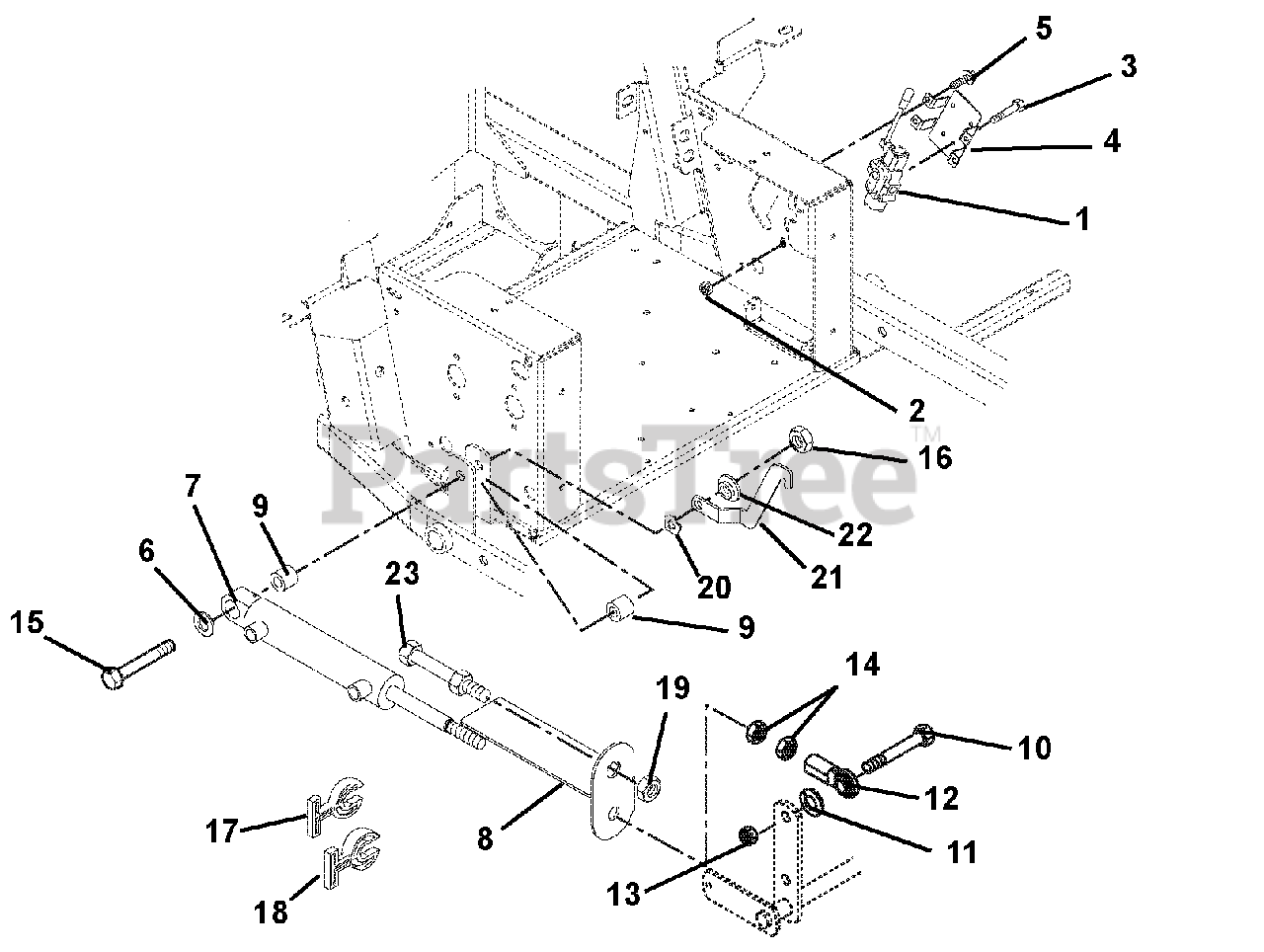

Lift Valve And Cylinder Parts Diagram

  • Title

1

Gravely 09265100

VALVE, HYDRAULIC-BONDIOLI
(Superseded to 03791700)

$

$

Not available

2

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 05952600

BLT-HEX .31-18X2.50 GR5 YWZC
(Superseded to 05901912)

$2.49

$

In Stock, Qty 18

0

4

Gravely 09290251

VALVE MOUNTING BRACKET - BLACK
(Superseded to 03791851)

$28.99

$

Usually ships in 4-12 days

0

5

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$2.49

$

In Stock, Qty 20+

0

6

Gravely 06445000

WSHR-FL-STL .515X1.625X.250 YZ

$6.99

$

In Stock, Qty 17

0

7

Gravely 09264800

CYLINDER, LIFT
(Superseded to 04864700)

$562.99

$

In Stock, only 1 left!

0

8

Gravely 00184551

CUT INDICATOR/GUARD - BLACK

$79.99

$

Usually ships in 4-12 days

0

9

Gravely 09215200

BUSHING, .516X1.000X1.050 LG

$37.99

$

Usually ships in 4-12 days

0

10

Gravely 05930700

BLT-HEX .62-11X2.25 YWZC GR8

$4.99

$

Usually ships in 4-12 days

0

11

Gravely 06309500

WSHR-LK .62X.156 REG YWZC

$2.99

$

In Stock, only 2 left!

0

12

Gravely 09221600

ROD END, 5/8 RH - FEMALE

$27.99

$

Usually ships in 4-12 days

0

13

Gravely 06535300

NUT-LK-CTR .62-11 YWZC

$3.49

$

In Stock, only 2 left!

0

14

Gravely 06539600

NUT-JAM .625-18 YWZC

$5.49

$

Usually ships in 4-12 days

0

15

Gravely 05960100

BLT-HEX .50-13X3.75 GR5 YWZC
(Superseded to 05901703)

$6.99

$

In Stock, only 1 left!

0

16

Gravely 06543600

NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$2.49

$

In Stock, Qty 20+

0

17

Gravely 09212200

STOP, CYLINDER .34 THK

$12.99

$

In Stock, Qty 10

0

18

Gravely 09212300

STOP, CYLINDER .680 THK

$12.99

$

In Stock, Qty 12

0

19

Gravely 06539900

NUT-JAM .75-16 YWZC

$4.99

$

In Stock, only 2 left!

0

20

Gravely 09252000

WASHER-WAVE .760X1.120X.080

$4.99

$

Usually ships in 4-12 days

0

21

Gravely 09296100

LATCH, FLOOR BOARD (L/C)

$

$

Not available

22

Gravely 05532100

BSHG-FLG .515X.750X.285X1.120

$

$

Not available

23

Gravely 09260800

POST

$

$

Not available
