992317 (PM 260 Z) - Ariens Pro-Master 60" Zero-Turn Mower, 31hp Daihatsu Diesel (SN: 000101 - 000999) Deck, Discharge Chute And Baffles Parts Diagram

Pro-Master 60" Zero-Turn Mower, 31hp Daihatsu Diesel

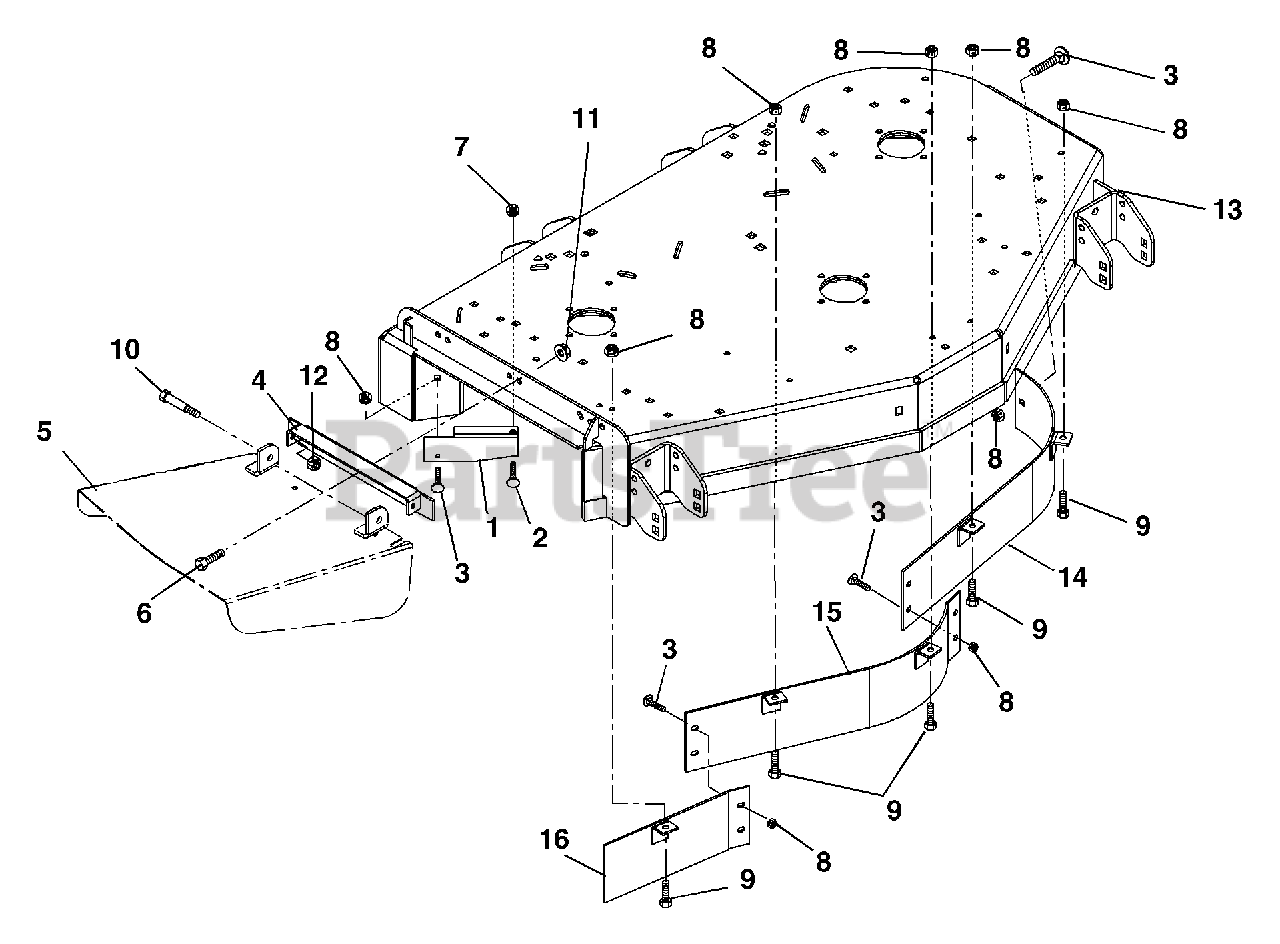

Deck, Discharge Chute And Baffles Parts Diagram

  • Title

1

Ariens 09238451

DEFLECTOR, 60" (BLACK)

$28.99

$

Usually ships in 4-12 days

0

2

Ariens 06223900

@BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$1.99

$

In Stock, only 4 left!

0

3

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

4

Ariens 09238353

WLDMT. DISCH. CHUTE BRKT (RED)
(Superseded to 00253253)

$92.99

$

Usually ships in 4-12 days

0

5

Ariens 09250653

WMT, DISCHARGE CHUTE 60"
(Superseded to 00198253)

$233.99

$

In Stock, only 1 left!

0

6

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

7

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

10

Ariens 07056500

BLT-SHLDR .38-16X.38 SKH
(Superseded to 07002030)

$6.49

$

In Stock, only 2 left!

0

11

Ariens 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.99

$

In Stock, Qty 20+

0

12

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 09288253

60" 7 GA MOWER DECK - RED
(Superseded to 59228200)

$1793.99

$

Usually ships in 4-12 days

0

14

Ariens 09241651

BAFFLE - LEFT FRONT - 60"

$112.99

$

In Stock, only 1 left!

0

15

Ariens 09241751

BAFFLE - CENTER FRONT - 60"

$102.99

$

In Stock, only 1 left!

0

16

Ariens 09241851

BAFFLE - RIGHT FRONT - 60"

$58.99

$

Usually ships in 4-12 days

0
